Parts for Mercury Marine Model 402, 40 HP (2 Cylinder) Carburetor Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 1368-7226A 1 | CARBURETOR ASSEMBLY (1 required per assembly) |
  |
1368-7226A 1 - Carburetor [ More info ] Unavailable |
|
  |
1368-7226A 4 - Carburetor [ More info ] Unavailable |
|
  |
1368-7226A 7 - Carburetor [ More info ] Unavailable |
|
  |
1368-7226A10 - Carburetor [ More info ] Unavailable |
|
  |
|
1368-7226A19 - Carburetor [ More info ] Unavailable |
| #2 | 1395-5353 | FLOAT ASSEMBLY (1 required per assembly) |
  |
1395-5353 - FLOAT Note: Priced Individually [ More info ] Unavailable |
|
  |
1395-8983 - Float Assembly [ More info ] Unavailable |
|
  |
|
1395-8673 - Float [ More info ]
|
  |
|
18-7208 - Float 1395-8983, 1359-8673 [ More info ]
|
| #3 | PIN, FLOAT LEVER PINION (2 required per assembly) | |
| #6 | 1395-4555 | INLET NEEDLE, SEAT AND GASKET (1 required per assembly) |
  |
1395-4555 - Inlet Needle - Priced Individually [ More info ] Unavailable |
|
  |
1395-8318 - Inlet Valve [ More info ] Unavailable |
|
  |
|
1395-8318 1 - Valve Seat Kit [ More info ]
|
  |
|
18-7061 - Needle And Seat 1395-8318 [ More info ]
|
| #10 | 1395-5680 | COVER, FLOAT BOWL (1 required per assembly) |
  |
|
1395-5680 - Cover, NLA-New Take off [ More info ] Unavailable |
| #11 | 1395-5733 | JET, BOWL VENT (.092) (1 required per assembly) |
  |
|
1395-5733 - Jet -.092 [ More info ]
|
| #12 | 1395-5734 | HOSE, ECONOMIZER (1 required per assembly) |
  |
|
1395-5734 - Econimizer Hose [ More info ] Unavailable |
| #13 | 10-52195 | SCREW, FLOAT BOWL COVER (1 required per assembly) |
  |
|
10-52195 - Screw - Priced Individually, NLA [ More info ] Unavailable |
| #14 | 1395-4804 | SCREW, FLOAT BOWL COVER (1 required per assembly) |
  |
|
1395-4804 - Screw, NLA [ More info ]
|
| #15 | 13-26995 | LOCKWASHER, FLOAT BOWL COVER SCREW (2 required per assembly) |
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable |
| #16 | 1395-4805 | SCREEN, FILTER (1 required per assembly) |
  |
|
1395-4805 - Filter, NLA [ More info ]
|
| #17 | 74371 | LEVER, THROTTLE (1 required per assembly) |
  |
|
74371 - Lever [ More info ] Unavailable |
| #18 | 10-20847 | SCREW, THROTTLE STOP LEVER (1 required per assembly) |
  |
|
10-20847 - 10-20847 - SCREW [ More info ] Unavailable Replaced by 1395-6027 |
  |
|
1395-6027 - Screw [ More info ] Unavailable |
| #19 | 1399-3527 | SHAFT, THROTTLE (1 required per assembly) |
  |
1399-3527 - Throttle Shaft [ More info ] Unavailable |
|
  |
|
1395-7942 - Shaft, NLA [ More info ] Unavailable |
| #21 | 1395-4540 | SCREW, BODY (IDLE TUBE) (1 required per assembly) |
  |
|
1395-4540 - Plug Screw, NLA [ More info ] Unavailable |
| #22 | 1399-3528 | SHUTTER, THROTTLE (1 required per assembly) |
  |
1399-3528 - THROTTLE SHUTTER [ More info ] Unavailable |
|
  |
|
1395-9017 - Shutter, NLA [ More info ] Unavailable |

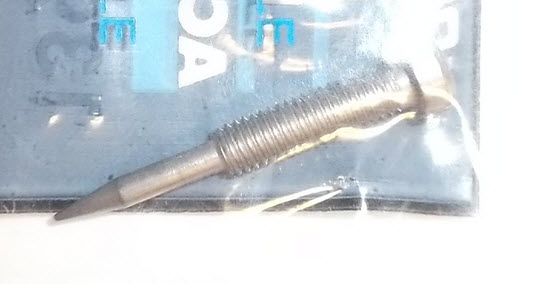

| #25 | 1399-3515 | SCREW, IDLE ADJUSTMENT (1 required per assembly) |
  |
|
1399-3515 - Screw - Idle Adj, NLA [ More info ]
|
| #27 | 1395-4542 | SCREW, PLUG - MAIN NOZZLE (1 required per assembly) |
  |
|
1395-4542 - Plug Screw , NLA [ More info ] Unavailable |
| #28 | 1399-3519 | JET, MAIN FUEL (.080) (OPT required per assembly) |
  |
1399-3519 - JET .080 [ More info ] Unavailable |
|
  |
|
1395-6201 - Jet -.080 - Priced Individually [ More info ]
|
| #28 | 1399-3520 | JET, MAIN FUEL (.0785) - STANDARD (1 required per assembly) |
  |
|
1399-3520 - Jet .0785, NLA [ More info ]
|
| #28 | 1399-3796 | JET, MAIN FUEL (.076) (OPT required per assembly) |
  |
|
1399-3796 - Jet -.076 [ More info ] Unavailable |
| #28 | 1399-3794 | JET, MAIN FUEL (.074) (OPT required per assembly) |
  |
|
1399-3794 - Jet -.074 [ More info ]
|
| #29 | 1395-4541 | SCREW, PLUG - MAIN FUEL JET CHANNEL (1 required per assembly) |
  |
|
1395-4541 - Plug Screw - Priced Individually [ More info ]
|
| #32 | 1395-4543 | SCREW, BODY CHANNEL (1 required per assembly) |
  |
|
1395-4543 - Screw, NLA [ More info ] Unavailable |
| #33 | 1395-4808 | GASKET AND PACKING SET (1 PER CARBURETOR) (1 required per assembly) |
  |
1395-4808 - Carburetor Gasket Set [ More info ] Unavailable |
|
  |
|
1395-879194024 - Gasket Kit [ More info ]
|
  |
|
18-7006-1 - Carburetor Gasket Set, 1399-1717 and 1399-2015 [ More info ]
|
  |
|
1300-00135 - Carburetor Gasket Kit [ More info ]
|
| #33 | 1395-7292 | REPAIR PARTS KIT (1PER CARBURETOR) (1 required per assembly) |
  |
1395-7292 - Carburetor Repair Kit [ More info ] Unavailable |
|
  |
|
1395-5109 1 - Carburetor Repair Kit [ More info ]
|
  |
|
18-97352 - Carb Kit, Mercury 1395-51091 [ More info ]
|
  |
|
1300-36001 - Carburetor Repair Kit, MERCURY 1395-51091 [ More info ]
|
| #34 | 27-48164 | GASKET, CARBURETOR FLANGE (1 required per assembly) |
  |
27-48164 - Carburetor Flange Gakset [ More info ] Unavailable |
|
  |
|
27-48164 1 - Gasket - Priced Individually [ More info ]
|
| #35 | 11-64809 | NUT, CARBURETOR MOUNTING STUD (2 required per assembly) |
  |
|
11-64809 - Nut (5/16 In.) [ More info ] Unavailable |
