Parts for Mercury Marine 40 HP Jet Steerig Handle Kit

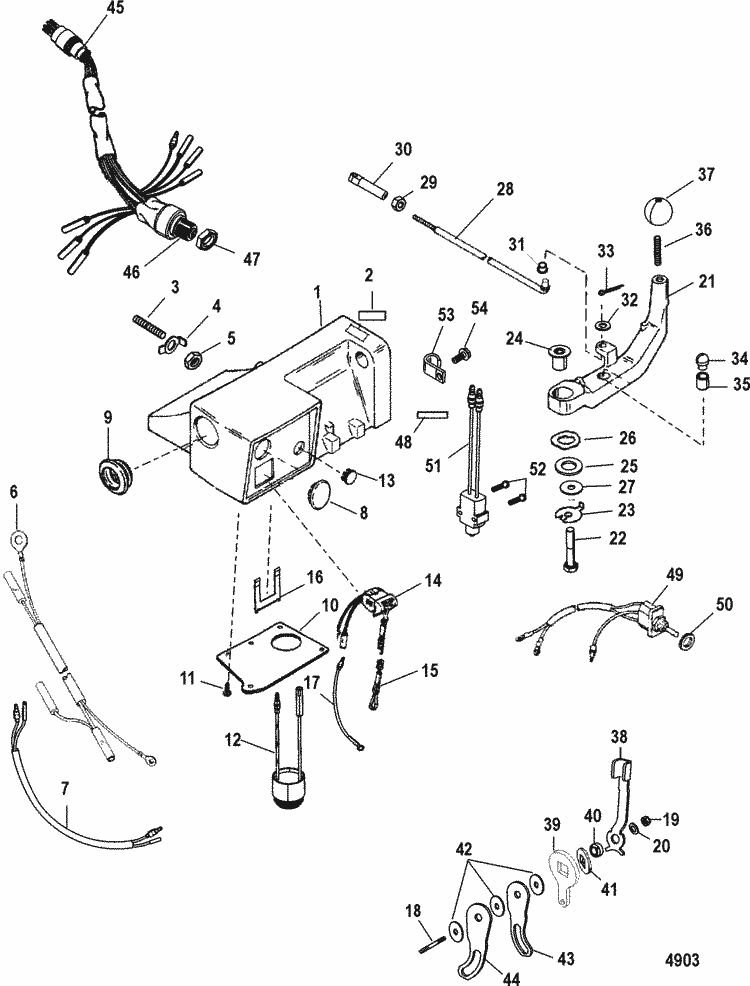

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 816366A27 | STEERING HANDLE KIT (1 required per assembly) |
  |
816366A27 - Steering Handle Kit [ More info ] Unavailable |
|
  |
|
816366A48 - Steering Handle Kit [ More info ]
|
| #1 | 816366T 3 | BRACKET (1 required per assembly) |
  |
|
816366T 3 - Bracket - Handle -bl [ More info ]
|
| #2 | NSS | NOT SOLD SEPARATE, Decal-Shift (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #3 | 16-815802 | STUD, (M10 x 150 x 58) (2 required per assembly) |
  |
|
16-815802 - Stud [ More info ]
|
| #4 | 14-815806 | TAB WASHER (2 required per assembly) |
  |
|
14-815806 - Tab Washer [ More info ]
|
| #5 | 11-40125100 | NUT, (M10) (2 required per assembly) |
  |
|
11-40125100 - Nut (M10) [ More info ]
|
| #6 | 84-815851A 2 | HARNESS ASSEMBLY, Stop (1 required per assembly) (Manual) |
  |
|
84-815851A 2 - Harness Assembly - Stop [ More info ]
|
| #7 | 84-821028A 2 | CABLE ASSEMBLY (1 required per assembly) (Manual) |
  |
|
84-821028A 2 - Cable Assembly [ More info ]
|
| #8 | 815803 | PLUG (1 required per assembly) (Manual) |
  |
|
|
| #9 | 12105 1 | GROMMET (1 required per assembly) |
  |
|
12105 1 - Grommet [ More info ]
|
| #10 | 815804 1 | COVER (1 required per assembly) |
  |
|
815804 1 - Cover -5 Hole [ More info ]
|
| #11 | 10-878608 | SCREW, (#10-16 x .500) (4 required per assembly) |
  |
|
10-878608 - Screw [ More info ]
|
| #12 | 816051A 2 | HORN ASSEMBLY (1 required per assembly) |
  |
|
816051A 2 - Horn Assembly [ More info ]
|
| #13 | 19-889730 | PLUG (1 required per assembly) (Manual) |
  |
|
19-889730 - Plug [ More info ]
|
| #14 | 87-11083A 4 | SWITCH ASSEMBLY, Stop (1 required per assembly) (Power Trim) |
  |
|
87-11083A 4 - Switch Assembly [ More info ]
|
| #15 | 15920Q54 | LANYARD ASSEMBLY (1 required per assembly) (Power Trim) |
  |
|
15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable |
| #16 | 12044 1 | RETAINER, Brass (1 required per assembly) |
  |
12044 1 - Retainer [ More info ] Unavailable |
|
  |
|
8M0032846 - Brass Retainer [ More info ]
|
| #17 | 84-11149A 3 | CABLE ASSEMBLY (1 required per assembly) |
  |
|
84-11149A 3 - Cable Assembly [ More info ]
|
| #18 | 16-816560 | STUD, (M10 x 2.12) (1 required per assembly) |
  |
16-816560 - Stud [ More info ] Unavailable |
|
  |
|
16-8M0034440 - Stud [ More info ]
|
| #19 | 11-40063 6 | NUT (1 required per assembly) |
  |
|
11-40063 6 - Nut [ More info ]
|
| #20 | 12-823933 | WASHER, (.405 x .760 x .060) Delrin (1 required per assembly) |
  |
|
12-823933 - Washer, (.405 X .760 X .060) [ More info ]
|
| #21 | 816367F 5 | LEVER (1 required per assembly) |
  |
|
816367F 5 - Shift Lever - Black [ More info ] Unavailable |
| #22 | 10-40003 57 | SCREW, (M8 x 45) (1 required per assembly) |
  |
|
10-40003 57 - Screw [ More info ]
|
| #23 | 14-815805 1 | TAB WASHER (1 required per assembly) |
  |
|
14-815805 1 - Tab Washer [ More info ]
|
| #24 | 23-815983 1 | BUSHING (1 required per assembly) |
  |
|
23-815983 1 - Bushing [ More info ]
|
| #25 | 12-824610 | WASHER, Plastic (1 required per assembly) |
  |
|
12-824610 - Washer, Plastic [ More info ]
|
| #26 | 12-823970 | WASHER (1 required per assembly) |
  |
|
12-823970 - Washer [ More info ]
|
| #27 | 12-814803 | WASHER (1 required per assembly) |
  |
|
12-814803 - Washer [ More info ]
|
| #28 | 49563 6 | SHIFT ROD (1 required per assembly) |
  |
|
49563 6 - Shift Rod [ More info ]
|
| #29 | 11-64015 | NUT, (.250-20) (1 required per assembly) |
  |
|
11-64015 - Nut (1 /4-20) [ More info ]
|
| #30 | 48419 | ROD END (1 required per assembly) |
  |
48419 - Rod End [ More info ] Unavailable |
|
  |
|
48419T - ROD END-2.16 IN [ More info ]
|
| #31 | 23-26856 | BUSHING (1 required per assembly) |
  |
|
23-26856 - Bushing [ More info ]
|
| #32 | 12-35950 | WASHER, (.273 x .437 x .031) Stainless Steel (1 required per assembly) |
  |
|
12-35950 - Washer, (.273 X .437 X .031) Stainless Steel [ More info ]
|
| #33 | 18-25191 | COTTER PIN (1 required per assembly) |
  |
|
18-25191 - Cotter Pin - Priced Individually [ More info ]
|
| #34 | 12016A 2 | DETENT/SPRING KIT (1 required per assembly) |
  |
|
12016A 2 - Detent/Spring Kit [ More info ] Unavailable |
| #36 | 16-58152 | STUD, (.375-24 x 1.125) (1 required per assembly) |
  |
16-58152 - Stud [ More info ] Unavailable |
|
  |
|
16-8M0034452 - Stud [ More info ]
|
| #37 | 98530 | KNOB (1 required per assembly) |
  |
|
98530 - Knob [ More info ] Unavailable |
| #38 | 816416A 3 | LEVER KIT (1 required per assembly) |
  |
|
816416A 3 - Lever Kit -co Pilot [ More info ]
|
| #40 | 816564 | DRIVER (1 required per assembly) |
  |
|
|
| #41 | 12-816576 | WASHER (1 required per assembly) |
  |
|
12-816576 - Washer [ More info ]
|
| #42 | 816562 1 | DISC (3 required per assembly) |
  |
|
816562 1 - Disc - Brake [ More info ]
|
| #43 | 816413 1 | ARM (TOP) (1 required per assembly) |
  |
|
816413 1 - Arm - Top -co Pilot [ More info ]
|
| #44 | 816414 1 | ARM (BOTTOM) (1 required per assembly) |
  |
|
816414 1 - Arm - Bot-co Pilot [ More info ]
|
| #45 | 84-12649A 5 | HARNESS ASSEMBLY (1 required per assembly) |
  |
|
84-12649A 5 - Harness Assembly [ More info ]
|
| #46 | 87-88107A 5 | SWITCH KIT, Key (1 required per assembly) (For Key -Reference Key List) |
  |
|
87-88107A 5 - Ignition Switch Kit [ More info ]
|
  |
|
MP52000 - Ignition Switch, 87-88107A5 [ More info ]
|
  |
|
MP41000 - Ignition Switch, 3 Position, Push to Choke, 87-88107 [ More info ]
|
| #47 | 11-879755 | NUT, Special - Black Nylon (1 required per assembly) (Black Nylon) |
  |
|
11-879755 - Nut, (black Nylon) [ More info ]
|
| #49 | 87-14645A 4 | TRIM SWITCH (1 required per assembly) (Power Trim) |
  |
|
87-14645A 4 - Trim Switch Kit [ More info ]
|
| #50 | 49440 | NUT, (.468-32) (2 required per assembly) (Power Trim) |
  |
|
49440 - Lock Nut [ More info ]
|
| #51 | 87-813960A 3 | SWITCH (1 required per assembly) (Power Trim) |
  |
|
87-813960A 3 - Switch Assembly [ More info ]
|
  |
|
878M0052927 - Switch Assembly [ More info ]
|
| #52 | 10-12110 | SCREW, (#6-32 x .750) (2 required per assembly) (Power Trim) |
  |
|
10-12110 - Screw [ More info ]
|
| #53 | 54-64855 2 | CLIP (1 required per assembly) |
  |
|
54-64855 2 - Clamp [ More info ]
|
| #NS | 89491 1 | KEY, Ignition (1A) (AR required per assembly) |
  |
|
89491 1 - Key 1A - Priced Individually [ More info ]
|
| #NS | 89491 2 | KEY, Ignition (1B) (AR required per assembly) |
  |
|
89491 2 - Key 1B - Priced Individually [ More info ]
|
| #NS | 89491 3 | KEY, Ignition (1C) (AR required per assembly) |
  |
|
89491 3 - Key 1C - Priced Individually [ More info ]
|
| #NS | 89491 4 | KEY, Ignition (1D) (AR required per assembly) |
  |
|
89491 4 - Key 1D - Priced Individually [ More info ]
|
| #NS | 89491 5 | KEY, Ignition (1E) (AR required per assembly) |
  |
|
89491 5 - Key 1E - Priced Individually [ More info ]
|
| #NS | 89491 6 | KEY, Ignition (1F) (AR required per assembly) |
  |
|
89491 6 - Key 1F - Priced Individually [ More info ]
|
| #NS | 89491 7 | KEY, Ignition (2A) (AR required per assembly) |
  |
|
89491 7 - Key 2A - Priced Individually [ More info ]
|
| #NS | 89491 8 | KEY, Ignition (2B) (AR required per assembly) |
  |
|
89491 8 - Key 2B - Priced Individually [ More info ]
|
| #NS | 89491 9 | KEY, Ignition (2C) (AR required per assembly) |
  |
|
89491 9 - Key 2C - Priced Individually [ More info ]
|
| #NS | 89491 10 | KEY, Ignition (2D) (AR required per assembly) |
  |
|
89491 10 - Key 2D - Priced Individually [ More info ]
|
| #NS | 89491 11 | KEY, Ignition (2E) (AR required per assembly) |
  |
|
89491 11 - Key 2E - Priced Individually [ More info ]
|
| #NS | 89491 12 | KEY, Ignition (2F) (AR required per assembly) |
  |
|
89491 12 - Key 2F - Priced Individually [ More info ]
|
