Parts for Mercury Marine 40 (International) Remote Control Components

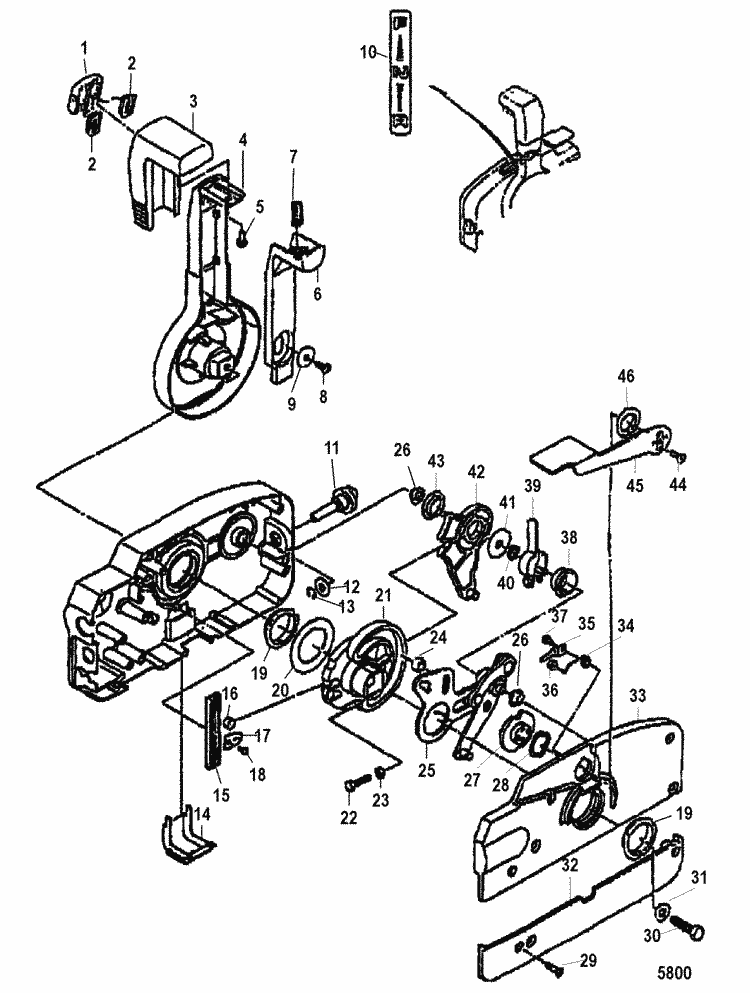

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 802616A 1 | SINGLE REMOTE CONTROL (1 required per assembly) |
  |
|
802616A 1 - Remote Control [ More info ] Unavailable |
| #1 | 802977 | CAP (1 required per assembly) |
  |
|
802977 - CAP [ More info ] Unavailable |
| #2 | 19-802978 | PLUG (2 required per assembly) |
  |
|
19-802978 - PLUG [ More info ] Unavailable |
| #3 | 802974 | GRIP (1 required per assembly) |
  |
|
802974 - GRIP [ More info ] Unavailable |
| #4 | 802973 | LEVER, Control (1 required per assembly) |
  |
|
802973 - Control Lever [ More info ]
|
| #5 | 10-16122 | SCREW (1 required per assembly) |
  |
10-16122 - Screw [ More info ] Unavailable |
|
  |
|
10-823042067 - Screw [ More info ]
|
| #6 | 802975 | NEUTRAL LOCK ARM (1 required per assembly) |
  |
|
802975 - NEUTRAL LOCK ARM [ More info ] Unavailable |
| #7 | 24-802976 | SPRING (1 required per assembly) |
  |
|
24-802976 - SPRING [ More info ] Unavailable |
| #9 | 12-802965 1 | WASHER (1 required per assembly) |
  |
|
12-802965 1 - Washer [ More info ]
|
| #10 | 37-802987 | DECAL (1 required per assembly) |
  |
|
37-802987 - DECAL [ More info ] Unavailable |
| #11 | 10-802986 | SCREW, Adjusting (1 required per assembly) |
  |
|
10-802986 - SCREW Adjusting [ More info ] Unavailable |
| #12 | 12-802965 2 | WASHER (1 required per assembly) |
  |
|
12-802965 2 - WASHER [ More info ] Unavailable |
| #13 | 53-16057 2 | E RING (1 required per assembly) |
  |
|
53-16057 2 - E Ring [ More info ]
|
| #14 | 802985 | COVER (1 required per assembly) |
  |
|
802985 - Cover [ More info ] Unavailable |
| #15 | 802971 | DETENT PLATE (5 required per assembly) |
  |
|
802971 - DETENT PLATE [ More info ] Unavailable |
| #16 | 802969 1 | ROLLER (1 required per assembly) |
  |
|
802969 1 - ROLLER [ More info ] Unavailable |
| #17 | 802972 | RETAINER (1 required per assembly) |
  |
|
802972 - RETAINER [ More info ] Unavailable |
| #19 | 23-802963 3 | BUSHING (2 required per assembly) |
  |
|
23-802963 3 - BUSHING [ More info ] Unavailable |
| #20 | 802968 | THRUST PLATE (1 required per assembly) |
  |
|
802968 - THRUST PLATE [ More info ] Unavailable |
| #21 | 802967 | GEAR, Drive (1 required per assembly) |
  |
|
802967 - GEAR Drive [ More info ] Unavailable |
| #22 | 10-17174 1 | BOLT (1 required per assembly) |
  |
|
10-17174 1 - BOLT [ More info ] Unavailable |
| #23 | 11-16081 | NUT, Stainless Steel (1 required per assembly) |
  |
|
11-16081 - Nut, Stainless Steel [ More info ]
|
| #24 | 802969 | ROLLER (1 required per assembly) |
  |
|
802969 - ROLLER [ More info ] Unavailable |
| #25 | 802970 | ARM, Throttle (1 required per assembly) |
  |
|
802970 - 802970 - ARM Throttle [ More info ] Unavailable Replaced by -8M0135304 |
  |
|
8M0135304 - Throttle Arm [ More info ]
|
| #26 | 23-802963 1 | BUSHING (2 required per assembly) |
  |
|
23-802963 1 - BUSHING [ More info ] Unavailable |
| #27 | 802982 | DRUM (1 required per assembly) |
  |
|
802982 - DRUM [ More info ] Unavailable |
| #28 | 13-802966 1 | WAVE WASHER (1 required per assembly) |
  |
|
13-802966 1 - WAVE WASHER [ More info ] Unavailable |
| #29 | 10-95386 1 | SCREW (5 required per assembly) |
  |
|
10-95386 1 - SCREW [ More info ] Unavailable |
| #30 | 10-802979 | BOLT (1 required per assembly) |
  |
|
10-802979 - BOLT [ More info ] Unavailable |
| #31 | 12-16192 | WASHER (1 required per assembly) |
  |
|
12-16192 - Washer [ More info ]
|
| #32 | 802984 | REAR PANEL (1 required per assembly) |
  |
|
802984 - REAR PANEL [ More info ] Unavailable |
| #33 | 802980 | HOUSING, Rear (1 required per assembly) |
  |
|
802980 - HOUSING Rear [ More info ] Unavailable |
| #34 | 24-802976 1 | SPRING (1 required per assembly) |
  |
|
24-802976 1 - SPRING [ More info ] Unavailable |
| #35 | 802983 | RETAINER (1 required per assembly) |
  |
|
802983 - RETAINER [ More info ] Unavailable |
| #36 | 802969 2 | ROLLER (1 required per assembly) |
  |
|
802969 2 - ROLLER [ More info ] Unavailable |
| #37 | 10-16334 1 | SCREW (1 required per assembly) |
  |
|
10-16334 1 - SCREW [ More info ] Unavailable |
| #38 | 23-802963 2 | BUSHING (1 required per assembly) |
  |
|
23-802963 2 - BUSHING [ More info ] Unavailable |
| #39 | 802964 | FRICTION ARM, Throttle (1 required per assembly) |
  |
|
802964 - FRICTION ARM Thro [ More info ] Unavailable |
| #40 | 13-802966 | WAVE WASHER (1 required per assembly) |
  |
|
13-802966 - WAVE WASHER [ More info ] Unavailable |
| #41 | 12-802965 | WASHER (1 required per assembly) |
  |
|
12-802965 - WASHER [ More info ] Unavailable |
| #42 | 802962 | SHIFT GEAR (1 required per assembly) |
  |
|
802962 - SHIFT GEAR [ More info ] Unavailable |
| #43 | 23-802963 | BUSHING (1 required per assembly) |
  |
|
23-802963 - BUSHING [ More info ] Unavailable |
| #44 | 10-95386 | BOLT (2 required per assembly) |
  |
|
10-95386 - Screw [ More info ] Unavailable |
| #45 | 802981 | LEVER (1 required per assembly) |
  |
|
802981 - 802981 - LEVER [ More info ] Unavailable Replaced by -8M0085508 |
  |
|
8M0085508 - Lever [ More info ]
|
| #46 | 23-802963 4 | BUSHING (1 required per assembly) |
  |
|
23-802963 4 - BUSHING [ More info ] Unavailable |
