Parts for Mercury Marine 40 (International) Recoil Starter

Revise Search: All Models > 40 (International) > 0N056165 & Up > Recoil Starter

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

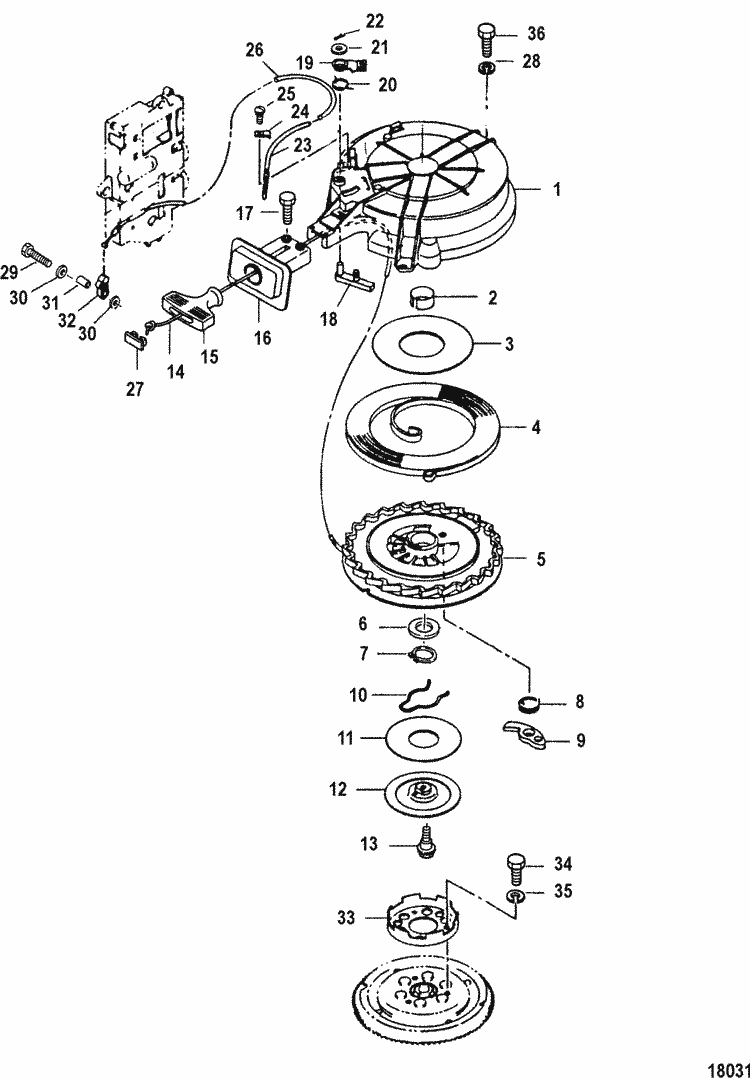

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	804021A 1	STARTER ASSEMBLY, Recoil (1 required per assembly)
		804021A 1 - 804021A 1 - STARTER ASSEMBLY [ More info ] Unavailable Replaced by -804021T01
		804021T01 - Starter Assembly [ More info ] Unavailable
		8M0225922 - RECOIL ASSY-START [ More info ] Unavailable
#2	23-851858 3	BUSHING (1 required per assembly)
		23-851858 3 - Bushing [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#3	804026	SLIDING PLATE (1 required per assembly)
		804026 - Sliding Plate [ More info ] $13.19 Available to Order: Shipping delay up to 10 days.
#4	24-804024	SPRING, Starter (1 required per assembly)
		24-804024 - Spring, Starter [ More info ] $51.49 Available to Order: Shipping delay up to 10 days.
#5	804022	REEL (1 required per assembly)
		804022 - REEL [ More info ] $130.99 Available to Order: Shipping delay up to 10 days.
#6	12-95392 12	WASHER (1 required per assembly)
		12-95392 12 - WASHER [ More info ] Unavailable
#7	53-804027	C RING (1 required per assembly)
		53-804027 - C Ring [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#8	24-804024 2	SPRING, Return (1 required per assembly)
		24-804024 2 - Spring [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#9	804023	RATCHET (1 required per assembly)
		804023 - Ratchet [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#10	24-804024 1	SPRING, Friction (1 required per assembly)
		24-804024 1 - Spring [ More info ] $10.39 Available to Order: Shipping delay up to 10 days.
#11	804026 1	SLIDING PLATE (1 required per assembly)
		804026 1 - Sliding Plate [ More info ] $6.40 Available to Order: Shipping delay up to 10 days.
#12	804025	FRICTION PLATE (1 required per assembly)
		804025 - Friction Plate [ More info ] $31.59 Available to Order: Shipping delay up to 10 days.
#13	10-16263 7	BOLT (1 required per assembly)
		10-16263 7 - Bolt [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#14	50-804028	ROPE, Starter (1 required per assembly)
		50-804028 - Starter Rope [ More info ] $16.49 Available to Order: Shipping delay up to 10 days.
#15	804029	HANDLE, Starter (1 required per assembly)
		804029 - Handle [ More info ] $18.69 Available to Order: Shipping delay up to 10 days.
#16	804030	GUIDE (1 required per assembly)
		804030 - 804030 - GUIDE [ More info ] Unavailable Replaced by -8M0054758
		8M0054758 - GUIDE [ More info ] Unavailable
#18	804031	STOPPER, Reel (1 required per assembly)
		804031 - Stopper-REEL [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#19	804032	ARM, Stopper (1 required per assembly)
		804032 - Arm-Stopper [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#20	24-804024 3	SPRING, Stopper (1 required per assembly)
		24-804024 3 - Spring [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#21	12-95392 13	WASHER (1 required per assembly)
		12-95392 13 - WASHER [ More info ] Unavailable
#22	18-815026 11	COTTER PIN (1 required per assembly)
		18-815026 11 - Cotter Pin [ More info ] $0.50 Available to Order: Shipping delay up to 10 days.
#23	84-853740 13	WIRE (1 required per assembly)
		8485374013 - Wire [ More info ] $58.49 Available to Order: Shipping delay up to 10 days.
#24	804033	HOLDER, Cable (1 required per assembly)
		804033 - Holder-Cable [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#25	10-804034	SCREW (1 required per assembly)
		10-804034 - Screw [ More info ] $0.30 Available to Order: Shipping delay up to 10 days.
#26	23-811368 3	SLEEVE (1 required per assembly)
		23-811368 3 - Sleeve [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#27	853755002	CAP, Starter Handle (1 required per assembly)
		853755002 - Cap [ More info ] $14.49 Available to Order: Shipping delay up to 10 days.
#28	13-40025 6	LOCKWASHER, (M6) (3 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#30	12-16826	WASHER, Stainless Steel (2 required per assembly)
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 1 In Stock.
#31	23-95286 24	COLLAR, (9.3 mm) (1 required per assembly)
		23-95286 24 - COLLAR [ More info ] Unavailable
		23-8M0021168 - Spacer [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#32	804036	LOCK ARM, Starter (1 required per assembly)
		804036 - Arm-Starter Lock [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#33	804035	PULLEY, Starter (1 required per assembly)
		804035 - Starter Pulley [ More info ] Unavailable
		8M0129216 - Starter Pulley [ More info ] Unavailable
		8M0181582 - STARTER PULLEY [ More info ] Unavailable
		8M0192166 - 8M0192166 - PULLEY STARTER [ More info ] Unavailable Replaced by -8M0231220
		8M0231220 - 8M0231220 - PULLEY STARTER [ More info ] Unavailable Replaced by -8M0231222
		8M0231222 - STARTER PULLEY NLA [ More info ] Unavailable
#34	10-16830 7	BOLT (3 required per assembly)
		10-16830 7 - Bolt [ More info ] $2.19 Available to Order: Shipping delay up to 10 days.
#35	13-17025	LOCKWASHER (3 required per assembly)
		13-17025 - LockWasher, NLA [ More info ] $2.19 $0.45 10+ In Stock.
#36	10-40003 30	SCREW, (M6 x 25) (3 required per assembly)
		10-40003 30 - Screw - Priced Individually [ More info ] $2.77 10+ In Stock.
