Parts for Mercury Marine 40 HP EFI (4 Cylinder) (4-Stroke) Steering Arm

Revise Search: All Models > 40 HP EFI (4 Cylinder) (4-Stroke) > 1C000001 - 1C050251 (USA) > Steering Arm

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

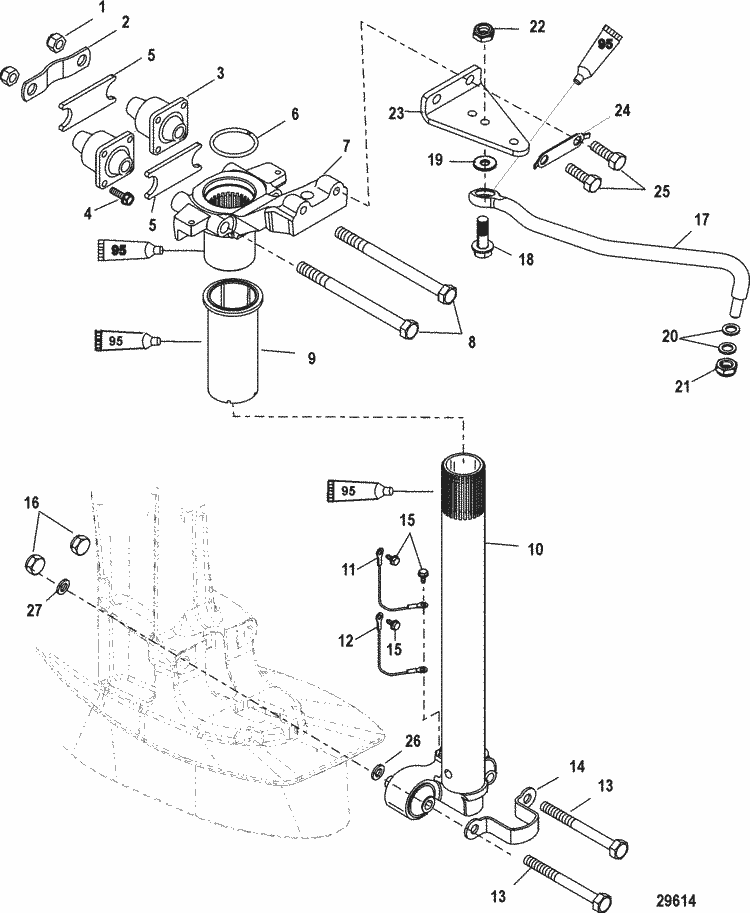

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	11-896963	NUT, (M12) (2 required per assembly)
		11-896963 - Nut, (M12) [ More info ] $6.09 3 In Stock.
#2	893773002	STRAP, Upper Mount (1 required per assembly)
		893773002 - Strap [ More info ] $23.69 Available to Order: Shipping delay up to 10 days.
#3	826267T 2	MOUNT, Upper (2 required per assembly)
		826267T 2 - Mount [ More info ] Unavailable
		893655T - Mount [ More info ] $100.50 1 In Stock.
		8M0224385 - MOUNT [ More info ] $86.99 Available to Order: Shipping delay up to 10 days.
#4	10-40011128	SCREW, (M6 x 20) Stainless Steel (8 required per assembly)
		10-40011128 - Screw - Priced Individually [ More info ] Unavailable
		108M4503518 - Screw , Priced Individually [ More info ] Unavailable
		108M0204741 - SCREW Note: Priced Individually [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#5	826658	BUMPER (1 required per assembly)
		826658 - Bumper [ More info ] $8.90 1 In Stock.
		8M0156878 - SNUBBER [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#6	53-89531	RING, Retaining (1 required per assembly)
		53-89531 - Ring - Retaining [ More info ] $11.59 $6.50 10+ In Stock.
#7	825222F 3	ARM, Steering (1 required per assembly)
		825222F 3 - ARM-STEERING-BLK [ More info ] Unavailable
		825222T03 - Steering Arm [ More info ] Unavailable
		8M0118183 - Steering Arm [ More info ] $415.49 Available to Order: Shipping delay up to 10 days.
#8	10-42973	BOLT, (M12 x 154) (2 required per assembly)
		10-42973 - Screw [ More info ] Unavailable
		10-898835001 - Screw [ More info ] $21.39 Available to Order: Shipping delay up to 10 days.
#9	23-827997 1	SPACER (1 required per assembly)
		23-827997 1 - Spacer [ More info ] $29.09 Available to Order: Shipping delay up to 10 days.
#10	893590T02	SWIVEL TUBE (1 required per assembly)
		893590T02 - Swivel Tube [ More info ] Unavailable
		893590T04 - Swivel Tube, 4 Cylinder, Long [ More info ] Unavailable
		8M0219909 - SWIVEL TUBE [ More info ] Unavailable
#11	88238A 4	CABLE ASSEMBLY (1 required per assembly)
		88238A 4 - Wire Assembly -Ground [ More info ] $2.90 3 In Stock.
		84-8M0008283 - 84-8M0008283 - CABLE [ More info ] Unavailable Replaced by -88238T01
		84-88238T01 - Cable Assembly [ More info ] $46.00 2 In Stock.
#12	88238A13	CABLE ASSEMBLY, Ground (1 required per assembly)
		88238A13 - Cable Assembly, Priced Individually [ More info ] $13.60 3 In Stock.
		8M0207768 - CABLE ASSY @5 [ More info ] Unavailable
#13	10-823567105	SCREW, (M10 x 105) Hex Flange - Stainless Steel (2 required per assembly) SN# 1C046581 & Below
		10-823567105 - Screw [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#14	893703	STRAP, Lower Mount (1 required per assembly)
		893703 - Strap [ More info ] $26.69 Available to Order: Shipping delay up to 10 days.
#15	10-878607	SCREW, (#10-16 x .375) (3 required per assembly)
		10-878607 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#16	11-40140	NUT, (M10) (2 required per assembly)
		11-40140 - Nut, (M10) [ More info ] $3.39 1 In Stock.
#17	19608A14	ATTACHING KIT, Engine Steering (Non Handle) (1 required per assembly)
		19608A14 - Engine Steering Attaching Kit [ More info ] $210.97 Available to Order: Shipping delay up to 10 days.
#18	10-823919	SCREW, (.375-24 x 1.500) (Non Handle) (1 required per assembly)
		10-823919 - Screw - Priced Individually [ More info ] $6.69 2 In Stock.
#19	12-71970	WASHER, (.390 x .546 x .12) (Non Handle) (1 required per assembly)
		12-71970 - Washer (.39 X .546 X .10) [ More info ] $5.49 5 In Stock.
		128M0109680 - Washer [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#20	12-37828	WASHER, (.390 x .625 x .062) Stainless Steel (Non Handle) (2 required per assembly)
		12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ] $0.80 2 In Stock.
#21	11-826709113	NUT, (.375-24) Stainless Steel (Non Handle) (1 required per assembly)
		11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable
		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#23	816667A 2	BRACKET ASSEMBLY, Steering, Ride-Guide (Non Handle) (1 required per assembly)
		816667A 2 - Steering Bracket Kit [ More info ] $34.71 Available to Order: Shipping delay up to 10 days.
#24	14-816669F 1	TAB WASHER (Non Handle) (1 required per assembly)
		14-816669F 1 - Tab Washer [ More info ] Unavailable
		14-8M0009820 - Tab Washer [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#25	10-40003 77	SCREW, (M10 x 30) (Non Handle) (2 required per assembly)
		10-40003 77 - Screw [ More info ] Unavailable
#26	12-45176	WASHER, (.453 x .812 x .105) Stainless Steel (2 required per assembly) SN# 0P502069 & Below
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.50 6 In Stock.
#27	10-892086120	SCREW, (M10 x 120) (2 required per assembly) SN# 1C046582 & Up
		10-892086120 - Screw [ More info ] Unavailable
		108M0103829 - Screw [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
