Parts for Mercury Marine 40 HP Carburetor (3 Cylinder) (4-Stroke) Adaptor Plate

Revise Search: All Models > 40 HP Carburetor (3 Cylinder) (4-Stroke) > 1C000001 - 1C018825 (USA) > Adaptor Plate

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

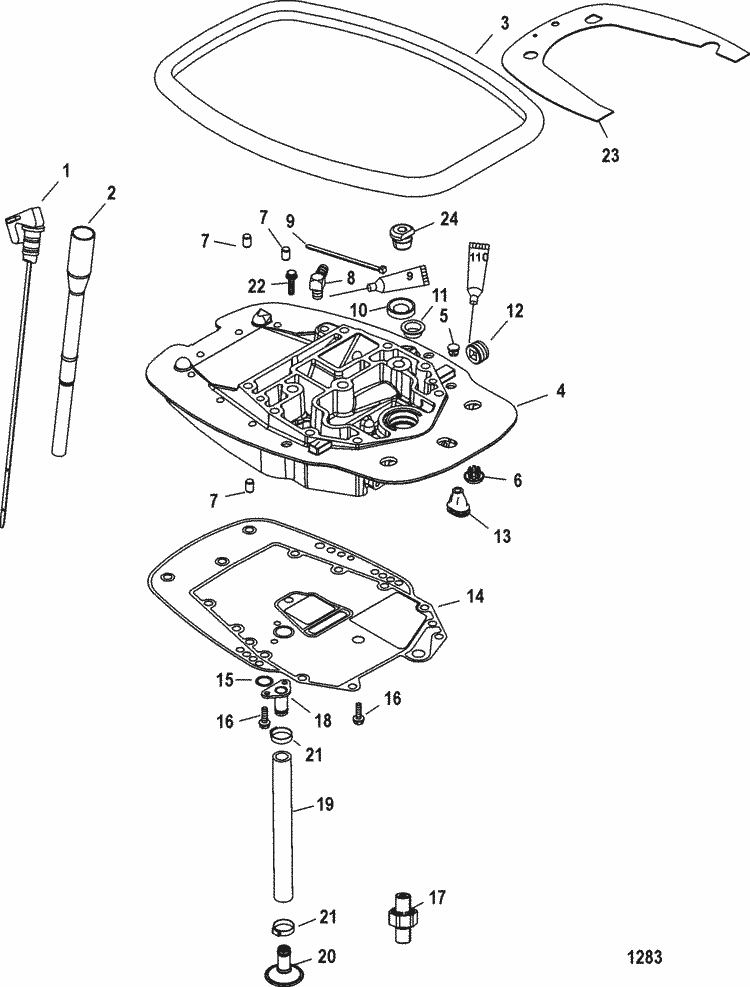

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	825990	DIPSTICK (1 required per assembly)
		825990 - Dipstick [ More info ] Unavailable
		8M0162935 - DIPSTICK [ More info ] $32.99 Available to Order: Shipping delay up to 10 days.
#2	825989003	DIPSTICK TUBE (Included with Adaptor Plate) (1 required per assembly)
		825989003 - Dipstick Tube [ More info ] Unavailable
#3	856055 2	SEAL (1 required per assembly)
		856055 2 - Seal [ More info ] $64.68 1 In Stock.
#4	825228A17	ADAPTOR PLATE (1 required per assembly)
		825228A17 - Adaptor Plate Kit [ More info ] Unavailable
#5	19-822464	PLUG (1 required per assembly)
		19-822464 - Plug [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#6	19-48323	PLUG (1 required per assembly)
		19-48323 - Plug [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#7	17-23784	PIN, Dowel (Included with Adaptor Plate) (4 required per assembly)
		17-23784 - Pin, Dowel [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#8	22-62910 1	FITTING, Elbow - 90 Degree (.125-27) (1 required per assembly)
		22-62910 1 - Elbow [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#9	54-816311T	TIE STRAP, (8.00 Inches) (2 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 8 In Stock.
#10	26-828932	SEAL, Oil (1 required per assembly) (Short)
		26-828932 - Seal [ More info ] $12.89 4 In Stock.
#10	26-66301	SEAL, Oil (1 required per assembly) (Long)
		26-66301 - Seal - Priced Individually [ More info ] $20.49 Available to Order: Shipping delay up to 10 days.
#11	23-856743	BUSHING (1 required per assembly) (Short)
		23-856743 - Bushing [ More info ] $9.39 Available to Order: Shipping delay up to 10 days.
#11	23-859594	BUSHING (1 required per assembly) (Long)
		23-859594 - Bushing [ More info ] $9.39 Available to Order: Shipping delay up to 10 days.
#12	22-889567	PLUG, (.500-14) (1 required per assembly)
		22-889567 - Pipe Plug - Priced Individually [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#13	25-822408001	GROMMET (Short) (1 required per assembly)
		25-822408001 - Grommet, Shift Shaft [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#14	27-892320001	GASKET (1 required per assembly)
		27-892320001 - Adaptor Plate Gasket [ More info ] Unavailable
		27-8M0163130 - 27-8M0163130 - GASKET [ More info ] Unavailable Replaced by -8M0213113
		278M0213113 - Gasket [ More info ] $131.99 Available to Order: Shipping delay up to 10 days.
#15	25-845746	O-RING (1 required per assembly)
		25-845746 - O-ring, Oil Pick-up Plate [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#16	10-40011128	SCREW, (M6 x 20) Stainless Steel (3 required per assembly)
		10-40011128 - Screw - Priced Individually [ More info ] Unavailable
		108M4503518 - Screw , Priced Individually [ More info ] Unavailable
		108M0204741 - SCREW Note: Priced Individually [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#17	881872A 1	BODY, Oil Pressure Relief (1 required per assembly)
		881872A 1 - Adaptor Assembly [ More info ] Unavailable
#18	893765	PLATE, Top Oil Pickup (1 required per assembly)
		893765 - Plate [ More info ] $14.49 Available to Order: Shipping delay up to 10 days.
#19	32-854793	HOSE, Oil Pickup (1 required per assembly)
		32-854793 - Hose [ More info ] $26.09 Available to Order: Shipping delay up to 10 days.
#20	893700	BAFFLE, Oil Pick-up (1 required per assembly)
		893700 - Baffle [ More info ] $27.19 Available to Order: Shipping delay up to 10 days.
#21	54-855228	CLAMP (2 required per assembly)
		54-855228 - Clamp [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#22	10-40074 55	SCREW, (M6 x 55) (1 required per assembly)
		10-40074 55 - Screw [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#23	828915 1	HEAT SHIELD (1 required per assembly)
		828915 1 - Heat Shield [ More info ] $22.39 Available to Order: Shipping delay up to 10 days.
#24	25-19564001	GROMMET (1 required per assembly)
		25-19564001 - Grommet [ More info ] $4.40 1 In Stock.
		258M0179867 - Grommet [ More info ] $9.09 1 In Stock.
