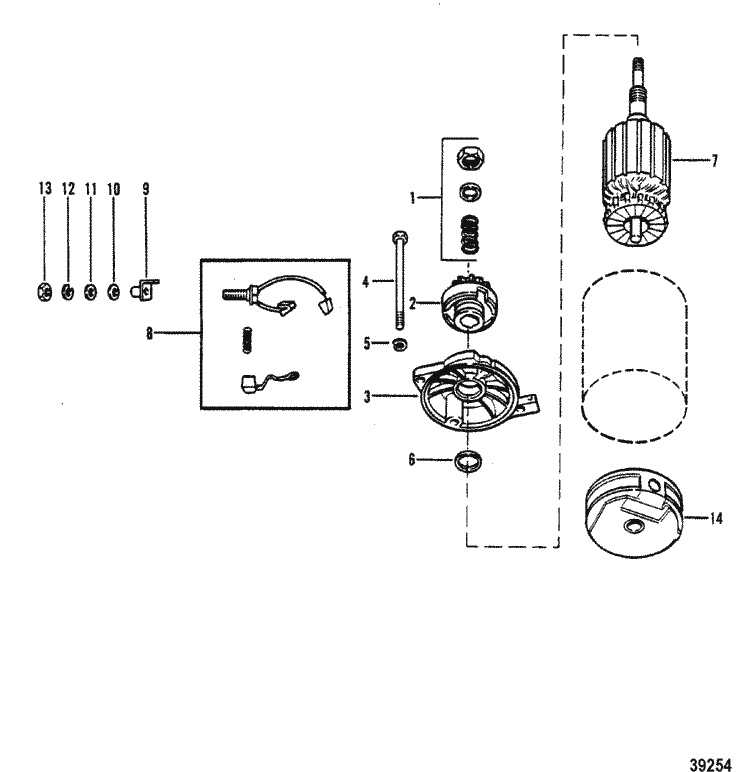

Parts for Mercury Marine 40 HP (2 Cylinder) Starter Motor Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 50-41583 | STARTER MOTOR ASSEMBLY (1 required per assembly) (10 PINION TEETH) |
  |
50-41583 - Starter [ More info ] Unavailable |
|
  |
|
50-41583T - Starter Assembly [ More info ] Unavailable |
  |
|
5385 - Starter, 50-41583T [ More info ]
|
| # | 50-55601A 2 | STARTER MOTOR ASSEMBLY (1 required per assembly) (9 PINION TEETH) |
  |
|
50-55601A 2 - Starter Kit [ More info ]
|
  |
|
18-5601 - Starter, 50-55601 [ More info ]
|
  |
|
5366 - Outboard Starter, Mercury 35-50HP [ More info ]
|
| #1 | 90642 | DRIVE KIT (1 required per assembly) |
  |
|
90642 - Drive Retainer Kit, NLA [ More info ] Unavailable |
| #2 | 57380 | DRIVE ASSEMBLY (1 required per assembly) (9 PINION TEETH) |
  |
|
|
| #2 | 43076 | DRIVE ASSEMBLY (1 required per assembly) (10 PINION TEETH) |
  |
43076 - DRIVE ASSY [ More info ] Unavailable |
|
  |
|
43076T - Drive Assembly, NLA [ More info ]
|
| #3 | 68584 | PLATE ASSEMBLY, DRIVE END (1 required per assembly) |
  |
|
68584 - Cap Assembly, NLA [ More info ] Unavailable |
| #4 | N.S.S. | Not Sold Separate, THRU BOLT (BOSCH #SC-3803) (2 required per assembly) |
  |
|
N.S.S. - Not Sold Separate [ More info ] Unavailable |
| #5 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #7 | 57384 | ARMATURE (1 required per assembly) |
  |
|
57384 - Armature [ More info ]
|
| #8 | 75384 | BRUSH/SPRING KIT (1 required per assembly) |
  |
|
75384 - Brush and Spring Kit [ More info ]
|
  |
|
898265016 - Brush/Spring Kit [ More info ] Unavailable |
  |
|
18-5697 - Brush Kit, 385952, 75384 [ More info ]
|
  |
|
300-05697 - 300-05697 OMC STR BRS KT [ More info ]
|
  |
|
BK900 - Brush Kit [ More info ]
|
| #9 | 23-57387 | BUSHING, INSULATING (1 required per assembly) |
  |
|
23-57387 - Bushing - Priced Individually [ More info ]
|
| #11 | 12-38013 | WASHER, INPUT STUD (1 required per assembly) |
  |
|
12-38013 - Washer, Input Stud, NLA [ More info ]
|
| #13 | 11-20890 | NUT, (.250-20) (1 required per assembly) |
  |
|
11-20890 - Nut (1/4 x20) [ More info ]
|
| #14 | 57389 | END CAP ASSEMBLY, W/BRUSH HOLDER (1 required per assembly) |
  |
|
57389 - End Cap, NLA [ More info ]
|
