Parts for Mercury Marine Model 40 4 HP (1 Cylinder) Shift Control Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 59107 | HANDLE, SHIFT CONTROL (1 required per assembly) UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW |
  |
|
59107 - Shift Control Handle [ More info ]
|
| #2 | 47431 | SHAFT, SHIFT - CONTROL HANDLE (1 required per assembly) UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW |
  |
|
47431 - Shaft, NLA [ More info ]
|
| #3 | 23-30678 | BUSHING, NYLON - SHIFT CONTROL HANDLE (2 required per assembly) UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW |
  |
|
23-30678 - Bushing, NLA [ More info ]
|
| #4 | 39588 | CAM, DETENT - SHIFT SHAFT (1 required per assembly) UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW |
  |
|
39588 - Shift Shaft Detent Cam, NLA [ More info ]
|
| #5 | 43-30802 | GEAR, HORIZONTAL - SHIFT CONTROL HANDLE (1 required per assembly) UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW |
  |
|
43-30802 - Sector Gear [ More info ]
|
| #1 | 66376 | HANDLE, SHIFT CONTROL (1 required per assembly) UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 |
  |
66376 - Shift Control Handle [ More info ] Unavailable |
|
  |
74352 - Handle [ More info ] Unavailable |
|
  |
93730 - Handle [ More info ] Unavailable |
|
  |
|
93730T - Handle C [ More info ]
|
| #2 | 66378 | SHIFT, SHIFT - CONTROL HANDLE (1 required per assembly) UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 |
  |
|
66378 - Shaft, NLA [ More info ]
|
| #3 | 23-66375 | BUSHING, NYLON - SHIFT CONTROL HANDLE (2 required per assembly) UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 |
  |
|
23-66375 - Bushing, NLA [ More info ]
|
| #4 | 66414 | CAM, DETENT - SHIFT SHAFT (1 required per assembly) UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 |
  |
|
66414 - Shift Shaft Detent Cam, NLA [ More info ]
|
| #5 | 43-66377 | GEAR, HORIZONTAL - SHIFT CONTROL HANDLE (1 required per assembly) UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 |
  |
|
43-66377 - Sector Gear [ More info ]
|
| #6 | 12-29245 | WASHER, SHIFT CONTROL HANDLE TO SHAFT (1 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #7 | 11-39305 | NUT, SHIFT CONTROL HANDLE TO SHAFT (1 required per assembly) |
  |
11-39305 - Nut, Shift Control Handle To Shaft [ More info ] Unavailable |
|
  |
11-33825 - Nut, Reverse Lock Hook Screw [ More info ] Unavailable |
|
  |
|
11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #8 | 24-30817 | SPRING, TENSION - SHIFT CONTROL HANDLE (1 required per assembly) UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW |
  |
|
24-30817 - Spring, Tension - Shift Control Shaft,NLA [ More info ]
|
| #9 | 17-31224 | PIN, DOWEL - TENSION SPRING TO HANDLE (1 required per assembly) UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW |
  |
|
17-31224 - Groove Pin, NLA [ More info ]
|
| #10 | 17-25905 | PIN, DETENT CAM TO SHIFT SHAFT (1 required per assembly) |
  |
|
17-25905 - Pin, Roll, NLA [ More info ]
|
| #12 | 11-20361 | NUT, HORIZONTAL GEAR TO SHIFT CONTROL HANDLE (1 required per assembly) |
  |
|
|
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|

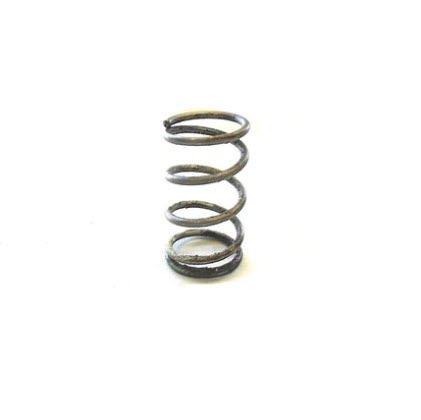

| #13 | 24-39627 | SPRING, DETENT - CRANKCASE (1 required per assembly) |
  |
|
24-39627 - Spring, Detent [ More info ]
|
| #14 | 39601 | PLATE, DETENT SPRING (1 required per assembly) |
  |
|
|
| #15 | 10-25764 | SCREW, PLATE AND SPRING TO CRANKCASE (1/2") (2 required per assembly) |
  |
|
10-25764 - Screw - Priced Individually [ More info ]
|
| #16 | 63555 | SHIFT SHAFT, UPPER (1 required per assembly) UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW |
  |
63555 - Shaft [ More info ] Unavailable |
|
  |
|
71660 - Shaft, NLA [ More info ]
|
| #17 | 23-30677 | BUSHING, NYLON - SHIFT CONTROL SHAFT (1 required per assembly) |
  |
|
23-30677 - Bushing, NLA [ More info ]
|
| #18 | 43-55447 | GEAR, SECTOR - SHIFT SHAFT (1 required per assembly) |
  |
43-55447 - SECTOR GEAR [ More info ] Unavailable |
|
  |
43-60653 - Sector Gear [ More info ] Unavailable |
|
  |
43-86686 - Shift Shaft Gear [ More info ] Unavailable |
|
  |
|
43-86686A 1 - Sector Gear [ More info ]
|
