Parts for Mercury Marine 4 HP (2-Stroke) Recoil Starter

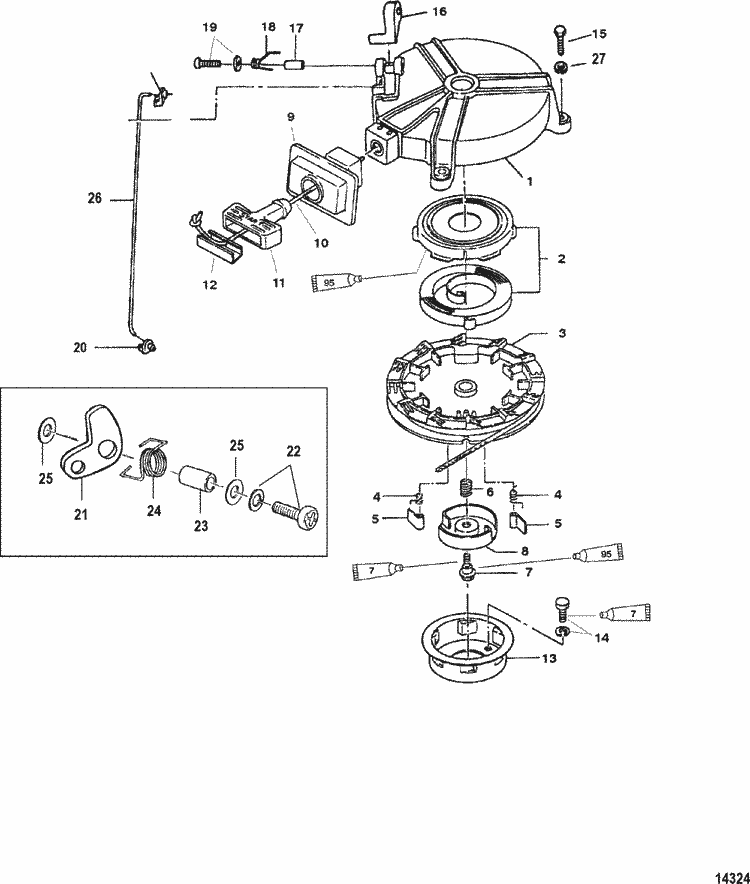

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 812632A 3 | STARTER ASSEMBLY, Recoil (1 required per assembly) |
  |
812632A 3 - Recoil Starter [ More info ] Unavailable |
|
  |
803576T02 - Recoil Starter Assembly [ More info ] Unavailable |
|
  |
|
8M0227446 - Recoil Starter [ More info ]
|

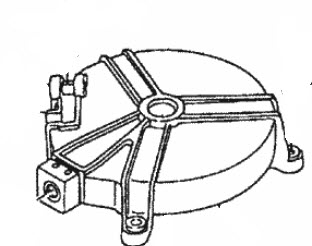

| #1 | 812632 | HOUSING, Starter (1 required per assembly) |
  |
812632 - Starter Housing [ More info ] Unavailable |
|
  |
|
8M0073416 - 8M0073416 - STARTER CASE [ More info ] Unavailable Replaced by -812632002 |
  |
812632002 - Starter Housing [ More info ] Unavailable |
|
  |
|
8M0227442 - STARTER CASE [ More info ] Unavailable |
| #2 | 24-812645T | SPRING SET, Starter (1 required per assembly) |
  |
|
24-812645T - Spring Set, Starter [ More info ]
|
| #3 | 812633 | SHEEVE, Starter (1 required per assembly) |
  |
|
812633 - Sheeve - Starter [ More info ]
|
| #4 | 24-812634 | SPRING, Return (2 required per assembly) |
  |
|
24-812634 - Spring, Return [ More info ]
|
| #5 | 812635 | RATCHET (2 required per assembly) |
  |
|
812635 - Ratchet [ More info ]
|
  |
|
8M0060217 - Ratchet [ More info ]
|
| #6 | 24-812636 | SPRING, Friction (1 required per assembly) |
  |
|
24-812636 - Spring, Friction [ More info ]
|
| #7 | 10-812637 | BOLT (1 required per assembly) |
  |
10-812637 - Bolt [ More info ] Unavailable |
|
  |
|
108M0060218 - Bolt [ More info ]
|
| #8 | 812638 | FRICTION PLATE (1 required per assembly) |
  |
|
812638 - Friction Plate [ More info ]
|
| #9 | 16110 1 | PLATE, Seal (1 required per assembly) |
  |
|
|
| #10 | 50-12066Q 9 | ROPE (1 required per assembly) |
  |
50-12066Q 9 - Starter Rope , Priced Individually [ More info ] Unavailable |
|
  |
|
50-12066Q10 - Starter Rope - Priced Individually [ More info ]
|
  |
|
18-4915 - Pull Rope, 50-12066Q9 [ More info ]
|
  |
|
50-12066K10 - Starter Rope - Priced Individually [ More info ]
|
| #11 | 812640 | HANDLE, Starter Rope (1 required per assembly) |
  |
|
812640 - Starter Rope Handle [ More info ]
|
| #12 | 812641 | RETAINER (1 required per assembly) |
  |
|
812641 - Retainer -rope [ More info ]
|
| #13 | 812642 | PULLEY, Starter (1 required per assembly) |
  |
|
|
| #14 | 10-16828 1 | SCREW AND LOCKWASHER (3 required per assembly) |
  |
|
10-16828 1 - Bolt [ More info ]
|
| #15 | 10-810755 | SCREW (3 required per assembly) |
  |
|
10-810755 - Screw [ More info ]
|
| #16 | 17634 | LOCK, Starter (1 required per assembly) |
  |
|
17634 - Starter Lock [ More info ]
|
| #17 | 23-17637 | COLLAR (1 required per assembly) |
  |
23-17637 - Collar [ More info ] Unavailable |
|
  |
|
23-895130 - Collar [ More info ]
|
| #18 | 24-17638 | SPRING (1 required per assembly) |
  |
24-17638 - Spring, NLA [ More info ] Unavailable |
|
  |
|
24-812645007 - Spring, Starter Interock [ More info ]
|
| #19 | 10-855544 9 | SCREW (1 required per assembly) |
  |
|
10-855544 9 - Screw [ More info ]
|
| #20 | 17643 1 | SNAP, Link Rod (2 required per assembly) |
  |
|
176431 - Snap Rod 8M0169412 [ More info ] Unavailable |
  |
|
8M0169412 - Snap Rod [ More info ]
|
| #21 | 812643 1 | LOCK CAM, Starter (1 required per assembly) |
  |
|
|
| #22 | 10-804364 | SCREW (1 required per assembly) |
  |
|
10-804364 - Screw, NLA [ More info ]
|
| #23 | 23-804365 | COLLAR (1 required per assembly) |
  |
|
23-804365 - Spacer [ More info ]
|
| #24 | 24-804366 | SPRING (1 required per assembly) |
  |
24-804366 - Spring [ More info ] Unavailable |
|
  |
|
24-804366001 - Spring, Starter Lock Cam [ More info ]
|
| #25 | 12-16826 | WASHER, Stainless Steel (2 required per assembly) |
  |
|
12-16826 - Washer, Stainless Steel [ More info ]
|
| #26 | 17642001 | ROD (1 required per assembly) |
  |
|
|
| #27 | 13-40025 6 | LOCKWASHER, (M6) (3 required per assembly) |
  |
|
13-40025 6 - LockWasher - Priced Individually [ More info ]
|
