Parts for Mercury Marine 350 Flywheel Assembly & Throttle Control Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 25-36283 | "O" RING, FLYWHEEL HUB (1,1 required per assembly) |
  |
25-36283 - O-Ring, Flywheel Hub [ More info ] Unavailable |
|
  |
|
25-37340 - O-ring, Pump Housing To Inner Wear Plate [ More info ]
|
| #1 | 11-22339 | NUT, FLYWHEEL (1,1 required per assembly) |
  |
11-22339 - Nut (5/8x18) [ More info ] Unavailable |
|
  |
|
11-8M0214915 - NUT Note: Priced Individually [ More info ]
|
  |
|
18-3713 - Nut, 11-22339 [ More info ]
|
  |
|
11-01817 - Nut 11-22339 [ More info ]
|
| #2 | 12-26617 | WASHER, FLYWHEEL NUT (1,1 required per assembly) |
  |
|
12-26617 - Washer Flywheel Nut, NLA [ More info ]
|
| #2 | 12-36281 | WASHER, FLYWHEEL NUT (1,1 required per assembly) |
  |
|
12-36281 - Washer, NLA [ More info ] Unavailable |
| #3 | 28-30250 | KEY, FLYWHEEL DRIVE (1,1 required per assembly) |
  |
28-30250 - Key, NLA [ More info ] Unavailable |
|
  |
|
28-45554 - Key, NLA [ More info ]
|
| #4 | 218-2241A 1 | FLYWHEEL ASSEMBLY, COMPLETE (1,1 required per assembly) |
  |
|
218-2241A 1 - Flywheel, NLA [ More info ] Unavailable |
| #5 | 10-35562 | SCREW, FLEXIBLE PLATE TO FLYWHEEL (8,8 required per assembly) |
  |
|
10-35562 - SCREW,NLA [ More info ] Unavailable |

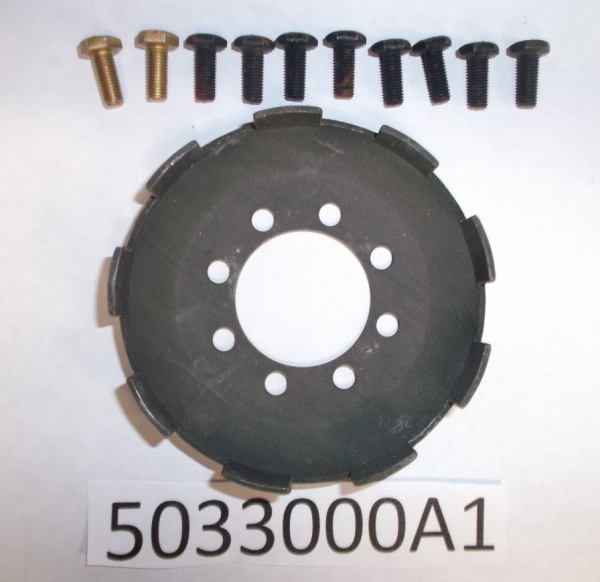

| #6 | 50-33000A 1 | RATCHET ASSEMBLY, FYWHEEL (1,1 required per assembly) |
  |
|
50-33000A 1 - Ratchet Assembly, NLA [ More info ]
|
| #7 | 10-32417 | SCREW, RATCHET TO FLYWHEEL (6,6 required per assembly) |
  |
|
10-32417 - Screw - Priced Individually [ More info ]
|
| #8 | 10-34290 | SCREW, RATCHET TO FLYWHEEL (2,2 required per assembly) |
  |
|
10-34290 - Screw [ More info ]
|
| #9 | 13-26992 | LOCKWASHER, RATCHET TO FLYWHEEL SCREW (2,2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #10 | 398-2221A 1 | STATOR PLATE ASSEMBLY, COMPLETE (1,1 required per assembly) |
  |
|
398-2221A 1 - Stator,SEE NOTE BELOW [ More info ] Unavailable |
| #11 | 36442A 1 | SHIELD ASSEMBLY, STATOR PLATE (1,1 required per assembly) |
  |
|
36442A 1 - Shield Assembly, NLA [ More info ]
|
| #12 | 10-34695 | SCREW, SHIELD TO STATOR PLATE (2,2 required per assembly) |
  |
10-34695 - Screw [ More info ] Unavailable |
|
  |
|
10-45742 - Screw [ More info ]
|
| #13 | 13-26996 | LOCKWASHER, SHIELD FASTENING SCREW (2,2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #14 | 33904 | RING, HOLD DOWN - STATOR PLATE (1,1 required per assembly) |
  |
|
33904 - Ring, NLA [ More info ]
|
| #15 | 10-35400 | SCREW, HOLD DOWN RING TO STATOR PLATE (4,4 required per assembly) |
  |
|
10-35400 - Screw - Priced Individually, NLA [ More info ]
|
| #16 | 15-33910 | SHIM, STATOR PLATE TO UPPER END CAP (.015) (1,1 required per assembly) |
  |
15-33910 - Shim [ More info ] Unavailable |
|
  |
|
15-33910015 - Shim, NLA [ More info ] Unavailable |
| #17 | 33974 | BRACKET, THROTTLE CAM (1,1 required per assembly) |
  |
|
33974 - Throttle Cam Bracket, NLA [ More info ] Unavailable |
| #18 | 10-34436 | SCREW, THROTTLE CAM BRACKET TO STATOR PLATE (2,2 required per assembly) |
  |
10-34436 - Screw, NLA [ More info ] Unavailable |
|
  |
|
10-29722 - Screw, NLA [ More info ]
|
| #19 | 34068 | CAM, ADJUSTING - THROTTLE (1,1 required per assembly) |
  |
|
34068 - Adjusting Throttle Cam, NLA [ More info ] Unavailable |
| #20 | 10-31903 | SCREW, ADJUSTING CAM TO BRACKET (2,2 required per assembly) |
  |
|
10-31903 - Screw, NLA [ More info ]
|
| #21 | 33970 | ROD, THROTTLE CONTROL (1,1 required per assembly) |
  |
|
33970 - Throttle Control Rod [ More info ] Unavailable |
| #22 | 28232 | TOGGLE BOLT, THROTTLE CONTROL ROD (1,1 required per assembly) |
  |
|
28232 - Toggle, NLA [ More info ] Unavailable |
| #23 | 12-26014 | WASHER, THROTTLE CONTROL ROD (1,1 required per assembly) |
  |
|
12-26014 - Washer, NLA [ More info ]
|
| #24 | 18-27769 | COTTER PIN, THROTTLE CONTROL ROD (2,2 required per assembly) |
  |
|
18-27769 - Cotter Pin [ More info ]
|
  |
|
18-26811 - Pigtail, GM HEI 2 Terminal [ More info ]
|
| #25 | 33973 | SWIVEL, THROTTLE CONTROL ROD TO ACTUATING LEVER (1,1 required per assembly) |
  |
|
33973 - Swivel [ More info ] Unavailable |
| #26 | 33842 | LEVER, THROTTLE ACTUATING (UPPER) (1,1 required per assembly) |
  |
|
33842 - Lever [ More info ] Unavailable |
| #27 | 33902 | ROD, VERTICAL (1,1 required per assembly) |
  |
|
33902 - ROD,NLA [ More info ] Unavailable |
| #28 | 12-26825 | WASHER, VERTICAL ROD (1,1 required per assembly) |
  |
|
12-26825 - Washer, (.328 X .750 X .06) [ More info ]
|
| #29 | 23-22981 | BUSHING, NYLON - VERTICAL ROD (2,2 required per assembly) |
  |
|
23-22981 - Bushing, NLA [ More info ]
|

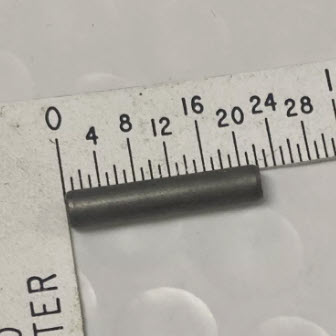

| #30 | 17-25870 | PIN, ROLL - VERTICAL ROD (2,2 required per assembly) |
  |
|
17-25870 - Pin -roll - Priced Individually [ More info ]
|
| #31 | 33833 | LEVER, THROTTLE ACTUATING (LOWER) (1,1 required per assembly) |
  |
|
33833 - Lever, NLA [ More info ] Unavailable |

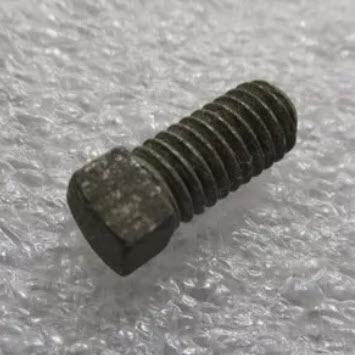

| #32 | 10-25781 | SCREW, SET - THROTTLE ACTUATING LEVERS (2,2 required per assembly) |
  |
|
10-25781 - SCREW,NLA [ More info ]
|
