Parts for Mercury Marine 3.5 HP Drivshaft Housing
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 1587-6721M | DRIVESHAFT HOUSING (SHORT) (1 required per assembly) |
  |
|
1587-6721M - Drive Shaft, NLA [ More info ] Unavailable |
| #1 | NLA | DRIVESHAFT HOUSING (LONG) (1 required per assembly) |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| #2 | 32-80995M | TUBE (SHORT) (1 required per assembly) |
  |
|
32-80995M - TUBING,NLA [ More info ] Unavailable |
| #2 | 32-80996M | TUBE (LONG) (1 required per assembly) |
  |
|
32-80996M - TUBING,NLA [ More info ] Unavailable |

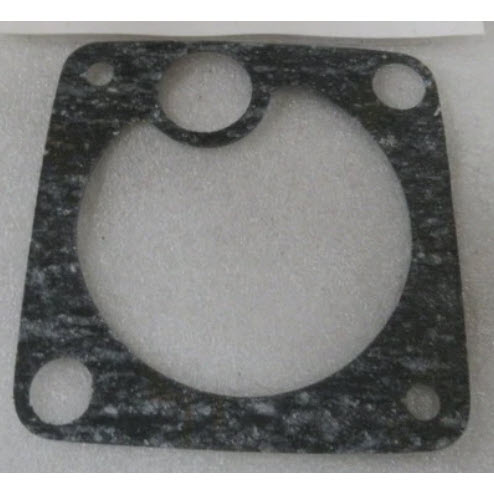

| #3 | 27-80166M | GASKET (1 required per assembly) |
  |
|
27-80166M - Driveshaft Housing Gasket [ More info ] Unavailable |

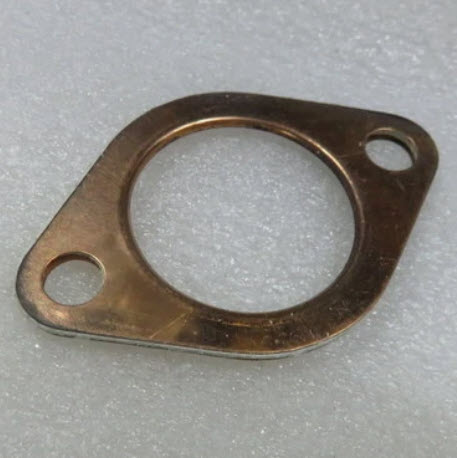

| #4 | 27-80146M | GASKET (1 required per assembly) |
  |
|
27-80146M - Gasket [ More info ] Unavailable |
| #5 | 10-83285M | BOLT (2 required per assembly) |
  |
|
10-83285M - Screw - Priced Individually [ More info ]
|
| #6 | 13-82212M | LOCKWASHER (11 required per assembly) |
  |
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #7 | 17-14229M | DOWEL PIN (2 required per assembly) |
  |
|
17-14229M - Pin -Dowel, NLA [ More info ]
|
| #8 | 10-82460M | BOLT (1 required per assembly) |
  |
|
10-82460M - BOLT,NLA [ More info ] Unavailable |
| #9 | 10-92534M | BOLT (1 required per assembly) |
  |
10-92534M - BOLT [ More info ] Unavailable |
|
  |
|
10-852776 5 - Bolt, NLA [ More info ]
|
| #10 | 10-82405M | BOLT (1 required per assembly) |
  |
|
10-82405M - Screw, NLA [ More info ]
|
| #12 | 32-80165M | WATER TUBE (SHORT) (1 required per assembly) |
  |
|
32-80165M - Tube, NLA [ More info ] Unavailable |
| #12 | 32-80186M | WATER TUBE (LONG) (1 required per assembly) |
  |
|
32-80186M - TUBING,NLA [ More info ] Unavailable |
| #13 | 10-84368M | BOLT (1 required per assembly) |
  |
|
10-84368M - Screw, NLA [ More info ]
|
| #14 | 17-82153M | ROLL PIN (1 required per assembly) |
  |
|
17-82153M - Pin -roll, NLA [ More info ] Unavailable |
| #15 | 80997M | COVER (1 required per assembly) |
  |
|
|
| #16 | 16-81739M | STUD (1 required per assembly) |
  |
|
16-81739M - STUD,NLA [ More info ] Unavailable |
| #17 | 11-82382M | NUT (1 required per assembly) |
  |
|
11-82382M - Nut - Priced Individually [ More info ]
|
| #18 | 13-82215M | LOCKWASHER (1 required per assembly) |
  |
|
13-82215M - LockWasher - Priced Individually [ More info ]
|
| #19 | 82859M | SHIFT CASING (1 required per assembly) SERIAL 00023741-09999999 |
  |
|
82859M - Housing, NLA [ More info ] Unavailable |
| #20 | 23-81948M | BUSHING (2 required per assembly) |
  |
|
23-81948M - Bushing,NLA [ More info ] Unavailable |
| #21 | 27-80297M | GASKET (1 required per assembly) |
  |
|
27-80297M - Shift Casing Gasket [ More info ] Unavailable |
| #22 | 17-82361M | DOWEL PIN (1 required per assembly) |
  |
|
17-82361M - PIN-DOWEL,NLA [ More info ] Unavailable |
| #23 | 22-82369M | GREASE FITTING (1 required per assembly) |
  |
|
22-82369M - Fitting - Priced Individually [ More info ]
|
| #24 | 81439M | CAP (1 required per assembly) |
  |
|
81439M - Lubricap - Priced Individually [ More info ]
|
| #25 | 84369M | COVER (1 required per assembly) SERIAL 00033791-09999999 |
  |
|
84369M - Cover, NLA [ More info ] Unavailable |
| #25A | 80298M | COVER (1 required per assembly) SERIAL 00000000-00033790 |
  |
|
80298M - Cover, NLA [ More info ] Unavailable |
