Parts for Mercury Marine 35 HP (2 Cylinder) Clamp & Swivel Bracket (Power Trim)

Revise Search: All Models > 35 HP (2 Cylinder) > 209608 & Up (Canada) > Clamp & Swivel Bracket (Power Trim)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	27-78028A78	GASKET SET
		27-78028A78 - Engine Gasket Set [ More info ] $77.49 Available to Order: Shipping delay up to 10 days.
#1	1490-8599A 6	SWIVEL BRACKET (1 required per assembly)
		1490-8599A 6 - Swivel Bracket,NLA [ More info ] Unavailable
#2	26-32911	OIL SEAL, SWIVEL BRACKET (2 required per assembly)
		26-32911 - Seal [ More info ] $15.59 1 In Stock.
#3	22-74036	GREASE FITTING (4 required per assembly)
		22-74036 - Fitting - Priced Individually [ More info ] Unavailable
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#4	26-22734	OIL SEAL, SWIVEL BRACKET (2 required per assembly)
		26-22734 - Seal, NLA [ More info ] Unavailable
#5	69540A 4	SWIVEL PIN ASSEMBLY (EARLY STYLE) (1 required per assembly)
		69540A 4 - ARM ASSY,NLA [ More info ] Unavailable
#6	88798A 2	SWIVEL PIN ASSEMBLY (LATER STYLE) (1 required per assembly)
		88798A 2 - Arm Assembly [ More info ] Unavailable

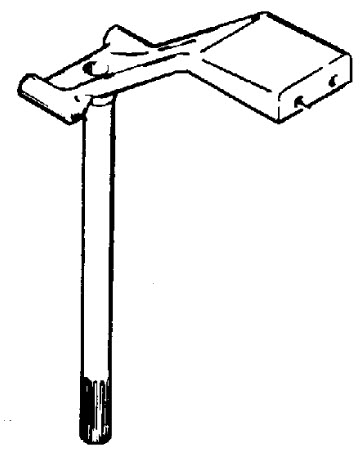

		88798A20 - Arm Assembly [ More info ] Unavailable
		88798A24 - Swivel Pin Assembly, NLA [ More info ] $107.78 3 In Stock.
#7	30711	BUMPER, STEERING ARM (1 required per assembly)
		30711 - Bumper, NLA [ More info ] $16.48 10+ In Stock.
#8	10-66897	BOLT, UPPER MOUNT TO SWIVEL PIN (5-1/4") (2 required per assembly)
		10-66897 - Screw [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#9	12-25176	WASHER, SWIVEL PIN TO BOTTOM YOKE (.060) (1 required per assembly)
		12-25176 - Washer (.060), NLA [ More info ] $4.54 10+ In Stock.
#10	77416	BOTTOM YOKE (1 required per assembly)
		77416 - Yoke [ More info ] $50.00 1 In Stock.
		77416T - YOKE-BOTTOM-BLACK [ More info ] Unavailable
		77416T 1 - Bottom Yoke, Black [ More info ] Unavailable
#11	53-77415	RETAINING RING, BOTTOM YOKE (1 required per assembly)
		53-77415 - Ring - Retaining [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#12	89105	TILT LOCK, STARBOARD/PORT (2 required per assembly)
		89105 - Lever [ More info ] $24.99 $21.16 6 In Stock.
#13	25-62702	O RING TILT LOCK (2 required per assembly)
		25-62702 - O-ring, (.301 X .070) [ More info ] Unavailable
		25-62702 1 - O-Ring [ More info ] $1.70 10+ In Stock.
#14	79659	COUPLING, TILT LOCK (1 required per assembly)
		79659 - Tilt Lock Coupling, NLA [ More info ] $20.77 8 In Stock.
#15	18-47959	COTTER PIN, TILT LOCK TUBE (2 required per assembly)
		18-47959 - Cotter Pin - Priced Individually [ More info ] $2.99 10+ In Stock.
#16	17-62887	PIN, TRIM CYLINDERS TO SWIVEL BRACKET (2 required per assembly)
		17-62887 - Pin, Lower Mount, NLA [ More info ] $24.99 $21.16 1 In Stock.
#17	12-63099	WASHER, TRIM CYLINDER PIN (3/4" I.D.) (2 required per assembly)
		12-63099 - Washer, (1.50 X .766 X .125) [ More info ] Unavailable
		12-840400 - Washer [ More info ] Unavailable
		12-8M0204695 - WASHER [ More info ] Unavailable
#18	12-54012	WASHER, TRIM CYLINDER PIN (1/2"I.D) (2 required per assembly)
		12-54012 - Washer, (.530 X .870 X .105) Stainless Steel [ More info ] Unavailable
		12-8M0204665 - WASHER Note: Priced Individually [ More info ] $3.59 10+ In Stock.
#19	11-35778	NUT, TRIM CYLINDER PIN (2 required per assembly)
		11-35778 - Nut (1/2-20) [ More info ] Unavailable
		11-826709117 - Nut, (.500-20) Stainless Steel [ More info ] $10.99 4 In Stock.
#20	1440-8394A 1	CLAMP BRACKET ASSEMBLY (2 required per assembly)
		1440-8394A 1 - Clamp Bracket Assembly [ More info ] Unavailable
#21	10-78492A 1	THUMB SCREW ASSEMBLY (2 required per assembly)
		10-78492A 1 - Screw Assembly, NLA [ More info ] Unavailable
#22	12-78493	WASHER, THUMB SCREW (2 required per assembly)
		12-78493 - Wahser, Thumb Screw, NLA [ More info ] $9.59 10+ In Stock.
#23	10-78495 1	SCREW, WASHER TO THUMB SCREW (2 required per assembly)
		10-78495 1 - SCREW [ More info ] Unavailable
		10-78495 - Screw - Priced Individually [ More info ] $10.76 10+ In Stock.
#24	75043	CAP, THUMB SCREW (2 required per assembly)
		75043 - Cover [ More info ] $6.38 5 In Stock.
#25	74528	TILT TUBE (1 required per assembly)
		74528 - Tilt Tube [ More info ] Unavailable
		883067 - Tilt Tube [ More info ] Unavailable
		8M0035074 - Tilt Tube [ More info ] Unavailable
		8M0041936 - Tilt Tube [ More info ] $29.75 2 In Stock.
#26	12-52864	WASHER, TILT TUBE (2 required per assembly)
		12-52864 - Washer, Tilt Tube, NLA [ More info ] $4.80 10+ In Stock.
#27	11-56041	NUT, TILT TUBE (2 required per assembly)
		11-56041 - Nut (7/8-14) [ More info ] Unavailable
		11-30499 - Nut (7/8-14) [ More info ] Unavailable
		11-858869 - Nut, (.875-14) [ More info ] $4.99 4 In Stock.
#28	53078	CAP, PLASTIC - TILT TUBE (2 required per assembly)
		53078 - Plastic Cap, NLA [ More info ] $10.76 10+ In Stock.
#29	55-28416	PIN, UPPER (1 required per assembly)
		55-28416 - Upper Shock Pin, NLA [ More info ] $52.81 5 In Stock.
#30	23-73203	BUSHING, CLAMP BRACKET (2 required per assembly)
		23-73203 - Bushing, NLA [ More info ] $24.78 10 In Stock.
#31	10-62882	SCREW, BRACKET TO UPPER PIN (3-1/4") (2 required per assembly)
		10-62882 - SCREW,NLA [ More info ] Unavailable
#32	23-62885	SPACER, MOUNTING BRACKET SCREW (1/2"I.D) (2 required per assembly)
		23-62885 - Spacer - Mounting Bracket Screw [ More info ] Unavailable
#32	23-89952	SPACER, MOUNTING BRACKET SCREW (1/3"I.D) (2 required per assembly)
		23-89952 - Spacer - Mounting Bracket Screw - 1/3 ID [ More info ] Unavailable
#33	23-62884	SPACER, MOUNTING BRACKET SCREW (3/4"I.D) (2 required per assembly)
		23-62884 - Spacer - Mounting Bracket Screw - 3/4 ID [ More info ] Unavailable
#34	10-68298	BOLT, CLAMP BRACKET TO TRANSOM (3-1/4") (2 required per assembly)
		10-68298 - Screw, NLA [ More info ] $8.76 $7.42 10+ In Stock.
#35	12-68410	WASHER, CLAMP BRACKET BOLT (2 required per assembly)
		12-68410 - Washer, NLA [ More info ] $3.90 10+ In Stock.
#34	10-89673	BOLT, CLAMP BRACKET TO TRANSON (5") (2 required per assembly)
		10-89673 - Screw, NLA [ More info ] $4.88 $4.13 10+ In Stock.
#35	12-28420	WASHER, CLAMP BRACKET BOLT (2 required per assembly)
		12-28420 - Washer [ More info ] Unavailable
#36	11-99405	NUT, CLAMP BRACKET BOLT (4 required per assembly)
		11-99405 - Nut (3/8-16) (brass) [ More info ] $3.32 10+ In Stock.
		11-826711 12 - Nut, (.375-16) [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#37	62297	BUMPER, STEERING ARM W/O TILLER HANDLE (1 required per assembly)
		62297 - Bumper, NLA [ More info ] $4.00 $3.39 5 In Stock.
#38	76535	BRACKET, RIDE-GUIDE ATTACHING (1 required per assembly) W/O TILLER HANDLE
		76535 - Bracket [ More info ] Unavailable
		76535T - Bracket [ More info ] $40.84 2 In Stock.
#39	10-34352	SCREW, BRACKET TO STEERING ARM (7/8") (2 required per assembly) W/O TILLER HANDLE
		10-34352 - Screw - Priced Individually [ More info ] $1.20 2 In Stock.
#40	76533	STRAP, BRACKET SCREW (1 required per assembly) W/O TILLER HANDLE
		76533 - Strap, without Tiller Handle [ More info ] $3.99 $3.37 10 In Stock.
