Parts for Mercury Marine 30 HP Jet Oil Injection Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 32-90049 34 | SIGHT TUBE (1 required per assembly) |
  |
|
32-90049 34 - Tubing - 25 In, NLA [ More info ]
|
| # | 54-814200 | CLAMP (2 required per assembly) |
  |
|
54-814200 - Clamp [ More info ]
|

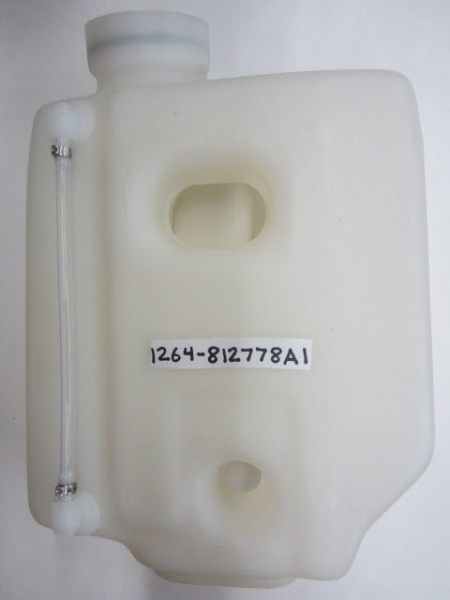

| #1 | 1264-812778A 1 | OIL TANK ASSEMBLY (1 required per assembly) |
  |
|
1264-812778A 1 - Oil Tank Assembly [ More info ]
|
| #2 | 19299A 1 | VENT (1 required per assembly) |
  |
|
19299A 1 - Vent Assembly [ More info ]
|
| #3 | 21-64871 | VALVE (1 required per assembly) |
  |
|
21-64871 - Check Valve [ More info ]
|
| #4 | 25-11332 | O-RING (1 required per assembly) |
  |
|
25-11332 - O-ring, (2.225 X .210) [ More info ]
|
| #5 | 812988A 1 | INSERT-OIL CAP (1 required per assembly) |
  |
|
812988A 1 - Insert Assembly [ More info ] Unavailable |
| #6 | 813641 | SEAL (1 required per assembly) |
  |
|
813641 - Seal, NLA [ More info ] Unavailable |
| #7 | 36-19070A 2 | CAP ASSEMBLY (1 required per assembly) |
  |
|
36-19070A 2 - Cap Assembly [ More info ]
|
| #8 | 25-90186 | O-RING (1 required per assembly) |
  |
|
25-90186 - O-Ring [ More info ]
|
| #9 | 99161 | BOOT-OIL TANK (1 required per assembly) |
  |
|
99161 - Oil Tank Boot, NLA [ More info ]
|
| #10 | 87-12886A 6 | SWITCH (1 required per assembly) |
  |
|
87-12886A 6 - Switch Assembly [ More info ]
|
  |
|
18-1800 - Oil Reservoir Float Switch, 12886A6 [ More info ]
|
| #11 | 10-12896 | SCREW (1 required per assembly) |
  |
|
10-12896 - Screw [ More info ]
|
| #12 | 812690 1 | OIL INJECTION PUMP (1 required per assembly) |
  |
812690 1 - Pump-OIL Inject [ More info ] Unavailable |
|
  |
|
812690T 1 - Oil Pump Inject [ More info ]
|
| #13 | 10-55515 | SCREW-OIL PUMP (2 required per assembly) |
  |
|
10-55515 - Screw, NLA [ More info ]
|
| #14 | 43-19277 | DRIVEN GEAR (1 required per assembly) |
  |
|
43-19277 - Driven Gear [ More info ]
|
| #15 | 32-823813 25 | TUBING (1 required per assembly) |
  |
32-823813 25 - Tubing, 10 Inch [ More info ] Unavailable |
|
  |
32-823813 29 - TUBING-12 INCH [ More info ] Unavailable |
|
  |
|
32-823813 35 - Tubing - 15 Inch [ More info ]
|
| #16 | 25-62705 | O-RING (1 required per assembly) |
  |
25-62705 - O-ring (.739 I.d.) [ More info ] Unavailable |
|
  |
|
25-8M0204667 - O RING Note: Priced Individually [ More info ]
|
| #17 | 25-48462 | O-RING (1 required per assembly) |
  |
|
25-48462 - O-ring, (.614 X .070) [ More info ]
|
| #18 | 23-19278A 2 | BEARING ASSEMBLY-DRIVEN GEAR (1 required per assembly) |
  |
|
23-19278A 2 - Bearing - Driven Gear [ More info ]
|
