Parts for Mercury Marine 30 HP Jet (3 Cylinder) Clamp Bracket

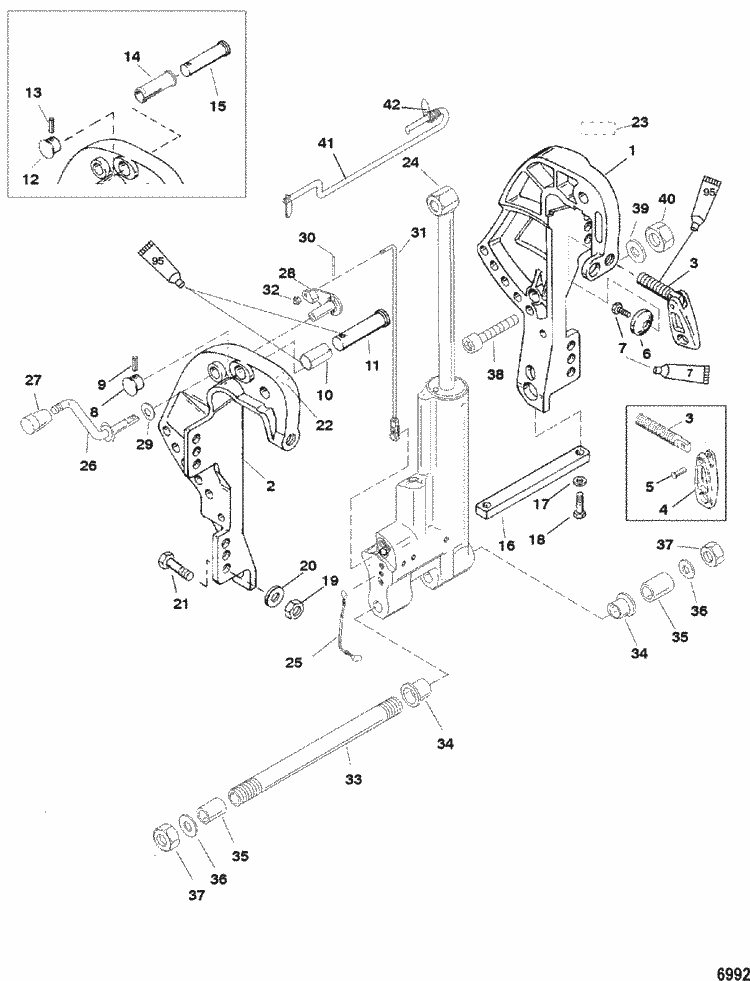

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 3411-821773T 1 | CLAMP BRACKET (1 required per assembly) (Port) (Black) |
  |
|
3411-821773T 1 - Clamp Bracket [ More info ]
|
| #2 | 3412-821774T 8 | CLAMP BRACKET (1 required per assembly) (Storboard) (Black) |
  |
|
3412-821774T 8 - Clamp Bracket [ More info ]
|
| #3 | 10-818883A 1 | THUMB SCREW ASSEMBLY (2 required per assembly) (Manual) |
  |
|
10-818883A 1 - Thumb Screw Assembly, New Takeoff [ More info ]
|
| #4 | NSS | NOT SOLD SEPARATE (2 required per assembly) Handle (Manual) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #6 | 12-818884 | WASHER (2 required per assembly) (Manual) |
  |
|
12-818884 - Washer [ More info ]
|
| #7 | 10-76804 2 | SHOULDER SCREW, Hex (2 required per assembly) (Manual) |
  |
|
10-76804 2 - Screw [ More info ]
|
| #8 | 822401 1 | CAP (1 required per assembly) (O.D. Of Ref. # 11 is .75 & Ref. # 10 is not flanged) |
  |
|
822401 1 - Cap - Tilt Stop Pin [ More info ]
|
| #9 | 17-25810 | PIN (1 required per assembly) (O.D. Of Ref. # 11 is .75 & Ref. # 10 is not flanged) |
  |
|
17-25810 - Pin -roll - Priced Individually [ More info ]
|
| #10 | 23-86637 | BEARING (1 required per assembly) (O.D. Of Ref. # 11 is .75 & Ref. # 10 is not flanged) |
  |
|
23-86637 - Bearing - Trim Shaft [ More info ]
|
| #11 | 17-822400 2 | PIN (1 required per assembly) (O.D. Of Ref. # 11 is .75 & Ref. # 10 is not flanged) |
  |
|
17-822400 2 - Tilt Lock Pin [ More info ]
|
| #12 | 822401 | CAP (1 required per assembly) (O.D. Of Ref. # 15 is .56 & Ref. # 14 is flanged) |
  |
|
822401 - Tilt Stop Pin [ More info ] Unavailable |
| #13 | 17-25319 | PIN, (.125 x 0.75 Inches) (1 required per assembly) (O.D. Of Ref. # 15 is .56 & Ref. # 14 is flanged) |
  |
|
17-25319 - Pin, (.125 X 0.75 Inches) [ More info ]
|
| #14 | 23-823589 | BUSHING (1 required per assembly) (O.D. Of Ref. # 15 is .56 & Ref. # 14 is flanged) |
  |
|
23-823589 - Bushing, NLA [ More info ]
|
| #15 | 17-822400 1 | PIN (1 required per assembly) (O.D. Of Ref. # 15 is .56 & Ref. # 14 is flanged) |
  |
|
17-822400 1 - Tilt Lock Pin, NLA [ More info ]
|
| #16 | 825271 1 | ANODE (1 required per assembly) |
  |
|
97-825271 1 - Anode, Aluminum [ More info ]
|
| #17 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (2 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #18 | 10-40003 30 | SCREW, (M6 x 25) (2 required per assembly) |
  |
|
10-40003 30 - Screw - Priced Individually [ More info ]
|
| #19 | 11-826711 17 | NUT, (.500-20) (4 required per assembly) |
  |
|
11-826711 17 - Nut, (.500-20) [ More info ]
|
| #20 | 12-28421 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel (4 required per assembly) |
  |
|
12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ]
|
  |
|
12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ]
|
| #21 | 10-814259 | SCREW, (.500-20 x 4.00) (4 required per assembly) |
  |
|
10-814259 - Screw [ More info ]
|
| #22 | 37-830253 | DECAL, Tilt Lock (1 required per assembly) |
  |
|
37-830253 - Decal - Tilt/Lock [ More info ]
|
| #24 | 828533T 1 | TRIM, Hydraulic Assist (1 required per assembly) (Gas Assist Trim) |
  |
|
828533T 1 - Trim-gas Assist [ More info ] Unavailable |
| #25 | 88238A11 | CABLE ASSEMBLY (1 required per assembly) (Gas Assist Trim) |
  |
|
88238A11 - Cable Assembly [ More info ]
|
| #26 | 828924 | LEVER, Tilt (1 required per assembly) (Gas Assist Trim) |
  |
|
828924 - Lever Arm [ More info ]
|
| #27 | 19621 | TILT KNOB (1 required per assembly) (Gas Assist Trim) |
  |
19621 - KNOB-TILT [ More info ] Unavailable |
|
  |
|
8M0007469 - Knob - Tilt [ More info ]
|
| #28 | 828930 | ARM, Lever (1 required per assembly) (Gas Assist Trim) |
  |
|
828930 - Lever Arm [ More info ]
|
| #29 | 13-31030 | WAVE WASHER (1 required per assembly) (Gas Assist Trim) |
  |
|
13-31030 - Wave Washer - Priced Individually [ More info ]
|
| #31 | 828996 1 | LINK (1 required per assembly) (Gas Assist Trim) |
  |
|
828996 1 - Link Assembly [ More info ]
|
| #32 | 11-29488 | NUT, (#10-32) (1 required per assembly) (Gas Assist Trim) |
  |
|
11-29488 - Nut, (#10-32) [ More info ]
|
  |
|
11-826709106 - Nut, (#10-32) Stainless Steel [ More info ]
|
  |
|
11-8M0204718 - NUT [ More info ]
|
| #33 | 17-822481 | PIN, Anchor (14 mm) (1 required per assembly) (Gas Assist/Power Trim) |
  |
17-822481 - Anchor Pin, (14 Mm) [ More info ] Unavailable |
|
  |
|
17-822481001 - Anchor Pin [ More info ]
|
| #34 | 23-822482 | BUSHING (2 required per assembly) (Gas Assist/Power Trim) |
  |
|
23-822482 - Bushing [ More info ]
|
| #35 | 23-822484 | BUSHING (2 required per assembly) (Gas Assist/Power Trim) |
  |
|
23-822484 - Bushing [ More info ]
|
| #36 | 12-825190 | WASHER (2 required per assembly) (Gas Assist/Power Trim) |
  |
|
12-825190 - Washer [ More info ]
|
| #37 | 11-826712 | NUT (2 required per assembly) (Gas Assist/Power Trim) |
  |
|
11-826712 - Nut - Priced Individually [ More info ]
|
| #38 | 10-40090 40 | SCREW, (M10 x 40) Stainless Steel (2 required per assembly) (Gas Assist/Power Trim) |
  |
|
10-40090 40 - Screw [ More info ]
|
| #39 | 12-40023 19 | WASHER (2 required per assembly) (Gas Assist/Power Trim) |
  |
|
12-40023 19 - Washer (M10) [ More info ]
|
| #40 | 11-40140 | NUT, (M10) (2 required per assembly) (Gas Assist/Power Trim) |
  |
|
11-40140 - Nut, (M10) [ More info ]
|
| #41 | 17-853923A 1 | PIN (1 required per assembly) (Non-Power Trim) |
  |
|
17-853923A 1 - Pin, Tilt Lock [ More info ] Unavailable |
| #42 | 24-821461 | SPRING (1 required per assembly) (Non-Power Trim) |
  |
|
24-821461 - Spring, Tilt Lock Pin (Manual Tilt Models) [ More info ]
|
