Parts for Mercury Marine 30 HP EFI (3 Cylinder) (4-Stroke) Throttle Linkage, Remote

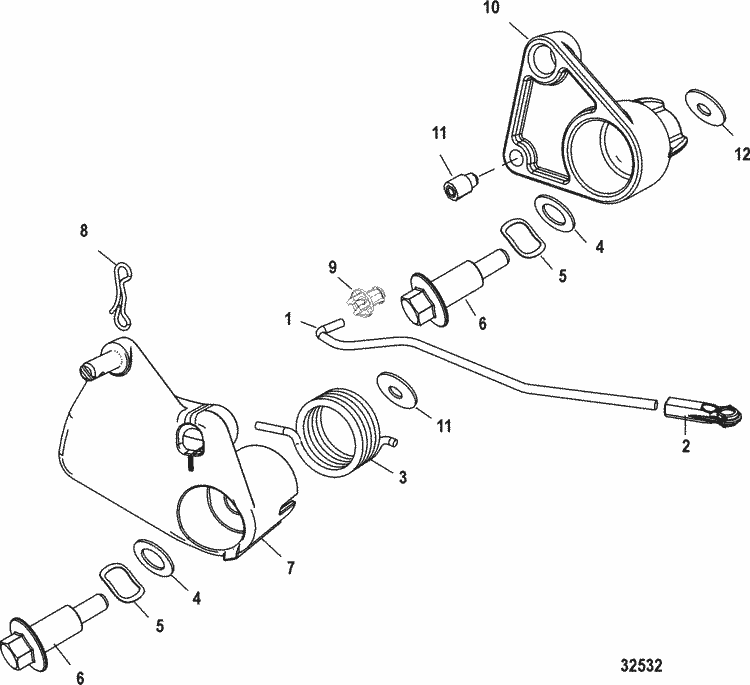

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8M0006021 | LINK ASSEMBLY, Throttle (1 required per assembly) |
  |
|
8M0006021 - Throttle Link [ More info ]
|
| #2 | 19384 | SOCKET (1 required per assembly) |
  |
19384 - Ball Socket [ More info ] Unavailable |
|
  |
|
8M0084742 - Socket - Ball [ More info ]
|
| #3 | 24-897535005 | SPRING, Throttle Cam Return (1 required per assembly) |
  |
|
24-897535005 - Spring, Throttle Cam Return [ More info ]
|
| #4 | 12-897937 | WASHER (2 required per assembly) |
  |
|
12-897937 - Washer - Priced Individually [ More info ]
|
| #5 | 13-898093 | WASHER, Wave (2 required per assembly) |
  |
|
13-898093 - Wave Washer - Priced Individually [ More info ]
|
| #6 | 10-8M0010411 | BOLT (2 required per assembly) |
  |
10-8M0010411 - Bolt - Priced Individually [ More info ] Unavailable |
|
  |
|
108M0071815 - Bolt [ More info ]
|
| #7 | 8M0021603 | CAM, Throttle (1 required per assembly) |
  |
|
8M0021603 - Throttle Cam [ More info ]
|
| #8 | 8M0001157 | PIN, Bow Tie Clip (1 required per assembly) |
  |
|
8M0001157 - Pin, Bow Tie Clip [ More info ]
|
| #9 | 23-93248 1 | BUSHING (1 required per assembly) |
  |
|
23-93248 1 - Bushing, New Number 238M0215006 [ More info ] Unavailable |
| #10 | 8M0008317 | FOLLOWER, Cam (1 required per assembly) |
  |
|
8M0008317 - Cam Follower [ More info ]
|
| #11 | 897780 | ROLLER (1 required per assembly) |
  |
|
897780 - 897780 - ROLLER [ More info ] Unavailable Replaced by -8M0037159 |
  |
|
8M0037159 - Cam Follower Roller [ More info ]
|
| #12 | 12-897936 | WASHER (2 required per assembly) |
  |
|
12-897936 - Washer - Priced Individually [ More info ]
|
