Parts for Mercury Marine 30 HP EFI (3 Cylinder) (4-Stroke) Adaptor Plate

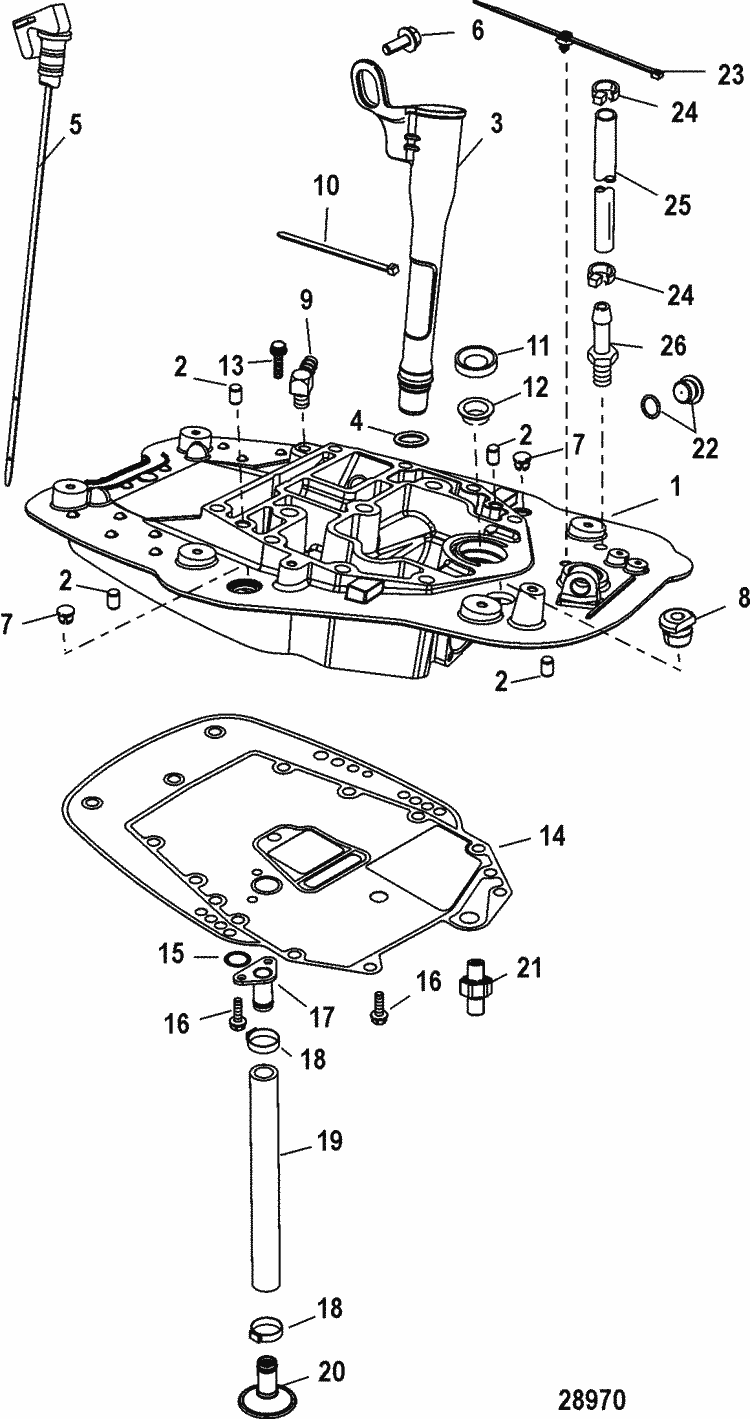

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-859352A02 | GASKET SET (1 required per assembly) |
  |
|
27-859352A02 - Gasket Set [ More info ] Unavailable |
| #1 | 825228T27 | ADAPTOR PLATE ASSEMBLY (1 required per assembly) |
  |
|
825228T27 - Adaptor Plate Ass [ More info ]
|
| #2 | 17-23784 | PIN, Dowel (4 required per assembly) |
  |
|
17-23784 - Pin, Dowel [ More info ]
|
| #3 | 8M0026249 | DIPSTICK TUBE ASSEMBLY, Plastic (1 required per assembly) |
  |
|
8M0026249 - Dipstick Tube [ More info ]
|
| #4 | 25-8M0008708 | O-RING (1 required per assembly) |
  |
|
25-8M0008708 - O-Ring [ More info ]
|
| #5 | 825990 | DIPSTICK (1 required per assembly) |
  |
825990 - Dipstick [ More info ] Unavailable |
|
  |
|
8M0162935 - DIPSTICK [ More info ]
|
| #6 | 10-40067 31 | SCREW, (M6 x 16) (1 required per assembly) |
  |
|
10-40067 31 - Screw [ More info ]
|
| #7 | 19-822464 | PLUG (2 required per assembly) |
  |
|
19-822464 - Plug [ More info ]
|
| #8 | 25-19564001 | GROMMET (1 required per assembly) Non-Power Trim |
  |
|
25-19564001 - Grommet [ More info ]
|
  |
|
258M0179867 - Grommet [ More info ]
|
| #8 | 25-19565002 | GROMMET (1 required per assembly) Power Trim |
  |
|
25-19565002 - Grommet [ More info ]
|
| #9 | 22-62910 1 | FITTING, Elbow - 90 Degree (.125-27) (1 required per assembly) |
  |
|
22-62910 1 - Elbow [ More info ]
|
| #10 | 54-816311T | TIE STRAP, (8.00 Inches) (3 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #11 | 26-66301 | SEAL, Oil (1 required per assembly) |
  |
|
26-66301 - Seal - Priced Individually [ More info ]
|
| #12 | 23-859594 | BUSHING (1 required per assembly) |
  |
|
23-859594 - Bushing [ More info ]
|
| #13 | 10-40074 55 | SCREW, (M6 x 55) (1 required per assembly) |
  |
|
10-40074 55 - Screw [ More info ]
|
| #14 | 27-892320001 | GASKET (1 required per assembly) |
  |
27-892320001 - Adaptor Plate Gasket [ More info ] Unavailable |
|
  |
|
27-8M0163130 - 27-8M0163130 - GASKET [ More info ] Unavailable Replaced by -8M0213113 |
  |
|
278M0213113 - Gasket [ More info ]
|
| #15 | 25-845746 | O-RING (1 required per assembly) |
  |
|
25-845746 - O-ring, Oil Pick-up Plate [ More info ]
|
| #16 | 10-40011128 | SCREW, (M6 x 20) Stainless Steel (3 required per assembly) |
  |
10-40011128 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
108M4503518 - Screw , Priced Individually [ More info ] Unavailable |
|
  |
|
108M0204741 - SCREW Note: Priced Individually [ More info ]
|
| #17 | 893765 | PLATE, Top Oil Pickup (1 required per assembly) |
  |
|
|
| #18 | 54-855228 | CLAMP (2 required per assembly) |
  |
|
54-855228 - Clamp [ More info ]
|
| #19 | 32-854793 | HOSE, Oil Pickup (1 required per assembly) |
  |
|
32-854793 - Hose [ More info ]
|
| #20 | 893700 | BAFFLE, Oil Pick-up (1 required per assembly) |
  |
|
|
| #21 | 881872A 1 | BODY, Oil Pressure Relief (1 required per assembly) |
  |
|
881872A 1 - Adaptor Assembly [ More info ] Unavailable |
| #22 | 19-8M0021330 | PLUG, (M18) (1 required per assembly) |
  |
|
19-8M0021330 - Plug [ More info ]
|
| #23 | 54-899145 | CLIP, Tie Strap (1 required per assembly) |
  |
|
54-899145 - Clip [ More info ]
|
| #25 | 32-830756109 | HOSE, (57.00 Inches Bulk), Cut to 17 Inches (1 required per assembly) |
  |
32-830756109 - Hose, 57 Inch [ More info ] Unavailable |
|
  |
32-8M0047428 - Hose -57 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #26 | 22-29111 2 | FITTING (1 required per assembly) |
  |
|
22-29111 2 - Fitting [ More info ]
|
