Parts for Mercury Marine 30 HP EFI (3 Cylinder) (4-Stroke) Driveshaft Housing

Revise Search: All Models > 30 HP EFI (3 Cylinder) (4-Stroke) > 0R106999 & Up (USA) > Driveshaft Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

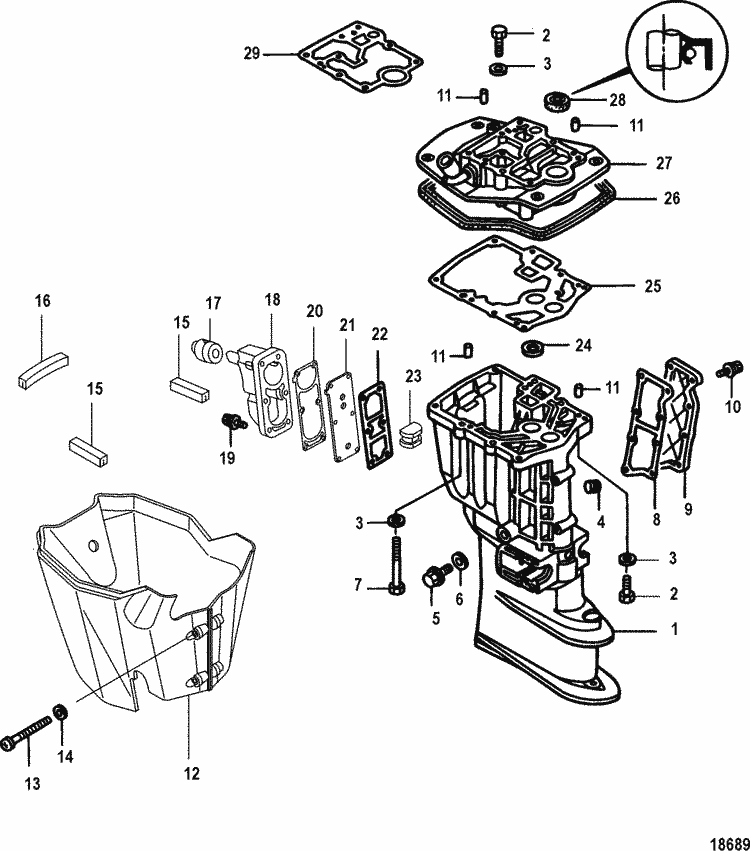

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	27-898101A06	GASKET SET, Powerhead (1 required per assembly)
		27-898101A06 - Powerhead Gasket Set [ More info ] Unavailable
		278M0079064 - Gasket Set [ More info ] Unavailable
#1	1599-803724T02	HOUSING, Driveshaft (1 required per assembly) Short
		1599-803724T02 - Drive Shaft Housing [ More info ] $453.49 Available to Order: Shipping delay up to 10 days.
#1	1599-803725T02	HOUSING, Driveshaft (1 required per assembly) Long
		1599-803725T02 - Housing-DSH [ More info ] Unavailable
		1599-803725T06 - Drive Shaft Housin [ More info ] Unavailable
		15008M0134022 - Drive Shaft Housing [ More info ] Unavailable
		1500-8M0192164 - DRIVESHAFT HSG [ More info ] Unavailable
#2	10-823042048	BOLT (3 required per assembly)
		10-823042048 - BOLT [ More info ] Unavailable
		10-823042079 - Bolt [ More info ] Unavailable
		8M0224584 - BOLT [ More info ] Unavailable
#3	12-895106001	WASHER (9 required per assembly)
		12-895106001 - WASHER [ More info ] Unavailable
		12-879194339 - Washer [ More info ] $1.25 3 In Stock.
		12-16192 - Washer [ More info ] $3.59 3 In Stock.
#4	19-803593	PLUG (1 required per assembly)
		19-803593 - Plug [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#5	10-895136	BOLT (1 required per assembly)
		10-895136 - Bolt - Drain Plug [ More info ] Unavailable
		8M0111615 - Bolt-DRAIN Plug [ More info ] $18.09 1 In Stock.
#6	12-895146	WASHER (1 required per assembly)
		12-895146 - Washer [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#7	10-823042047	BOLT (6 required per assembly)
		10-823042047 - BOLT [ More info ] Unavailable
		10-898103227 - Bolt [ More info ] $12.79 Available to Order: Shipping delay up to 10 days.
#8	27-854617001	GASKET (1 required per assembly)
		27-854617001 - Cover Gasket [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#9	853577001	COVER, Drain (1 required per assembly)
		853577001 - Drain Cover [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
#10	10-16830010	BOLT (8 required per assembly)
		10-16830010 - BOLT [ More info ] Unavailable
		10879194262 - Bolt [ More info ] Unavailable
		10-898101953 - Bolt - Priced Individually [ More info ] $6.09 1 In Stock.
#11	17-16119	PIN, Dowel (4 required per assembly)
		17-16119 - Dowel Pin [ More info ] $8.19 $6.56 3 In Stock.
#12	896116T	SKIRT (1 required per assembly)
		896116T - Skirt [ More info ] $160.49 Available to Order: Shipping delay up to 10 days.
#12	896116T01	SKIRT, Camouflage (1 required per assembly)
		896116T01 - Shirt [ More info ] $347.99 Available to Order: Shipping delay up to 10 days.
#13	10-898101192	SCREW, Tapping (2 required per assembly)
		10-898101192 - Screw [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#14	12-895106	WASHER, Stainless Steel (2 required per assembly)
		12-895106 - Washer, Stainless Steel [ More info ] Unavailable
		12-879194338 - Washer - Priced Individually [ More info ] Unavailable
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 1 In Stock.
#15	898101003	SEAL, Skirt (2 required per assembly)
		898101003 - Seal [ More info ] $5.89 2 In Stock.
#16	898101002	SEAL, Skirt (1 required per assembly)
		898101002 - Seal [ More info ] $7.29 1 In Stock.
#17	25-896631	GROMMET (1 required per assembly)
		25-896631 - Grommet [ More info ] $18.79 $18.00 2 In Stock.
#18	898101105	COVER, Idle Exhaust (1 required per assembly)
		898101105 - Cover [ More info ] $21.59 Available to Order: Shipping delay up to 10 days.
#19	10-16705 1	BOLT, (M6 x 20) (6 required per assembly)
		10-16705 1 - Bolt [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#20	27-898101106	GASKET, Idle Exhaust Port Cover (1 required per assembly)
		27-898101106 - Idle Exhaust Port Cover Gasket [ More info ] Unavailable
		278M0099564 - Gasket [ More info ] $12.89 Available to Order: Shipping delay up to 10 days.
#21	898101137	PLATE (1 required per assembly)
		898101137 - Plate [ More info ] $18.69 Available to Order: Shipping delay up to 10 days.
#22	27-895148001	GASKET (1 required per assembly)
		27-895148001 - Gasket [ More info ] $15.39 Available to Order: Shipping delay up to 10 days.
#23	25-898101086	GROMMET (1 required per assembly)
		25-898101086 - Grommet [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#24	95275002	PLATE (1 required per assembly)
		95275002 - Plate [ More info ] $5.49 2 In Stock.
#25	27-803663015	GASKET (1 required per assembly)
		27-803663015 - Driveshaft Housing Gasket [ More info ] Unavailable
		27-803663T15 - Gasket [ More info ] $95.49 Available to Order: Shipping delay up to 10 days.
#26	852432001	SEAL, Rubber (1 required per assembly)
		852432001 - Seal - Rubber [ More info ] $18.09 Available to Order: Shipping delay up to 10 days.
#27	898101T61	ADAPTOR PLATE (1 required per assembly)
		898101T61 - Adaptor Plate [ More info ] Unavailable
		889246T00 - Adaptor Plate [ More info ] Unavailable
		8M0097392 - Adaptor Plate [ More info ] $218.49 Available to Order: Shipping delay up to 10 days.
#28	26-853707 2	SEAL, Oil (1 required per assembly)
		26-853707 2 - Oil Seal [ More info ] $14.19 Available to Order: Shipping delay up to 10 days.
#29	27-835427T04	GASKET (1 required per assembly)
		27-835427T04 - Cylinder Block Gasket [ More info ] $69.49 Available to Order: Shipping delay up to 10 days.
