Parts for Mercury Marine 30 HP EFI (3 Cylinder) (4-Stroke) Tools 1

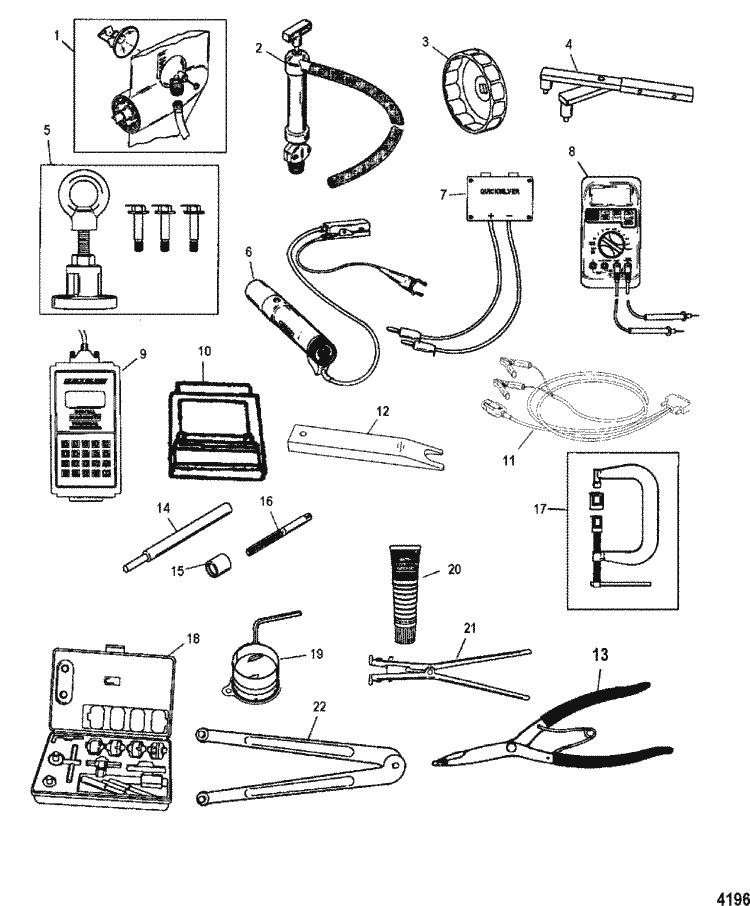

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 44357Q 2 | FLUSHING ATTACHMENT (1 required per assembly) |
  |
|
44357Q 2 - Flushing Kit, Priced Individually [ More info ]
|
  |
|
44357T 2 - Flushing Kit, Priced Individually [ More info ]
|
| #2 | 802889Q 1 | PUMP, Crankcase Oil (1 required per assembly) |
  |
|
802889Q 1 - Oil Pump Assembly Drain [ More info ]
|
  |
|
802889A 1 - Oil Drain Pump Assembly [ More info ]
|
| #3 | 91-802653Q 1 | WRENCH, Oil Filter (1 required per assembly) SN# USA-0T800999/BEL-0P267999 & Below |
  |
91-802653Q 1 - Filter Wrench - Priced Individually [ More info ] Unavailable |
|
  |
|
91-802653Q02 - Filter Wrench - Priced Individually [ More info ]
|
  |
|
91-802653K02 - Filter Wrench - Priced Individually [ More info ]
|
| #3 | 91-802653Q02 | WRENCH, Oil Filter (1 required per assembly) SN# USA-0T801000/BEL-0P268000 & Up |
| #4 | 91-83163M | HOLDER TOOL, Flywheel (1 required per assembly) |
  |
91-83163M - Holder [ More info ] Unavailable |
|
  |
91-24937T01 - Holder Flywheel [ More info ] Unavailable |
|
  |
|
91-8M0161873 - HOLDER-Flywheel [ More info ]
|
| #5 | 91-83164M | FLYWHEEL PULLER (1 required per assembly) |
  |
|
91-83164M - Puller and Lifting Eye [ More info ] Unavailable |
| #6 | 91-99379 | TIMING LIGHT (1 required per assembly) |
  |
|
91-99379 - Timing Light [ More info ]
|
  |
|
18-9802 - Timing Light [ More info ]
|
| #7 | 91-89045 1 | ADAPTOR TOOL, Direct Voltage (1 required per assembly) |
  |
|
91-89045 1 - Adaptor -test [ More info ]
|
| #8 | 91-854009A 3 | TACH MULTI METER, DMT 2000 Digital (1 required per assembly) SN# USA-0T800999/BEL-0P267999 & Below |
  |
|
91-854009A 3 - Ord 91-892647A01, NLA [ More info ] Unavailable |
| #8 | 91-892647A01 | MULTI-METER KIT, DMT 2004 (1 required per assembly) SN# USA-0T801000/BEL-0P268000 & Up |
  |
|
91-892647A01 - Tachometer/Multi Meter [ More info ]
|
| #9 | 91-823686A 2 | DIGITAL DIAGNOSTIC TESTER (1 required per assembly) |
  |
|
91-823686A 2 - TESTER-DIAGNOSTI,NLA [ More info ] Unavailable |
| #10 | 91-880118A 2 | CARTRIDGE (1 required per assembly) |
  |
91-880118A 2 - DDT CARTRIDGE [ More info ] Unavailable |
|
  |
91-880118A03 - DDT CARTRIDGE [ More info ] Unavailable |
|
  |
|
91-880118A04 - REF SB 04-03R1 [ More info ] Unavailable |
| #11 | 91-822560A 5 | HARNESS ASSEMBLY, DDT Adaptor (1 required per assembly) |
  |
|
84-822560A 5 - Harness Assembly -ddt [ More info ]
|
| #12 | 91-883877A 1 | REMOVAL TOOL, Fuel Injector (1 required per assembly) |
  |
|
91-883877A 1 - Tool - Fuel Inject [ More info ] Unavailable |
| #13 | NSS | NOT SOLD SEPARATE, Lock ring Pliers (P/N-SRP2) (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #14 | 91-809495A 1 | REMOVER TOOL, Valve Guide (1 required per assembly) |
  |
91-809495A 1 - REMOVER TOOL [ More info ] Unavailable |
|
  |
|
91-809495001 - Tool - Valve Guide [ More info ]
|
| #15 | 91-809496A 1 | INSTALLER TOOL, Valve Guide Bushing (1 required per assembly) |
  |
|
91-809496A 1 - Installer Tool [ More info ]
|
| #16 | 91-809497A 1 | REAMER TOOL, Valve Guide (1 required per assembly) |
  |
|
91-809497A 1 - REAMER TOOL,NLA [ More info ] Unavailable |
| #17 | 91-809494A 1 | COMPRESSOR TOOL, Valve Spring (1 required per assembly) |
  |
|
91-809494A 1 - Compressor Tool [ More info ]
|
| #19 | FT2997 | COMPRESSOR TOOL, Piston Ring (1 required per assembly) |
  |
|
FT2997 - Compressor-Ring [ More info ]
|
| #20 | 92-802867Q 1 | GREASE, Anti Corrosion (1 required per assembly) |
  |
|
92-802867Q 1 - W GREASE- Tube - Priced Individually NN [ More info ] Unavailable |
| #21 | 91-24697 | EXPANDER TOOL, Piston Ring (1 required per assembly) |
  |
|
91-24697 - Expander Tool [ More info ] Unavailable |
| #22 | 91-74951 | SPANNER WRENCH (1 required per assembly) |
  |
|
91-74951 - Trim Cap Spanner Wrench [ More info ]
|
