Parts for Mercury Marine 30 HP (2 Cylinder) Top Cowl

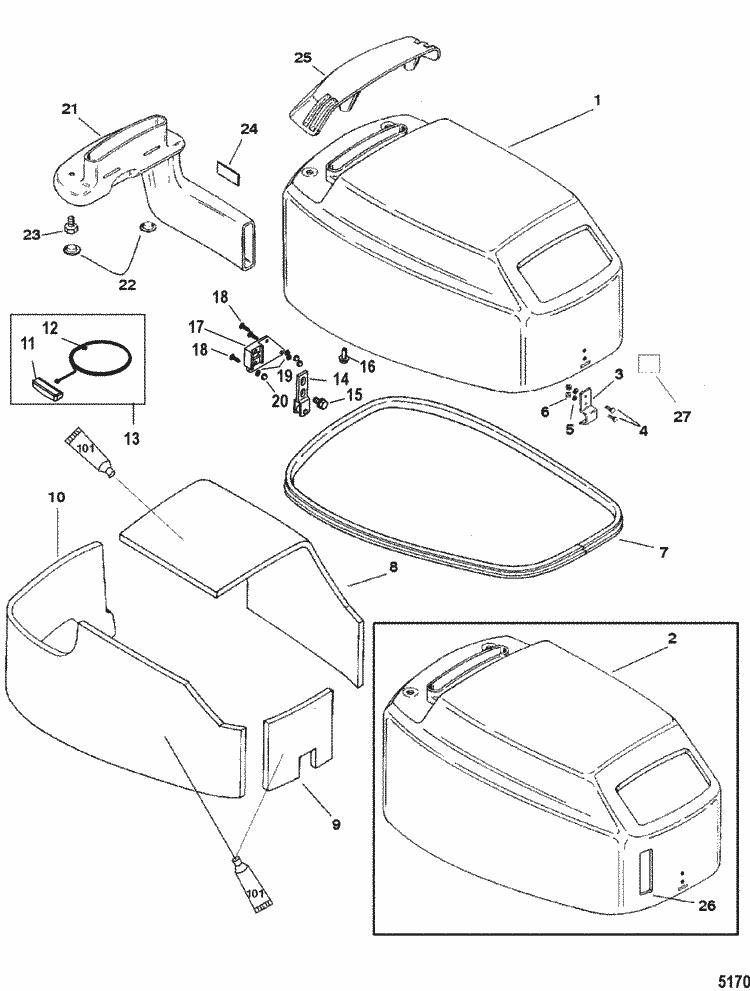

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 4011-821528T 5 | TOP COWL ASSEMBLY (1 required per assembly) (Black-Manual) |
  |
|
4011-821528T 5 - Cowl - Top - Black-manu [ More info ] Unavailable |

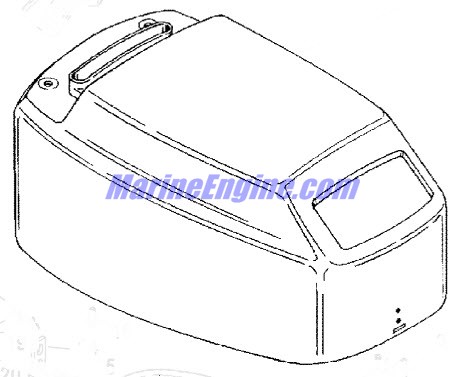

| #1 | 4011-821528T11 | TOP COWL ASSEMBLY (1 required per assembly) (Silver-Manual) |
  |
|
4011-821528T11 - Top Cowl, Silver-m [ More info ]
|
| #2 | 4011-821528T 7 | TOP COWL ASSEMBLY (1 required per assembly) (Black-Electric) |
  |
|
4011-821528T 7 - Cowl - Top - Black-ele [ More info ] Unavailable |
| #2 | 4011-821528T 8 | TOP COWL ASSEMBLY (1 required per assembly) (Silver-Electric) |
  |
|
4011-821528T 8 - Top Cowl, Silver-e [ More info ] Unavailable |
| #3 | 825742F 1 | LATCH (1 required per assembly) (Black) |
  |
|
825742F 1 - Latch, Cowl - Black [ More info ] Unavailable |
| #3 | 825742F 3 | LATCH (1 required per assembly) (Silver) |
  |
|
825742F 3 - Ord 825742F 1, NLA [ More info ] Unavailable |
| #4 | 10-823187 1 | SCREW, (M4 x 14.5) (2 required per assembly) |
  |
|
10-823187 1 - Screw [ More info ]
|
| #5 | 13-26995 | LOCKWASHER, (#8) Stainless Steel (2 required per assembly) |
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable |
| #6 | 11-823751 5 | NUT, (M4) (2 required per assembly) |
  |
|
11-823751 5 - Nut [ More info ]
|
| #7 | 826076 1 | SEAL, Cowl (1 required per assembly) |
  |
826076 1 - Seal, Cowl [ More info ] Unavailable |
|
  |
|
8M0043406 - Seal, Cowl [ More info ]
|
| #8 | 821530A 1 | SOUND BLANKET KIT, (Top/Side)(Hot Glue Adhesive) (1 required per assembly) |
  |
821530A 1 - SOUND BLACKET KIT [ More info ] Unavailable |
|
  |
|
821530A02 - Sound Blanket Kit [ More info ]
|
| #8 | 821530A02 | SOUND BLANKET KIT, (Top/Side)(Pre-Applied Pressure Sensitive Adhesive) (1 required per assembly) |
| #9 | NSS | NOT SOLD SEPARATE, Front Sound Blanket (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #11 | 47341A11 | ROPE AND HANDLE KIT, Manual Starting (1 required per assembly) |
  |
|
47341A11 - Manual Start Rope And Handle [ More info ]
|
| #14 | 18173 | BRACKET ASSEMBLY, Latch Roller, Roller Latch (1 required per assembly) |
  |
18173 - Bracket Assembly [ More info ] Unavailable |
|
  |
|
893763 - Roller Latch Bracket [ More info ]
|
| #15 | 10-40067 31 | SCREW, (M6 x 16) (2 required per assembly) |
  |
|
10-40067 31 - Screw [ More info ]
|
| #17 | 822426 1 | BRACKET (1 required per assembly) |
  |
822426 1 - Cowl Bracket [ More info ] Unavailable |
|
  |
|
8M0038412 - Bracket-Cowl [ More info ]
|
| #22 | 19-815784 | CAP, Plug (2 required per assembly) |
  |
|
|

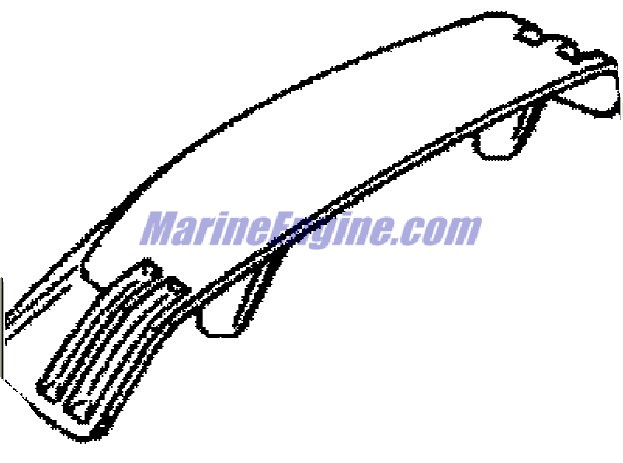

| #25 | 821529F 1 | SHIELD, Air Inlet (1 required per assembly) (Black) |
  |
821529F 1 - Air Inlet Shield [ More info ] Unavailable |
|
  |
|
100-8M0053822 - Air Inlet Shield [ More info ] Unavailable |
| #25 | 821529T 3 | SHIELD, Air Inlet (1 required per assembly) (Silver) |
  |
|
821529T 3 - Air Inlet Shield [ More info ] Unavailable |
| #27 | 37-824093 16 | DECAL, F-N-R Shift (1 required per assembly) |
  |
|
37-824093 16 - Decal - Shift [ More info ]
|
