Parts for Mercury Marine 250 HP Long (3.0L) (EFI) Exhaust Plate

Revise Search: All Models > 250 HP Long (3.0L) (EFI) > 0T861319 & Up (USA) > Exhaust Plate

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

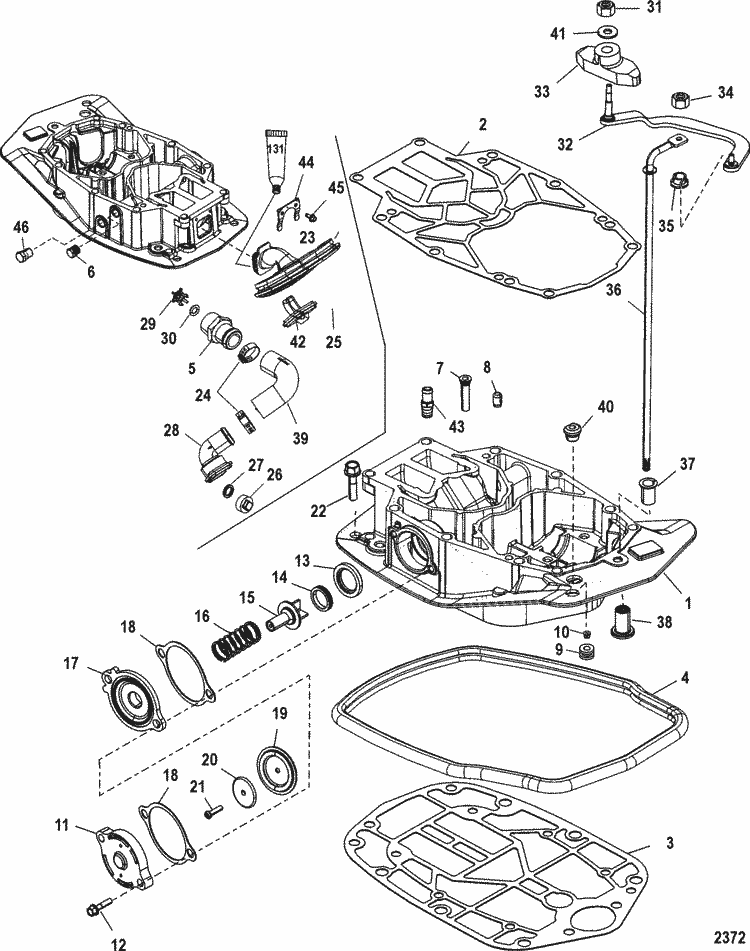

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	883894A04	POWERHEAD ASSEMBLY (1 required per assembly)
		883894A04 - PH 250 EFI 3.0L [ More info ] Unavailable
		883894A07 - Powerhead 250EFI 3L [ More info ] Unavailable
#	27-832934A00	GASKET SET, Powerhead (1 required per assembly)
		27-832934A00 - Powerhead Gasket Set [ More info ] $186.49 Available to Order: Shipping delay up to 10 days.
#1	840192T14	PLATE ASSEMBLY, Exhaust (1 required per assembly)
		840192T14 - Exhaust Plate Assembly [ More info ] Unavailable
#2	27-832933 5	GASKET (1 required per assembly)
		27-832933 5 - ORD 27-832933006 [ More info ] Unavailable
		18-2739 - Gasket 27-832335 [ More info ] $54.99 $53.53 In Stock
#3	27-832934 4	GASKET (LOWER) (1 required per assembly)
		27-832934 4 - ORD 27-832934006 [ More info ] Unavailable
#4	823805 1	SEAL (1 required per assembly)
		823805 1 - Seal [ More info ] $27.78 2 In Stock.
		8M0043157 - Seal [ More info ] $75.99 Available to Order: Shipping delay up to 10 days.
#5	22-832076 1	FITTING, Check Valve (1 required per assembly)
		22-832076 1 - Fitting [ More info ] $61.99 $50.26 10 In Stock.
#6	22-32803	PLUG, Pipe (.375-18) Brass (1 required per assembly)
		22-32803 - Plug [ More info ] $4.99 1 In Stock.
		228M0180565 - PLUG [ More info ] $7.99 1 In Stock.
		18-4264 - Pipe Plug, 3/8-18 NPT [ More info ] $5.49 $4.69 10+ In Stock.
#7	21-817519A 1	CHECK VALVE ASSEMBLY, Drain (2 required per assembly)
		21-817519A 1 - Drain Valve Assembly [ More info ] $16.39 3 In Stock.
#8	17-43044	PIN, Dowel - Without Hole (.375 x .625) (4 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 1 In Stock.
#9	25-822002	GROMMET (1 required per assembly)
		25-822002 - Grommet [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#10	19-48323	PLUG (1 required per assembly)
		19-48323 - Plug [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#11	65663A 2	COVER ASSEMBLY (1 required per assembly)
		65663A 2 - Cover Assembly [ More info ] Unavailable
#12	10-818934 35	SCREW, (M8 x 35) (2 required per assembly)
		10-818934 35 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#13	814190	CARRIER (1 required per assembly)
		814190 - Carrier [ More info ] Unavailable
#14	25-814191	GROMMET (1 required per assembly)
		25-814191 - Grommet [ More info ] $8.89 Available to Order: Shipping delay up to 10 days.
#15	814189	POPPET (1 required per assembly)
		814189 - Poppet [ More info ] $10.89 Available to Order: Shipping delay up to 10 days.
#16	24-64878	SPRING (1 required per assembly)
		24-64878 - Spring, Compresion Poppet Valve [ More info ] $6.79 7 In Stock.
#17	65664A 1	PLATE ASSEMBLY (1 required per assembly)
		65664A 1 - Plate Assembly [ More info ] $30.64 2 In Stock.
#18	27-88907003	GASKET (2 required per assembly)
		27-88907003 - Relief Valve Plate Gasket [ More info ] $3.79 4 In Stock.
#19	64877 1	DIAPHRAGM (1 required per assembly)
		64877 1 - Diaphragm [ More info ] $11.79 7 In Stock.
#20	12-76451	WASHER (1 required per assembly)
		12-76451 - Washer, Diaphragm [ More info ] $2.79 8 In Stock.
#21	10-69570	SCREW, (#10-16 x .750) (1 required per assembly)
		10-69570 - Screw [ More info ] $1.80 7 In Stock.
#23	850306A04	BOOT KIT, Idle Exhaust (1 required per assembly) (Includes ref.'s 44 and 45)
		850306A04 - Boot Kit - Idle Exhaust [ More info ] $93.99 Available to Order: Shipping delay up to 10 days.
#24	54-850896	CLAMP, (28.6) (2 required per assembly)
		54-850896 - Clamp [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#25	821904	FITTING, Tell-Tale (1 required per assembly)
		821904 - Fitting [ More info ] Unavailable
		22-8M0077650 - Tell Tale Fitting [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#26	19-821908	PLUG (1 required per assembly)
		19-821908 - Plug [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#27	12-821915	WASHER (1 required per assembly)
		12-821915 - Washer [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#28	22-859600 1	FITTING (1 required per assembly)
		22-859600 1 - Fitting [ More info ] $11.29 $9.04 6 In Stock.
#29	821963 1	CHECK VALVE (1 required per assembly)
		821963 1 - Check Valve [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
#30	25-30641	O-RING, (.299 x .103) (1 required per assembly)
		25-30641 - O-ring, (.299 X .103) [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#32	883142A 2	SHIFT LINK (1 required per assembly) SN# 0T979999 & Below
		883142A 2 - Shift Link Kit [ More info ] Unavailable
		883142A03 - Shift Link Kit [ More info ] $133.49 Available to Order: Shipping delay up to 10 days.
#32	883142A03	SHIFT LINK KIT (1 required per assembly) SN# 0T980000 & Up
#33	853968 3	SLIDE (1 required per assembly)
		853968 3 - Slide [ More info ] $15.69 1 In Stock.
#34	11-40138 6	NUT, (M6) Stainless Steel (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 10+ In Stock.
#35	23-42994	BUSHING (1 required per assembly)
		23-42994 - Bushing [ More info ] $3.19 1 In Stock.
#36	824070 1	SHIFT SHAFT, Upper (1 required per assembly)
		824070 1 - LEVER-SHIFT-LONG [ More info ] Unavailable
		896669001 - SHAFT-SHIFT [ More info ] Unavailable
		8M0036408 - Shift Shaft [ More info ] $187.99 Available to Order: Shipping delay up to 10 days.
#37	23-48237	BUSHING (1 required per assembly)
		23-48237 - Bushing [ More info ] $2.40 5 In Stock.
#38	43585	COUPLING (1 required per assembly)
		43585 - Shift Shaft Coupling [ More info ] $31.89 Available to Order: Shipping delay up to 10 days.
		18-1730 - Coupling, 43585 [ More info ] $32.89 $30.50 2 In Stock.
		93-02639 - Shift Coupling 43585 [ More info ] $24.99 $19.11 2 In Stock.
#39	32-859626A 1	FLUSH HOSE KIT (INLET) (1 required per assembly)
		32-859626A 1 - Flush Hose Kit [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#40	25-12602 1	GROMMET (1 required per assembly) SN# 0T979999 & Below
		25-12602 1 - Grommet [ More info ] Unavailable
		25-12602002 - Grommet (.44 I.d.) [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#40	25-12602002	GROMMET (1 required per assembly) SN# 0T980000 & Up
#41	12-35459	WASHER (1 required per assembly)
		12-35459 - Washer (.265 X .620 X .06) [ More info ] $1.70 2 In Stock.
#42	32-830756109	HOSE, (57.00 Inches Bulk) (Cut to 3 Inches) (1 required per assembly)
		32-830756109 - Hose, 57 Inch [ More info ] Unavailable
		32-8M0047428 - Hose -57 Inch [ More info ] Unavailable
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 2 In Stock.
#43	22-858855	FITTING, Straight (2 required per assembly)
		22-858855 - Fitting [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
#44	888910	PLATE (1 required per assembly)
		888910 - Plate [ More info ] $14.09 Available to Order: Shipping delay up to 10 days.
#45	10-822393 12	SCREW, (M5 x 12) (2 required per assembly)
		10-822393 12 - SCREW (M5 x 12) [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#46	22-32802 2	PLUG, Pipe (.125-27) Brass (1 required per assembly)
		22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ] $7.59 1 In Stock.
		18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ] $5.30 10+ In Stock.
