Parts for Mercury Marine 25 HP EFI (3 Cylinder) (4-Stroke) Intake Manifold

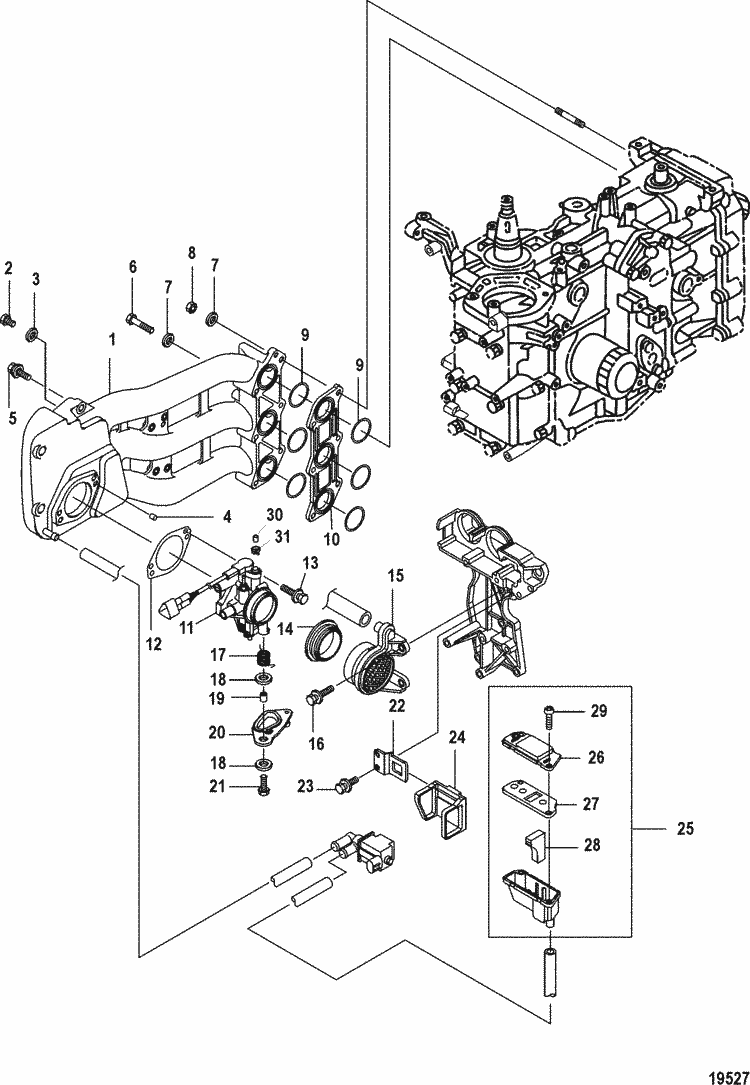

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

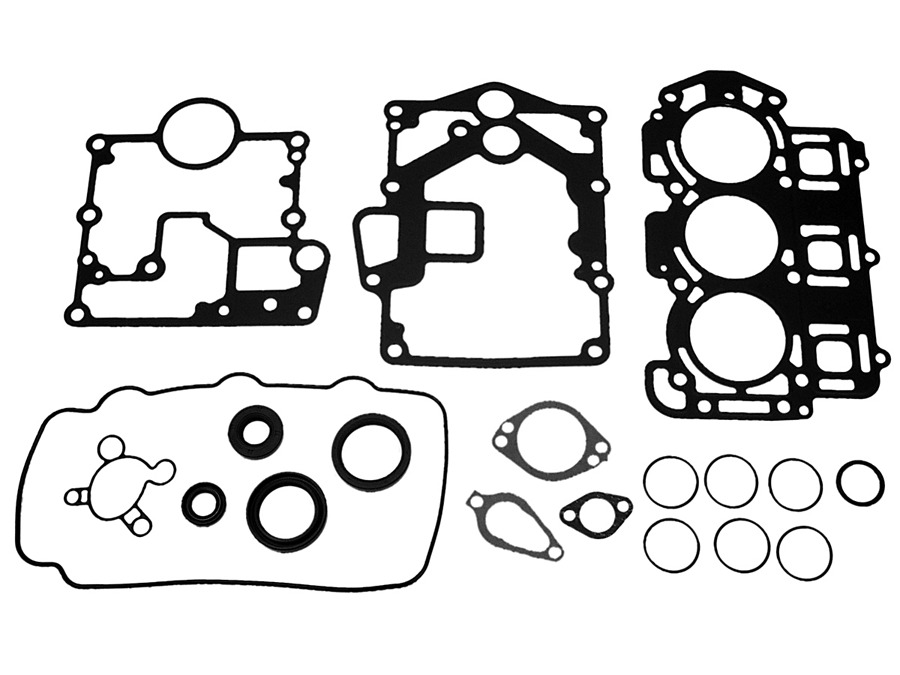

| # | 27-898101A06 | GASKET SET, Powerhead (1 required per assembly) |
  |
27-898101A06 - Powerhead Gasket Set [ More info ] Unavailable |
|
  |
|
278M0079064 - Gasket Set [ More info ] Unavailable |
| #1 | 898103T01 | MANIFOLD, Intake (1 required per assembly) |
  |
|
898103T01 - Intake Manifold [ More info ]
|
| #2 | 10-853531004 | BOLT (1 required per assembly) |
  |
|
10-853531004 - Bolt [ More info ]
|
| #3 | 12-895106002 | WASHER (1 required per assembly) |
  |
|
12-895106002 - Washer [ More info ]
|
| #4 | 17-16119 | PIN, Dowel (2 required per assembly) |
  |
|
17-16119 - Dowel Pin [ More info ]
|
| #5 | 10-823042 | BOLT (3 required per assembly) |
  |
|
10-823042 - Bolt [ More info ]
|
| #6 | 10-853531003 | BOLT (3 required per assembly) |
  |
|
10-853531003 - 10-853531003 - BOLT [ More info ] Unavailable Replaced by 10-853531001 |
  |
|
10-853531001 - Bolt [ More info ]
|
| #7 | 12-895106 | WASHER, Stainless Steel (6 required per assembly) |
  |
12-895106 - Washer, Stainless Steel [ More info ] Unavailable |
|
  |
12-879194338 - Washer - Priced Individually [ More info ] Unavailable |
|
  |
|
12-16826 - Washer, Stainless Steel [ More info ]
|
| #8 | 11-853722022 | NUT (3 required per assembly) |
  |
11-853722022 - NUT [ More info ] Unavailable |
|
  |
|
11-40021 2 - Nut [ More info ]
|
| #9 | 25-898101128 | O-RING (6 required per assembly) |
  |
|
25-898101128 - O-ring, Intake Manifold [ More info ]
|
| #10 | 898103T27 | INSULATOR (1 required per assembly) |
  |
|
898103T27 - Insulator [ More info ]
|
| #11 | 898103T22 | THROTTLE BODY ASSEMBLY (1 required per assembly) 30 - Use with References 30 and 31 |
  |
898103T22 - THROTTLE BODY ASY [ More info ] Unavailable |
|
  |
|
898103T40 - Throttle Body [ More info ]
|
| #11 | 898103T40 | THROTTLE BODY ASSEMBLY (1 required per assembly) 30- Use without References 30 and 31 |
| #11 | 898103T23 | THROTTLE BODY ASSEMBLY (1 required per assembly) 25 - Use with References 30 and 31 |
  |
898103T23 - THROTTLE BODY [ More info ] Unavailable |
|
  |
|
898103T41 - Throttle Body [ More info ]
|
| #11 | 898103T41 | THROTTLE BODY ASSEMBLY (1 required per assembly) 25 - Use without References 30 and 31 |
| #12 | 27-898101197 | GASKET, Throttle Body (1 required per assembly) |
  |
|
27-898101197 - Throttle Body Gasket [ More info ]
|
| #13 | 10-825702002 | BOLT, Stainless Steel (2 required per assembly) |
  |
10-825702002 - BOLT [ More info ] Unavailable |
|
  |
10-879194263 - Bolt [ More info ] Unavailable |
|
| #14 | 27-898101078 | GASKET (1 required per assembly) |
  |
|
27-898101078 - Gasket [ More info ]
|
| #15 | 898103T02 | SILENCER ASSEMBLY, Intake (1 required per assembly) |
  |
|
898103T02 - Intake Silencer [ More info ]
|
| #16 | 10-16705 1 | BOLT, (M6 x 20) (2 required per assembly) |
  |
|
10-16705 1 - Bolt [ More info ]
|
| #17 | 24-898101177 | SPRING (1 required per assembly) |
  |
24-898101177 - SPRING [ More info ] Unavailable |
|
  |
|
24-898103196 - Spring [ More info ]
|
| #18 | 12-16140 4 | WASHER (2 required per assembly) |
  |
|
12-16140 4 - Washer [ More info ]
|
| #19 | 23-95286 24 | COLLAR, (9.3 mm) (1 required per assembly) |
  |
23-95286 24 - COLLAR [ More info ] Unavailable |
|
  |
|
23-8M0021168 - Spacer [ More info ]
|
| #20 | 898101199 | CAM, Throttle - Black (1 required per assembly) 30 Horsepower |
  |
|
898101199 - Throttle Cam [ More info ]
|
| #20 | 898101200 | CAM, Throttle - White (1 required per assembly) 25 Horsepower |
  |
898101200 - Throttle Cam [ More info ] Unavailable |
|
  |
|
8M0109579 - Throttle Cam [ More info ]
|
| #21 | 10-823042039 | BOLT (1 required per assembly) |
  |
10-823042039 - BOLT [ More info ] Unavailable |
|
  |
10-879194250 - Bolt [ More info ] Unavailable |
|
  |
10-16166 - BOLT-TH [ More info ] Unavailable |
|
  |
|
10-40003 30 - Screw - Priced Individually [ More info ]
|
  |
|
108M0204707 - SCREW Note: Priced Individually [ More info ]
|
| #22 | 898101188 | BRACKET (1 required per assembly) |
  |
|
898101188 - Bracket [ More info ]
|
| #23 | 10-823042 7 | BOLT, (M6 x 12) (2 required per assembly) |
  |
|
10-823042 7 - Bolt [ More info ]
|
| #24 | 25-898101084 | GROMMET (1 required per assembly) |
  |
|
25-898101084 - Grommet [ More info ]
|
| #25 | 898103003 | SILENCER ASSEMBLY, Intake (1 required per assembly) |
  |
|
898103003 - Silencer- Intake [ More info ]
|
| #26 | 898103004 | COVER, Intake Silencer (1 required per assembly) |
  |
|
898103004 - Cover [ More info ]
|
| #27 | 27-898101159 | GASKET (1 required per assembly) |
  |
|
27-898101159 - Gasket [ More info ]
|
| #28 | 898101 | FILTER, Air (1 required per assembly) |
  |
|
898101 - FILTER Air [ More info ] Unavailable |
| #29 | 10-898101236 | SCREW, Tapping (2 required per assembly) |
  |
|
10-898101236 - Screw - Priced Individually [ More info ]
|
| #30 | 815037001 | PLUG, Use where Applicable (1 required per assembly) |
  |
|
815037001 - PLUG NLA [ More info ] Unavailable |
| #31 | 54-95332001 | BAND, Use where Applicable (1 required per assembly) |
  |
54-95332001 - BAND Note: Priced Individually [ More info ] Unavailable |
|
  |
|
56762 - Tie Strap - Priced Individually [ More info ]
|
