Parts for Mercury Marine 225 HP (DFI) Air Handler

Revise Search: All Models > 225 HP (DFI) > 0G590000 - 0G760299 (USA) > Air Handler

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

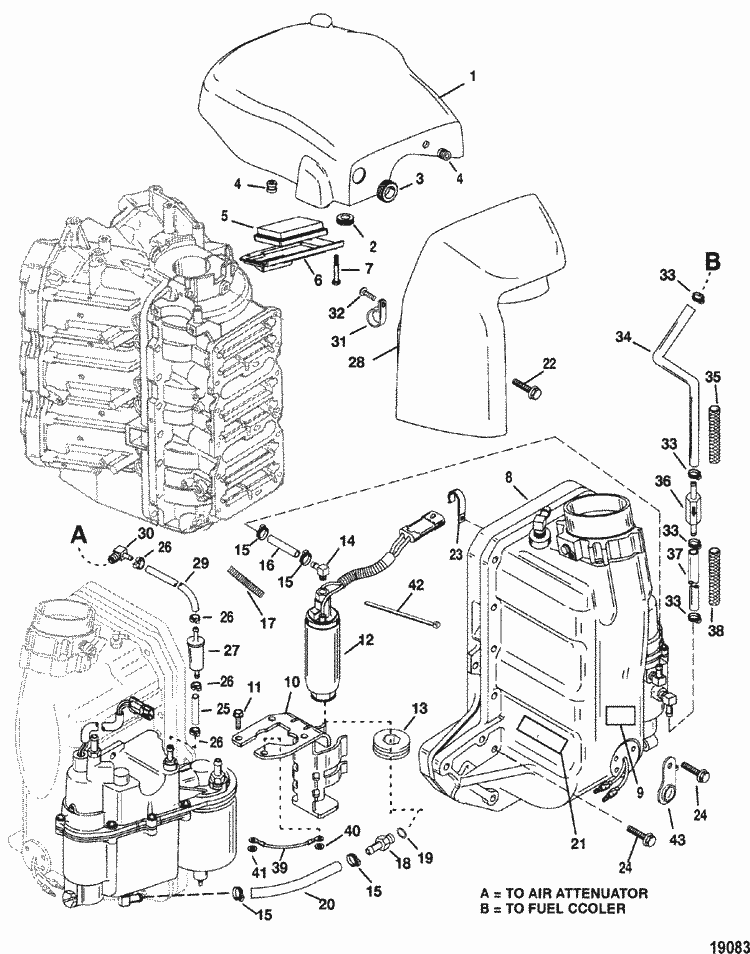

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	850296A 1	COVER (1 required per assembly)
		850296A 1 - Flywheel Cover [ More info ] Unavailable
		850296A 2 - Flywheel Cover [ More info ] Unavailable
		850296T 4 - Flywheel Cover [ More info ] Unavailable
		8M0111168 - Cover [ More info ] $386.49 Available to Order: Shipping delay up to 10 days.
#2	25-86361	GROMMET (1 required per assembly)
		25-86361 - Grommet, Battery Cable [ More info ] Unavailable
#3	25-13467	GROMMET, (.88 Inside Diameter) (1 required per assembly)
		25-13467 - Grommet, (.88 Inside Diameter) [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#4	25-821555	GROMMET (2 required per assembly)
		25-821555 - Grommet [ More info ] $2.07 1 In Stock.
		25-821555001 - Grommet [ More info ] Unavailable
		25-8M0153609 - Grommet - Priced Individually [ More info ] $5.59 1 In Stock.
#5	35-853333	FILTER, Air (1 required per assembly)
		35-853333 - FILTER-AIR [ More info ] Unavailable
		35-853333T - Air Filter [ More info ] $16.49 2 In Stock.
		18-7997 - Air Filter [ More info ] $17.99 $15.42 6 In Stock.
#6	854493	COVER (1 required per assembly)
		854493 - Cover [ More info ] Unavailable
		854493 2 - Cover [ More info ] $31.79 Available to Order: Shipping delay up to 10 days.
#7	10-40056106	SCREW, (M5 x 13) (4 required per assembly)
		10-40056106 - Screw [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#8	850287A 2	AIR HANDLER ASSEMBLY (1 required per assembly)
		850287A 2 - AIR HANDLER ASSY [ More info ] Unavailable
		850287T10 - Air Handler, NLA [ More info ] Unavailable
#9	NSS	NOT SOLD SEPARATE, Decal-Caution-Start In Gear (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#10	855756 1	BRACKET (1 required per assembly)
		855756 1 - Bracket [ More info ] Unavailable
		855756A 1 - Bracket Kit, NLA [ More info ] $75.00 $63.52 2 In Stock.
#11	10-19937 16	SCREW, (M6 x 16) (4 required per assembly)
		10-19937 16 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#12	855843 2	PUMP ASSEMBLY (1 required per assembly)
		855843 2 - Fuel Pump Assembly [ More info ] Unavailable
		8M0047624 - Fuel Pump Assembly [ More info ] Unavailable
		8M0240950 - Fuel Pump [ More info ] $700.99 In Stock
#13	25-856928	GROMMET (1 required per assembly)
		25-856928 - Grommet,NLA [ More info ] $4.31 10 In Stock.
#14	22-856844 1	ELBOW (1 required per assembly)
		22-856844 1 - Elbow [ More info ] Unavailable
		22-855802 - Elbow [ More info ] Unavailable
		22-855802A 1 - Fitting Kit [ More info ] $31.79 Available to Order: Shipping delay up to 10 days.
#15	54-13791	CLAMP, (15.7) (4 required per assembly)
		54-13791 - Clamp [ More info ] Unavailable
		54-8M0214911 - CLAMP @5 [ More info ] Unavailable
#16	32-856825	HOSE (1 required per assembly)
		32-856825 - Hose [ More info ] Unavailable
#17	23-856869 53	SLEEVE, (27.00 Inches Bulk) (1 required per assembly)
		23-856869 53 - Sleeve-27 INCH [ More info ] Unavailable
#18	22-856812	FITTING (1 required per assembly)
		22-856812 - Fitting [ More info ] Unavailable
		22-880862A 1 - Fitting Kit [ More info ] $32.89 Available to Order: Shipping delay up to 10 days.
#19	25-805062	O-RING, (.530 x .082) (1 required per assembly)
		25-805062 - O-ring, (.530 X .082) [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#20	32-856778	HOSE (1 required per assembly)
		32-856778 - Molded Hose, NLA [ More info ] $43.10 10+ In Stock.
#21	37-855577 27	DECAL, EPA Label Information (1 required per assembly)
		37-855577 27 - DECAL-EPA [ More info ] Unavailable
		37-855577A27 - Decal -epa, NLA [ More info ] Unavailable
#22	10-821300 50	SCREW, (M6 x 50) (1 required per assembly)
		10-821300 50 - Screw [ More info ] $4.49 $2.53 10+ In Stock.
#23	54-55098	J CLIP (STARBOARD) (1 required per assembly)
		54-55098 - J Clip - Priced Individually [ More info ] $4.90 5 In Stock.
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#24	10-821300 45	SCREW, (M6 x 45) (11 required per assembly)
		10-821300 45 - Screw [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#25	32-830756109	HOSE, (57.00 Inches Bulk) (1-1/4 IN.) (1 required per assembly)
		32-830756109 - Hose, 57 Inch [ More info ] Unavailable
		32-8M0047428 - Hose -57 Inch [ More info ] Unavailable
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 2 In Stock.
#26	54-816311	TIE STRAP, (8.00 Inches) (4 required per assembly)
		54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 8 In Stock.
#27	35-855896	CANISTER, Vent (1 required per assembly)
		35-855896 - Filter [ More info ] Unavailable
		35-855896T - Filter [ More info ] Unavailable
#28	854343A 4	ATTENUATOR ASSEMBLY, Air (1 required per assembly)
		854343A 4 - ATTENUATOR-AIR [ More info ] Unavailable
		854343T 4 - ATTENUATOR-AIR [ More info ] Unavailable
		854343T 7 - Attenuator Assembly [ More info ] $146.99 $124.49 10+ In Stock.
#30	22-19688 1	FITTING, (90 Degree) (1 required per assembly)
		22-19688 1 - Fitting [ More info ] $94.49 $49.81 1 In Stock.
#31	54-23567	CLIP (1 required per assembly)
		54-23567 - Clip [ More info ] $5.79 $1.17 10+ In Stock.
#32	10-69570	SCREW, (#10-16 x .750) (1 required per assembly)
		10-69570 - Screw [ More info ] $1.80 7 In Stock.
#33	54-856880	CLAMP, Hose (15.3) (4 required per assembly)
		54-856880 - Clamp [ More info ] $4.10 10+ In Stock.
		54-8M0214964 - CLAMP @5 [ More info ] Unavailable
#34	32-856826 1	HOSE (1 required per assembly)
		32-856826 1 - Hose, NLA [ More info ] $58.67 7 In Stock.
#36	21-855761	CHECK VALVE (1 required per assembly)
		21-855761 - Check Valve [ More info ] Unavailable
		21-855761 1 - Check Valve [ More info ] $57.99 Available to Order: Shipping delay up to 10 days.
#37	32-856822 39	TUBING, (17.00 Inches Bulk) (14 IN.) (1 required per assembly)
		32-856822 39 - Hose -17 Inch [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
#39	84-88807A27	CABLE ASSEMBLY (1 required per assembly)
		84-88807A27 - Cable Assembly, NLA [ More info ] Unavailable
#40	12-29245	WASHER, (.281 x .500 x .060) Stainless Steel (1 required per assembly)
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#41	12-12038	WASHER (1 required per assembly)
		12-12038 - Washer [ More info ] $2.30 3 In Stock.
		12-8M0207778 - WASHER Note: Priced Individually [ More info ] $11.89 5 In Stock.
#42	61990	TIE STRAP, (14.00 Inches) (1 required per assembly)
		61990 - Tie Strap - Priced Individually [ More info ] $0.70 4 In Stock.
#43	827507 2	RETAINER (1 required per assembly)
		827507 2 - Retainer [ More info ] Unavailable
