Parts for Mercury Marine 200 Starter Assembly

Revise Search: All Models > 200 > 3226958 - 3537530 > Starter Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	57031A 2	HOUSING ASSEMBLY, STARTER (1 required per assembly)
		57031A 2 - Housing [ More info ] Unavailable
		75349A 2 - HSG ASY,NLA [ More info ] Unavailable
#2	10-37562	SCREW, STARTER HOUSING TO CYLINDER BLOCK (1") (1 required per assembly)
		10-37562 - Screw - Priced Individually [ More info ] Unavailable
#3	13-26993	LOCKWASHER< STARTER HOUSING TO CYLINDER BLOCK SCREW (1 required per assembly)
		13-26993 - LockWasher - Priced Individually [ More info ] $0.80 10+ In Stock.
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#4	10-24644	SCREW, STARTER HOUSING TO CRANKCASE (1 3/8") (1 required per assembly)
		10-24644 - Screw - Priced Individually [ More info ] $2.33 10+ In Stock.

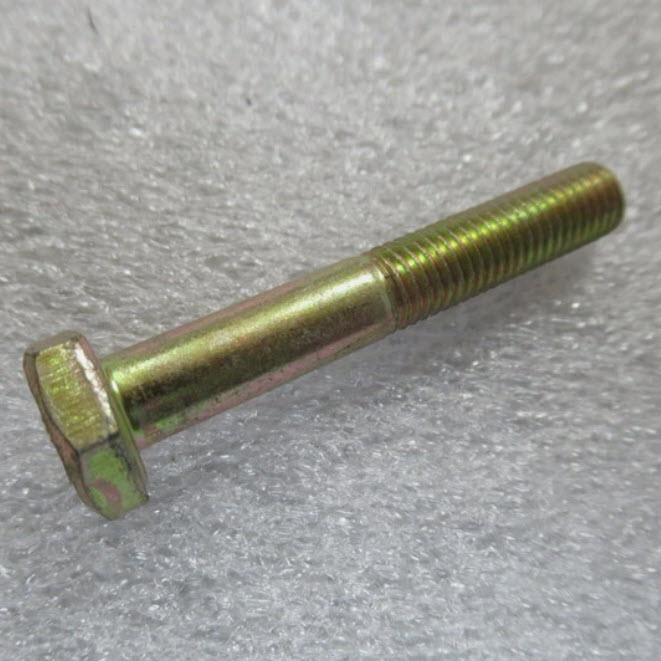

#4	10-22659	SCREW, STARTER HOUSING TO CRANKCASE (1 5/8") (1 required per assembly)
		10-22659 - Screw, NLA [ More info ] $2.49 $2.11 10+ In Stock.
#5	11-20361	NUT, STARTER HOUSING TO CRANKCASE SCREW (2 required per assembly)
		118267089 [ More info ] $1.00 10+ In Stock.
		11-826708 9 - Nut - Priced Individually [ More info ] $1.50 10 In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#6	47430	BUMPER, RUBBER - STARTER HOUSING (1 required per assembly)
		47430 - Starter Housing Rubber Bumper, NLA [ More info ] $1.80 $1.52 10+ In Stock.
#7	55860	PULLEY, STARTER CABLE (1 required per assembly)
		55860 - Starter Pulley [ More info ] $42.49 3 In Stock.
#8	10-37892	SCREW, PULLEY TO STARTER HOUSING (1") (1 required per assembly)
		10-37892 - Screw, NLA [ More info ] $4.08 10+ In Stock.
#9	53111	RETAINER, PULLEY SCREW (1 required per assembly)
		53111 - Retainer [ More info ] $0.99 6 In Stock.
		94121 - Retainer, NLA [ More info ] $2.04 $1.72 1 In Stock.
#10	23-30977	SPACER, PULLEY SCREW (1 required per assembly)
		23-30977 - Spacer [ More info ] Unavailable
		23-30977 1 - SPACER [ More info ] Unavailable
		23-30977 2 - Spacer [ More info ] $4.79 2 In Stock.
#11	11-20110	NUT, PULLEY SCREW (1 required per assembly)
		11-20110 - Nut (M10X32) [ More info ] $1.70 10+ In Stock.
#12	14-20165	TAB WASHER, SHEAVE SHAFT NUT (1 required per assembly)
		14-20165 - Tab Washer - Priced Individually [ More info ] $9.22 10+ In Stock.
#13	11-20166	NUT, SHEAVE SHAFT (LEFT HAND THREAD) (1 required per assembly)
		11-20166 - Nut, Sheave Shaft ( Left Hand Thread) [ More info ] $3.22 10+ In Stock.
#14	20155	RETAINER, STARTER SPRING (1 required per assembly)
		20155 - Retainer, Starter Spring [ More info ] $30.17 10+ In Stock.
#15	24-29340A 1	SPRING, STARTER REWIND (1 required per assembly)
		24-29340A 1 - Spring, Starter Rewind [ More info ] Unavailable
		24-29340T 1 - Recoil Spring [ More info ] Unavailable
		24-29340T02 - Recoil Spring, NLA [ More info ] Unavailable
		18-6506 - Rewind Spring 24-29340A1 [ More info ] $25.99 $25.07 2 In Stock.

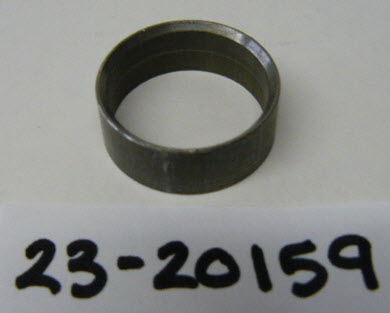

#16	23-20159	BUSHING, SPRING GUIDE (1 required per assembly)
		23-20159 - Bushing, NLA [ More info ] $13.99 $11.84 10 In Stock.
#17	50-45952	STARTER SHEAVE ASSEMBLY (1 required per assembly)
		50-45952 - SHEAVE [ More info ] Unavailable
		50-64008A 1 - Sheave Assembly, NLA [ More info ] Unavailable
#18	13-29720	WASHER, WAVE - STARTER PAWL (3 required per assembly)
		13-29720 - Wave Washer - Priced Individually [ More info ] $1.27 6 In Stock.
#19	20162	PAUL, STARTER (3 required per assembly)
		20162 - Starter Pawl - Priced Individually [ More info ] $27.99 $23.70 10+ In Stock.
#20	23-45482	SPACER, SHEAVE SHAFT (1 required per assembly)
		23-45482 - Spacer - Sheave Shaft [ More info ] Unavailable
		23-64006 - Bushing, NLA [ More info ] Unavailable
		23-65720 - Bushing, NLA [ More info ] $24.20 $20.50 6 In Stock.
#21	26179	RETAINER, STARTER SHEAVE TO PLATE (1 required per assembly)
		26179 - Retainer, NLA [ More info ] $29.99 $25.39 10+ In Stock.
#22	12-35559	WASHER, STARTER SHEAVE RETAINER (1 required per assembly)
		12-35559 - Washer - Priced Individually [ More info ] $5.39 10+ In Stock.
#23	13-20160	WASHER, WAVE - STARTER SHEAVE TENSION (1 required per assembly)
		13-20160 - Wave Washer - Priced Individually [ More info ] $3.79 10+ In Stock.
#24	20164	PLATE< RETAINER - STARTER PAWL (1 required per assembly)
		20164 - Plate Retainer, Starter Pawl [ More info ] $29.92 10+ In Stock.
#25	24-45823	SPRING, PAUL RETAINER PLATE (1 required per assembly)
		24-45823 - Spring, Pawl Retainer Plate,NLA [ More info ] $14.00 10+ In Stock.
#26	45481	SHAFT, SHEAVE (1 required per assembly)
		45481 - Shaft [ More info ] Unavailable
		65869A 1 - Shaft [ More info ] Unavailable
#27	56305	BRACKET, MOUNTING - TOP COWL (REAR) (1 required per assembly)
		56305 - Bracket [ More info ] Unavailable
		64887 - Bracket [ More info ] Unavailable
		74325 - Bracket, NLA [ More info ] $36.00 $30.49 5 In Stock.
#29	57927	MOUNT, RUBBER - REAR MOUNTING BRACKET TO CYLINDER BLOCK (1 required per assembly)
		57927 - Rubber Mount, NLA [ More info ] $43.10 10+ In Stock.
#31	397-421A 3	GROUND WIRE ASS'Y, MOUNTING BRACKET TO STARTER HOUSING (1 required per assembly)
		397-421A 3 - Ground Strap, NLA [ More info ] $2.50 $2.13 6 In Stock.
#32	10-30663	SCREW, GROUND WIRE TO MOUNTING BRACKET (3/8") (1 required per assembly)
		10-30663 - Screw Note: Priced Individually [ More info ] Unavailable
		10-62568 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#33	47422	BRACKET< MOUNTING - TOP COWL (FRONT) (1 required per assembly)
		47422 - Bracket [ More info ] Unavailable
		64674 - Bracket, NLA [ More info ] Unavailable
#37	50-22791A 1	STARTER CABLE ASSEMBLY (1 required per assembly)
		50-22791A 1 - ROPE Note: Priced Individually [ More info ] Unavailable
		50-12066A 1 - Starter Rope Assembly [ More info ] Unavailable
		50-28985A 2 - Starter Rope Assembly [ More info ] Unavailable
		50-12066A 9 - Starter Rope , Priced Individually [ More info ] Unavailable
		50-12066Q 9 - Starter Rope , Priced Individually [ More info ] Unavailable
		50-12066Q10 - Starter Rope - Priced Individually [ More info ] $13.59 5 In Stock.
		18-4915 - Pull Rope, 50-12066Q9 [ More info ] $4.79 $4.53 4 In Stock.
		50-12066K10 - Starter Rope - Priced Individually [ More info ] $14.99 2 In Stock.
#38	30782	HANDLE, STARTER CABLE (1 required per assembly)
		30782 - Starter Cable Handle [ More info ] $18.00 2 In Stock.
		79470A 1 - Rope Start Handle and Retainer [ More info ] $25.25 1 In Stock.
#39	28748	RETAINER, STARTER CABLE AND HANDLE (1 required per assembly)
		28748 - Starter Cable Handle Retainer - Priced Individually [ More info ] $14.99 2 In Stock.
		77997A 1 - Retainer - Priced Individually [ More info ] Unavailable
