Parts for Mercury Marine 200 Shift Control Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 39323 | HANDLE, NYLON - SHIFT CONTROL (1,1 required per assembly) |
  |
39323 - Shift Control Handle [ More info ] Unavailable |
|
  |
|
59107 - Shift Control Handle [ More info ]
|
| #2 | 12-29245 | WASHER, SHIFT CONTROL HANDLE (1,1 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #3 | 11-39305 | NUT, SHIFT CONTROL HANDLE TO SHIFT SHAFT (1,1 required per assembly) |
  |
11-39305 - Nut, Shift Control Handle To Shaft [ More info ] Unavailable |
|
  |
11-33825 - Nut, Reverse Lock Hook Screw [ More info ] Unavailable |
|
  |
|
11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #4 | 39399 | BRACKET, MOUNTING - SHIFT SHAFT (1,1 required per assembly) |
  |
39399 - Bracket [ More info ] Unavailable |
|
  |
|
64122 - Bracket, NLA [ More info ] Unavailable |
| #5 | 10-22421 | SCREW, MOUNTING BRACKET TO POWERHEAD PLATE (1 1/4") (2,2 required per assembly) |
  |
10-22421 - Screw, NLA [ More info ] Unavailable |
|
  |
|
10-56500 - Screw, NLA [ More info ]
|
| #6 | 11-46887 | NUT, MOUNTING BRACKET SCREW (2,2 required per assembly) |
  |
11-46887 - Nut, (1/4-28) [ More info ] Unavailable |
|
  |
11-20184 - Nut, (1/4-28x7/32) [ More info ] Unavailable |
|
  |
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #7 | 24-39627 | SPRING, DETENT - MOUNTING BRACKET (1,1 required per assembly) |
  |
|
24-39627 - Spring, Detent [ More info ]
|
| #8 | 39601 | PLATE, DETENT SPRING (1,1 required per assembly) |
  |
|
|
| #9 | 10-20100 | SCREW, PLATE AND SPRING TO MOUNTING BRACKET (1/2") (2,2 required per assembly) |
  |
|
10-20100 - Screw - Priced Individually [ More info ]
|
  |
|
10-69022 - Screw [ More info ]
|
| #10 | 23-30678 | BUSHING, NYLON - SHIFT SHAFT (2,2 required per assembly) |
  |
|
23-30678 - Bushing, NLA [ More info ]
|
| #11 | 39588 | CAM, DETENT - SHIFT SHAFT (1,1 required per assembly) |
  |
|
39588 - Shift Shaft Detent Cam, NLA [ More info ]
|
| #12 | 17-25905 | PIN, RILL - DETENT CAM TO SHIFT SHAFT (1,1 required per assembly) |
  |
|
17-25905 - Pin, Roll, NLA [ More info ]
|
| #13 | 13-36206 | WASHER, WAVE - SHIFT SHAFT (1,1 required per assembly) |
  |
|
13-36206 - Wave Washer - Priced Individually [ More info ] Unavailable |
| #14 | 12-20553 | WASHER, SHIFT SHAFT (AR,AR required per assembly) |
  |
|
12-20553 - Washer - Priced Individually [ More info ]
|
| #15 | 39415 | LEVER, SHIFT CONTROL (1,1 required per assembly) |
  |
|
|
| #17 | 39632 | SHAFT, SHIFT (HORIZONTAL) (1,1 required per assembly) |
  |
|
39632 - Shaft , NLA [ More info ] Unavailable |
| #18 | 15-39952A 1 | SHIM, SECTOR GEAR TO NYLON BUSHING(.002-10-15) (AR,AR required per assembly) |
  |
|
15-39952A 1 - Shim, NLA [ More info ] Unavailable |
| #19 | 43-33994 | GEAR, SECTOR, SHIFT SHAFT (1,1 required per assembly) |
  |
43-33994 - Sector Gear [ More info ] Unavailable |
|
  |
|
43-30802 - Sector Gear [ More info ]
|
| #21 | 11-20361 | NUT, SECTOR GEAR TO SHIFT SHAFT (1,1 required per assembly) |
  |
|
|
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|
| #22 | 39398A 1 | SHIFT CONTROL SHAFT ASSEMBLY, VERTICAL (1,1 required per assembly) |
  |
39398A 1 - SHAFT ASSY [ More info ] Unavailable |
|
  |
56828A 1 - Shaft Assembly [ More info ] Unavailable |
|
  |
|
61009A 2 - Shaft Assembly, NLA [ More info ]
|
| #23 | 43-39477 | GEAR, SECTOR - SHIFT CONTROL SHAFT (1,1 required per assembly) |
  |
|
43-39477 - Sector Gear [ More info ] Unavailable |
| #24 | 25-38933 | "O" RING, SHIFT CONTROL SHAFT (1,1 required per assembly) |
  |
|
25-38933 - O-Ring, Lower Shift Control Shaft [ More info ]
|
  |
|
18-7120 - O-Ring 322598 [ More info ]
|
| #25 | 23-30677 | BUSHING, NYLON - SHIFT CONTROL SHAFT (1,1 required per assembly) |
  |
|
23-30677 - Bushing, NLA [ More info ]
|
| #26 | 39486 | FOLLOWER, NEUTRAL SPEED LIMITER (1, required per assembly) |
  |
|
39486 - DISCONTINUED,NLA [ More info ] Unavailable |
| #26 | 46451 | FOLLOWER, NEUTRAL SPEED LIMITER (,1 required per assembly) SERIAL 00000000-02189600 |
  |
46451 - FOLLOWER [ More info ] Unavailable |
|
  |
46836 - Neutral Speed Limiter Follower, NLA [ More info ] Unavailable |
|
  |
|
58979 - Neutral Speed Limiter Follower, NLA [ More info ]
|
| #26 | 46836 | FOLLOWER, NEUTRAL SPEED LIMITER (,1 required per assembly) SERIAL 02189601-09999999 |
| #27 | 10-24644 | SCREW, FOLLOWER TO POWERHEAD MOUNTING PLATE (1 3/8") (1,1 required per assembly) |
  |
|
10-24644 - Screw - Priced Individually [ More info ]
|
| #28 | 15-28212 | SHIM, LIMITER FOLLOWER SCREW (1,1 required per assembly) |
  |
|
15-28212 - Shim, NLA [ More info ] Unavailable |

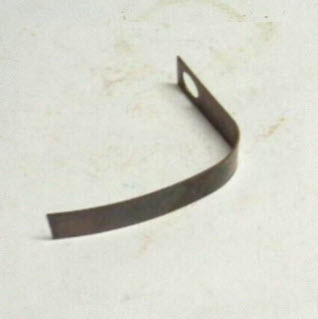

| #30 | 24-39675 | SPRING, NEUTRAL SPEED LIMITER FOLLOWER (1,1 required per assembly) |
  |
|
24-39675 - Spring, Neutral Speed Limiter Follower,NLA [ More info ]
|
| #31 | 10-30663 | SCREW, SPRING TO LIMITER FOLLOWER (1,1 required per assembly) |
  |
10-30663 - Screw Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #32 | 46837 | STOP, OVER-SPEED LIMITER (,1 required per assembly) SERIAL 02189601-09999999 |
  |
46837 - Stop [ More info ] Unavailable |
|
  |
|
72857 - Stop, NLA [ More info ]
|
| #33 | 12-24676 | WASHER, LIMITER STOP SCREW (,1 required per assembly) SERIAL 02189601-09999999 |
  |
|
12-24676 - Washer, (.200 X .440 X .032) [ More info ]
|
| #34 | 10-46898 | SCREW, LIMITER STOP TO FOLLOWER (7/16") (,1 required per assembly) SERIAL 02189601-09999999 |
  |
10-46898 - Screw [ More info ] Unavailable |
|
  |
|
10-35400 - Screw - Priced Individually, NLA [ More info ]
|
