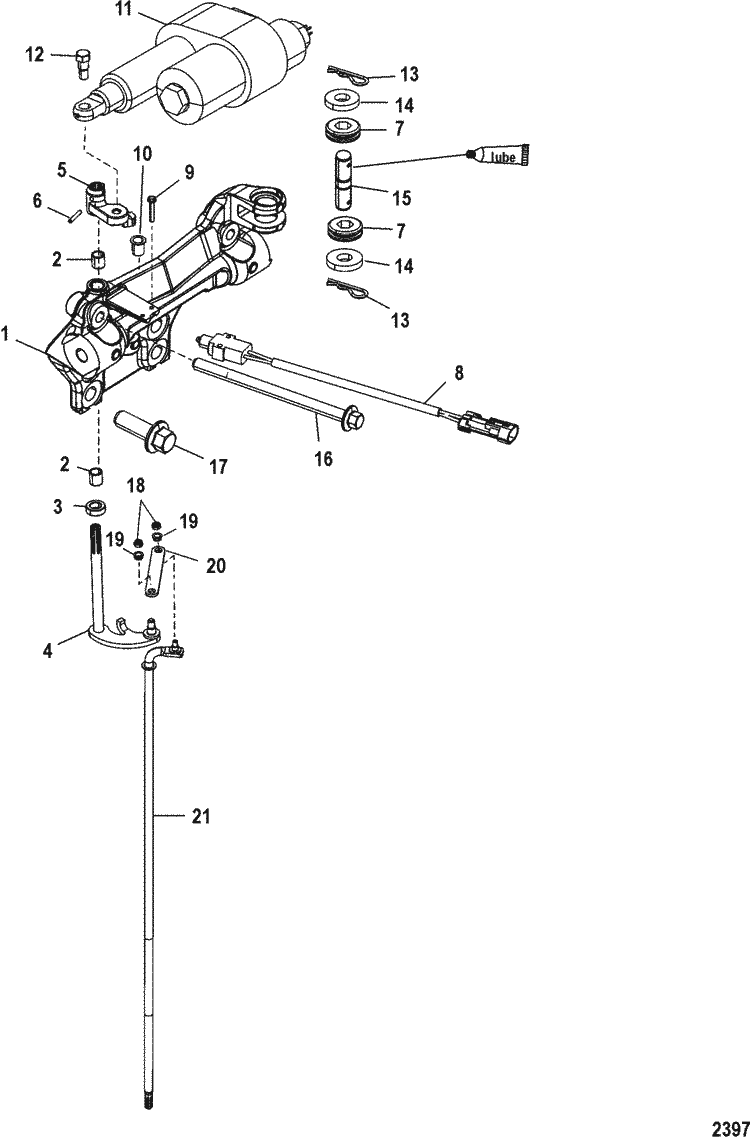

Parts for Mercury Marine 200 HP Verado (4-Stroke) (6 Cylinder) Upper Shift Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 888994T03 | BRACKET ASSEMBLY, Front Mount (1 required per assembly) |
  |
888994T03 - Bracket [ More info ] Unavailable |
|
  |
|
888994T04 - Bracket Assembly [ More info ] Unavailable |
  |
|
8M0103311 - Bracket ASSY [ More info ]
|
| #1 | NSS | NOT SOLD SEPARATE, Bracket (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #2 | 23-892417 | BUSHING (2 required per assembly) |
  |
|
23-892417 - Bushing [ More info ]
|
| #3 | 23-892049 | SPACER (1 required per assembly) |
  |
23-892049 - SPACER [ More info ] Unavailable |
|
  |
|
23-8M0047763 - Spacer [ More info ]
|
| #4 | 885506001 | SHIFT SHAFT (1 required per assembly) |
  |
|
885506001 - Ord 8M0026131, NLA [ More info ] Unavailable |
  |
|
8M0047949 - Bell Crank [ More info ]
|
| #5 | 889727001 | BELL CRANK (1 required per assembly) |
  |
|
889727001 - Bell Crank [ More info ]
|
| #6 | 17-25319 | PIN, (.125 x 0.75 Inches) (1 required per assembly) |
  |
|
17-25319 - Pin, (.125 X 0.75 Inches) [ More info ]
|
| #7 | 25-833155 | GROMMET (2 required per assembly) |
  |
|
25-833155 - Grommet [ More info ]
|
| #8 | 87-889514A01 | SWITCH (1 required per assembly) |
  |
87-889514A01 - Switch [ More info ] Unavailable |
|
  |
87-8M0052939 - Switch [ More info ] Unavailable |
|
  |
|
87-8M0207794 - SWITCH [ More info ]
|
| #9 | 10-880750 20 | SCREW, (M3 x 20) (2 required per assembly) |
  |
|
10-880750 20 - Screw [ More info ]
|
| #10 | 23-85999 | BUSHING (1 required per assembly) |
  |
|
23-85999 - Bushing [ More info ]
|
| #11 | 864289A03 | SHIFT ACTUATOR (1 required per assembly) |
  |
864289A03 - SHIFT ACTURATOR [ More info ] Unavailable |
|
  |
|
864289A04 - CHECK EPC FOR P/ [ More info ] Unavailable |
| #12 | 10-885509 1 | SCREW (1 required per assembly) |
  |
|
10-885509 1 - Screw [ More info ]
|
| #13 | 18-885512 | COTTER PIN (2 required per assembly) |
  |
|
18-885512 - Pin -hair - Priced Individually [ More info ]
|
| #14 | 12-885511003 | WASHER (2 required per assembly) |
  |
|
12-885511003 - Washer - Priced Individually [ More info ]
|
| #15 | 17-895770 | Pin, Pivot (1 required per assembly) |
  |
|
17-895770 - Pivot Pin [ More info ]
|

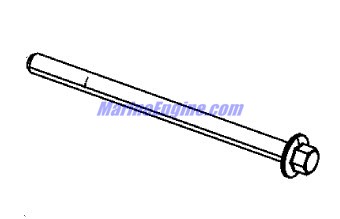

| #16 | 10-895811155 | SCREW, (M10 x 155) (2 required per assembly) |
  |
10-895811155 - Screw [ More info ] Unavailable |
|
  |
|
10-8M0207826 - SCREW [ More info ] Unavailable |
| #17 | 10-885109 40 | SCREW, (M14) (4 required per assembly) |
  |
|
10-885109 40 - Screw [ More info ] Unavailable |
| #18 | 11-40138 6 | NUT, (M6) Stainless Steel (2 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #19 | 23-97896 | BUSHING (2 required per assembly) |
  |
|
23-97896 - Bushing [ More info ]
|
| #20 | 885505 | LINK, Shift Shaft (1 required per assembly) |
  |
|
885505 - Shift Link Shaft [ More info ]
|
| #21 | 888987001 | SHAFT, Shift (1 required per assembly) (Long) |
  |
888987001 - Shift Shaft [ More info ] Unavailable |
|
  |
8M0026134 - SHAFT-SHIFT [ More info ] Unavailable |
|
  |
8M0048178 - Shift Shaft Long [ More info ] Unavailable |
|
  |
|
8M0181378 - SHAFT SHIFT UPPER [ More info ]
|
| #21 | 888987002 | SHIFT SHAFT (1 required per assembly) (X-Long) |
  |
888987002 - Shift Shaft XL [ More info ] Unavailable |
|
  |
888987T04 - SHAFT-SHIFT XL [ More info ] Unavailable |
|
  |
8M0048179 - Shift Shaft XL [ More info ] Unavailable |
|
  |
|
8M0183223 - SHIFT SHAFT UPPER [ More info ]
|
| #21 | 888987003 | SHIFT SHAFT (1 required per assembly) (XX-Long) |
  |
888987003 - Shift Shaft XXL\ [ More info ] Unavailable |
|
  |
888987T05 - SHAFT-SHIFT XXL [ More info ] Unavailable |
|
  |
8M0048180 - Shift Shaft XXL [ More info ] Unavailable |
|
  |
|
8M0180097 - SHAFT SHIFT XXL [ More info ]
|
