Parts for Mercury Marine 200 HP Verado (4-Stroke) (4 Cylinder) Fuel Supply Module
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 880596T08 | MODULE, Fuel Supply (1 required per assembly) |
  |
880596T08 - MODULE-FUELSUPPLY [ More info ] Unavailable |
|
  |
880596T11 - Fuel Supply Module [ More info ] Unavailable |
|
  |
|
8M0130901 - FUEL SUPPLY MOD [ More info ]
|
| # | 26-880596A03 | REPAIR KIT, Seal (1 required per assembly) |
  |
|
26-880596A03 - Repair Kit [ More info ]
|
| # | 889283A01 | TOOL KIT, Fuel Priming (1 required per assembly) |
  |
|
889283A01 - Prime Tool Kit [ More info ]
|
| #1 | 84-880596520 | HARNESS ASSEMBLY (1 required per assembly) |
  |
84-880596520 - HARNESS [ More info ] Unavailable |
|
  |
|
84-8M0051183 - 84-8M0051183 - HARNESS [ More info ] Unavailable Replaced by 84-8M0056167 |
  |
|
848M0056167 - Harness Assembly [ More info ] Unavailable |
| #2 | 53-880596515 | CLIP (1 required per assembly) |
  |
|
53-880596515 - Clip [ More info ]
|
| #3 | 25-855362001 | GROMMET (3 required per assembly) |
  |
|
25-855362001 - Grommet, Coolant Reservoir [ More info ]
|
| #4 | 23-855364 | BUSHING (3 required per assembly) |
  |
|
23-855364 - Bushing [ More info ]
|
| #5 | 880596T50 | COVER KIT (1 required per assembly) |
  |
|
880596T50 - Cover [ More info ]
|
| #6 | 10-880596513 | SCREW (8 required per assembly) |
  |
|
10-880596513 - Screw [ More info ]
|
| #7 | 880596503 | REGULATOR, With O-Rings (1 required per assembly) |
  |
|
880596503 - Regulator [ More info ]
|
| #8 | 54-880596512 | CLAMP (2 required per assembly) |
  |
|
54-880596512 - Clamp [ More info ]
|
| #9 | 32-880596511 | HOSE (1 required per assembly) |
  |
32-880596511 - Hose [ More info ] Unavailable |
|
  |
|
32-880596A05 - Hose Kit [ More info ]
|
| #10 | 880596524 | FLOAT (1 required per assembly) |
  |
880596524 - FLOAT [ More info ] Unavailable |
|
  |
8M0007943 - Float [ More info ] Unavailable |
|
  |
|
8M6000359 - Float [ More info ]
|
| #11 | 880596T60 | PUMP ASSEMBLY, Fuel - High Pressure (1 required per assembly) |
  |
|
880596T60 - Fuel Pump Kit [ More info ]
|
  |
|

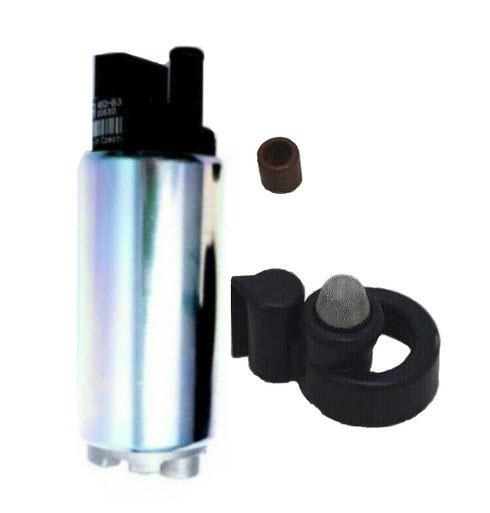

1399-39614 - Fuel Pump 880596T60 [ More info ]
|
| #12 | 880596525 | CUSHION (1 required per assembly) |
  |
|
880596525 - Cushion [ More info ]
|
| #13 | 26-8M0026760 | SEAL (1 required per assembly) |
  |
|
26-8M0026760 - Seal [ More info ]
|
| #14 | 26-880596510 | SEAL (1 required per assembly) |
  |
|
26-880596510 - Seal [ More info ]
|
| #15 | 880596T58 | PUMP KIT, Fuel - Lift (1 required per assembly) |
  |
|
880596T58 - Fuel Pump Lift [ More info ]
|
  |
|
18-7346 - Electric Fuel Pump Mercury [ More info ]
|
| #16 | 880596509 | ISOLATOR (1 required per assembly) |
  |
|
880596509 - Isolator [ More info ] Unavailable |
| #17 | 26-880596502 | SEAL (1 required per assembly) |
  |
|
26-880596502 - Seal [ More info ]
|
| #18 | 880596T51 | HOUSING ASSEMBLY (1 required per assembly) |
  |
880596T51 - Housing [ More info ] Unavailable |
|
  |
|
880596501 - Housing [ More info ]
|
| #19 | 19-880596516 | PLUG (1 required per assembly) |
  |
|
19-880596516 - Plug [ More info ]
|
| #20 | 25-880596517 | O-RING (1 required per assembly) |
  |
|
25-880596517 - O-Ring [ More info ]
|
