Parts for Mercury Marine 200 HP (3.0L EFI) Port Bleed System

Revise Search: All Models > 200 HP (3.0L EFI) > 1B504989 & Up (USA) > Port Bleed System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

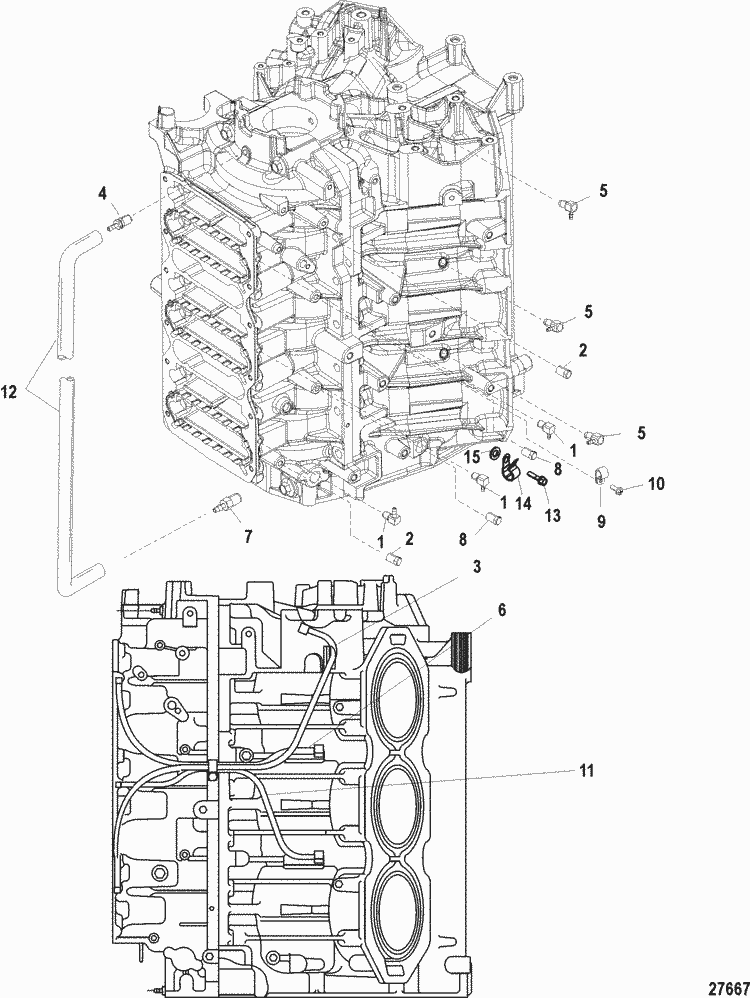

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	883892A07	POWERHEAD ASSEMBLY (1 required per assembly) (225)
		883892A07 - Powerhead 225EFI 3L [ More info ] Unavailable
#	883894A07	POWERHEAD ASSEMBLY (1 required per assembly) (250)
		883894A07 - Powerhead 250EFI 3L [ More info ] Unavailable
#	891823A07	POWERHEAD ASSEMBLY (1 required per assembly) (200)
		891823A07 - Powerhead 200EFI 3L [ More info ] Unavailable
#1	21-828218 2	CHECK VALVE (3 required per assembly)
		21-828218 2 - Check Valve [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#2	22-827201 1	PIPE PLUG (2 required per assembly)
		22-827201 1 - Plug [ More info ] $15.59 Available to Order: Shipping delay up to 10 days.
#3	32-856060 65	TUBING, (38.00 Inches Bulk) (Cut to 20-1/2 Inches) (1 required per assembly)
		32-856060 65 - Tubing-38 Inch [ More info ] Unavailable
		328M0054152 - Tubing-39 Inch [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#4	21-815923 4	CHECK VALVE (1 required per assembly)
		21-815923 4 - Check Valve [ More info ] $15.59 $12.48 3 In Stock.
#5	21-859235 2	CHECK VALVE, 90 Degree (.0625-27) (3 required per assembly)
		21-859235 2 - Check Valve [ More info ] $32.19 Available to Order: Shipping delay up to 10 days.
#7	21-42658 5	CHECK VALVE (1 required per assembly)
		21-42658 5 - Check Valve [ More info ] $25.59 Available to Order: Shipping delay up to 10 days.
#9	54-23567	CLIP (1 required per assembly)
		54-23567 - Clip [ More info ] $5.79 $1.17 10+ In Stock.
#10	10-878608	SCREW, (#10-16 x .500) (1 required per assembly)
		10-878608 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#12	32-892024122	TUBING, (240.00 Inches Bulk) (Cut to 22-1/2 Inches) (1 required per assembly)
		32-892024122 - Tubing - 20 Feet [ More info ] $49.32 3 In Stock.
#13	10-818934 14	SCREW, (M8 x 14) (1 required per assembly)
		10-818934 14 - Screw [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#14	54-859172	CLAMP (1 required per assembly)
		54-859172 - Clamp [ More info ] $5.19 1 In Stock.
#15	12-36001	WASHER (1 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $1.25 $0.91 2 In Stock.
