Parts for Mercury Marine 200 HP (3.0L EFI) Coil Plate

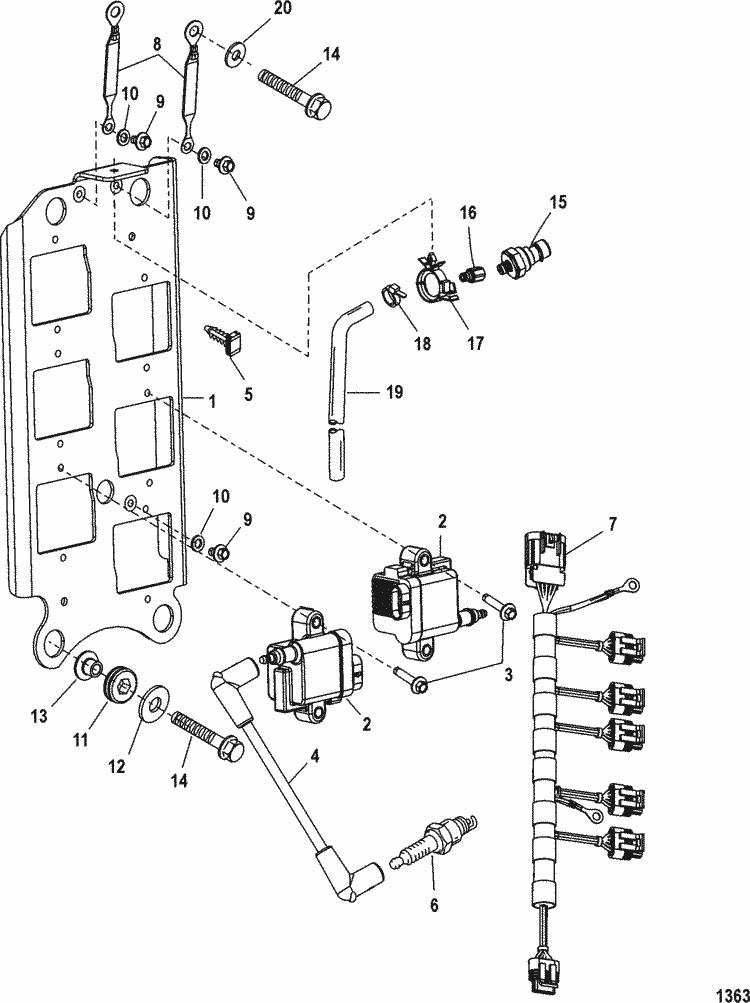

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 84-854839T02 | HARNESS ASSEMBLY, 5 Pin (1 required per assembly) |
  |
84-854839T02 - Harness-5 Pin [ More info ] Unavailable |
|
  |
|
879346A51 - KT-5 Pin Delphi [ More info ]
|
| #1 | 850295T 2 | PLATE, Coil Mounting (1 required per assembly) |
  |
|
850295T 2 - Coil Plate [ More info ]
|
| #2 | 339-879984A 1 | COIL KIT (6 required per assembly) |
  |
339-879984A 1 - Ignition Coil Kit [ More info ] Unavailable |
|
  |
300-879984T01 - Ignition Coil [ More info ] Unavailable |
|
  |
|
300-8M0077471 - Ignition Coil [ More info ]
|
| #3 | 10-821291 30 | SCREW, (M6 x 30) (12 required per assembly) |
  |
|
10-821291 30 - Screw [ More info ]
|
| #4 | 84-881908T | CABLE SET (1 required per assembly) |
  |
|
84-881908T - Cable Set, Six Wires [ More info ]
|
  |
|
18-28086 - Plug Wire Set 84-881908T, 6 Wires [ More info ]
|
  |
|
18-28085 - Plug Wire Set 84-881908T, 4 Wires Only [ More info ]
|
  |
|
18-28083 - Wire, Plug 84-881908T, 1 Wire [ More info ]
|
| #5 | 54-828991T | CLIP (Included with Coil Harness) (1 required per assembly) |
  |
|
54-828991T - Clip [ More info ]
|
| #6 | 33-941 | SPARK PLUG (6 required per assembly) |
  |
|
33-941 - Spark Plug #BR8HS - Priced Individually [ More info ] Unavailable |
  |
|
BR8HS - NGK Spark Plug, 4322 [ More info ]
|
  |
|
QL77CC - Champion Spark Plug ( #941M) [ More info ]
|
| #7 | 84-882757T02 | HARNESS ASSEMBLY, Coil (1 required per assembly) |
  |
|
84-882757T02 - Coil Harness [ More info ]
|
| #8 | 84-858414A 1 | CABLE ASSEMBLY, Braided (2 required per assembly) |
  |
|
84-858414A 1 - Cable [ More info ]
|
| #9 | 10-821291 10 | SCREW, (M6 x 10) (3 required per assembly) |
  |
|
10-821291 10 - Screw [ More info ]
|
| #10 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (3 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #11 | 25-833155 | GROMMET (4 required per assembly) |
  |
|
25-833155 - Grommet [ More info ]
|
| #12 | 12-40023 18 | WASHER (4 required per assembly) |
  |
|
12-40023 18 - Washer - Priced Individually [ More info ]
|
| #13 | 23-850234 1 | BUSHING (4 required per assembly) |
  |
|
23-850234 1 - Bushing [ More info ]
|
| #14 | 10-818934 35 | SCREW, (M8 x 35) (4 required per assembly) |
  |
|
10-818934 35 - Screw [ More info ]
|
| #15 | 881879A 7 | SENSOR KIT, (0-50 PSI) (1 required per assembly) |
  |
|
881879A 7 - Sensor Kit [ More info ] Unavailable |
| #16 | 22-892403 | FITTING (1 required per assembly) |
  |
22-892403 - Fitting [ More info ] Unavailable |
|
  |
|
22-8M0207782 - SPACER [ More info ] Unavailable |
| #17 | 54-883066 | CLIP, (.865) (1 required per assembly) |
  |
|
54-883066 - Clip [ More info ]
|
| #18 | 54-816311T | TIE STRAP, (8.00 Inches) (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #19 | 32-859785 71 | TUBING, (52.00 Inches Bulk) (Cut to 18 Inches) (1 required per assembly) |
  |
|
32-859785 71 - Hose - 52 Inch [ More info ]
|
| #20 | 12-36001 | WASHER (2 required per assembly) |
  |
|
12-36001 - Washer - Priced Individually [ More info ]
|
  |
|
18-4270 - Washer 12-36001 [ More info ]
|
