Parts for Mercury Marine 200 HP (3.0L EFI) Vapor Separator Components

Revise Search: All Models > 200 HP (3.0L EFI) > 0T750164 - 0T800999 (USA) > Vapor Separator Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

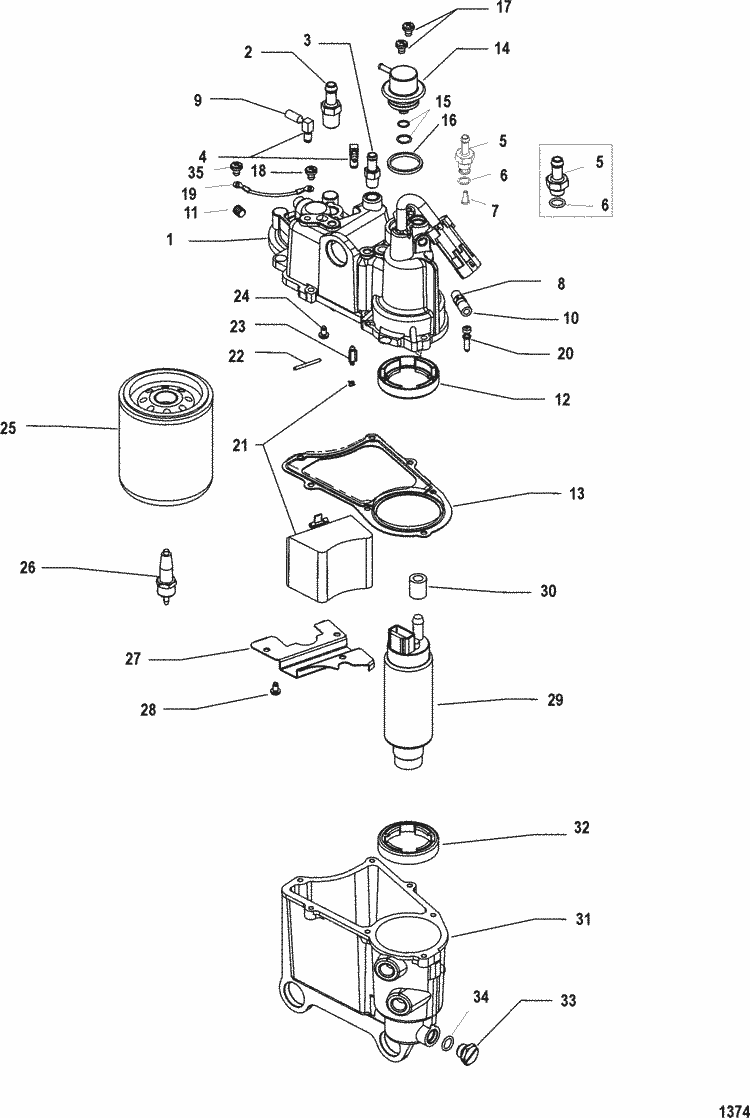

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	883245T 2	COVER KIT (1 required per assembly)
		883245T 2 - Cover Kit [ More info ] Unavailable
		883245T04 - Cover Kit [ More info ] $594.49 Available to Order: Shipping delay up to 10 days.
#2	22-881740	FITTING, Straight (1 required per assembly)
		22-881740 - Fitting [ More info ] $11.09 Available to Order: Shipping delay up to 10 days.
#3	22-883249	FITTING (1 required per assembly)
		22-883249 - Fitting [ More info ] $16.49 Available to Order: Shipping delay up to 10 days.
#4	NSS	NOT SOLD SEPARATE, Elbow (2 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#5	22-855437A 2	FITTING KIT, Pump Outlet (1 required per assembly) (Use Without Filter)
		22-855437A 2 - Fitting Kit [ More info ] $26.89 $25.76 6 In Stock.
#5	22-885186A 1	FITTING KIT (1 required per assembly) (Use with Filter)
		22-885186A 1 - Fitting Kit [ More info ] $31.99 Available to Order: Shipping delay up to 10 days.
#6	25-883209	O-RING (1 required per assembly) (Use Without Filter)
		25-883209 - O-Ring [ More info ] Unavailable
		258M0062785 - O-Ring [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#6	25-831985	O-RING, (.468 x .078) (1 required per assembly) (Use with Filter)
		25-831985 - O-ring, (.468 X .078) [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#7	35-885188	FILTER (1 required per assembly)
		35-885188 - Filter [ More info ] $18.49 5 In Stock.
#8	883219	VALVE (1 required per assembly)
		883219 - Diagnostic Valve [ More info ] $27.49 Available to Order: Shipping delay up to 10 days.
#9	22-15026	CAP (1 required per assembly)
		22-15026 - Fitting [ More info ] $4.99 10 In Stock.
#10	883220	CAP (1 required per assembly)
		883220 - Valve Cap [ More info ] Unavailable
#11	19-881830	PLUG (1 required per assembly)
		19-881830 - PLUG [ More info ] Unavailable
		19-883208 - Plug [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#12	26-883248	SEAL (1 required per assembly)
		26-883248 - Seal [ More info ] $15.49 Available to Order: Shipping delay up to 10 days.
#13	27-883252	GASKET (1 required per assembly)
		27-883252 - Fuel Bowl To Cover Gasket [ More info ] $20.99 In Stock
#14	883257T 1	REGULATOR (1 required per assembly)
		883257T 1 - Regulator Kit [ More info ] $310.99 Available to Order: Shipping delay up to 10 days.
#15	25-883593A 1	O-RING KIT (1 required per assembly)
		25-883593A 1 - O-Ring Kit [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#16	12-883258	WASHER (1 required per assembly)
		12-883258 - Washer, Rubber [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#17	10-883261	SCREW, (M5 x .8) (2 required per assembly)
		10-883261 - Screw [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#19	84-881831	WIRE ASSEMBLY (1 required per assembly)
		84-881831 - Wire Assembly -Ground [ More info ] $9.89 $7.92 1 In Stock.
#20	1395-808612	SCREW AND WASHER, (#8-32 x .750) (7 required per assembly)
		1395-808612 - Screw & Washer [ More info ] $2.69 10+ In Stock.
#21	883253A 1	FLOAT KIT (1 required per assembly)
		883253A 1 - Float Kit [ More info ] $70.49 Available to Order: Shipping delay up to 10 days.
#22	F10064	SHAFT (1 required per assembly)
		F10064 - Float Support Shaft [ More info ] $4.59 10+ In Stock.
#23	883247A 1	VALVE/SEAT KIT, Inlet (1 required per assembly)
		883247A 1 - Valve/Seat - Inlet [ More info ] $70.99 Available to Order: Shipping delay up to 10 days.
#24	10-883223	SCREW, (M6 x 16) (1 required per assembly)
		10-883223 - Screw [ More info ] $5.19 $4.16 3 In Stock.
#25	35-18458Q 4	FILTER KIT (1 required per assembly)
		35-18458Q 4 - Fuel Filter Kit [ More info ] $31.09 5 In Stock.
		18-7968 - Filter, 35-18458Q4 [ More info ] $24.19 $22.54 10+ In Stock.
		35-18458T 4 - Fuel Filter Kit [ More info ] $34.49 1 In Stock.
		35-37806 - Fuel Water Filter, 10 Micron, 35-18458Q4 [ More info ] $24.49 $18.73 4 In Stock.
#26	828586 1	PROBE (1 required per assembly)
		828586 1 - Probe [ More info ] Unavailable
#27	883260	BAFFLE (1 required per assembly)
		883260 - Fuel Baffle [ More info ] Unavailable
		889318002 - Baffle Plate [ More info ] $36.99 Available to Order: Shipping delay up to 10 days.
#29	881705T 1	PUMP KIT (1 required per assembly)
		881705T 1 - Fuel Pump Kit [ More info ] $481.49 Available to Order: Shipping delay up to 10 days.
#30	23-855428	SLEEVE (1 required per assembly)
		23-855428 - 8M6000589 [ More info ] Unavailable
		8M6000589 - Fuel Pump Sleeve [ More info ] $23.50 2 In Stock.
#31	883256T 1	BOWL KIT (1 required per assembly)
		883256T 1 - Fuel Bowl Kit [ More info ] $72.49 Available to Order: Shipping delay up to 10 days.
#33	19-855435A 1	PLUG KIT (1 required per assembly)
		19-855435A 1 - Qv [ More info ] $28.29 Available to Order: Shipping delay up to 10 days.
#35	10-16955	SCREW, (M6 x 8) (1 required per assembly)
		10-16955 - Screw [ More info ] $37.99 $36.32 7 In Stock.
