Parts for Mercury Marine 2 (4-Stroke) Carburetor Tiller Handle

Revise Search: All Models > 2 (4-Stroke) Carburetor > 0R131842 & Up > Tiller Handle

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

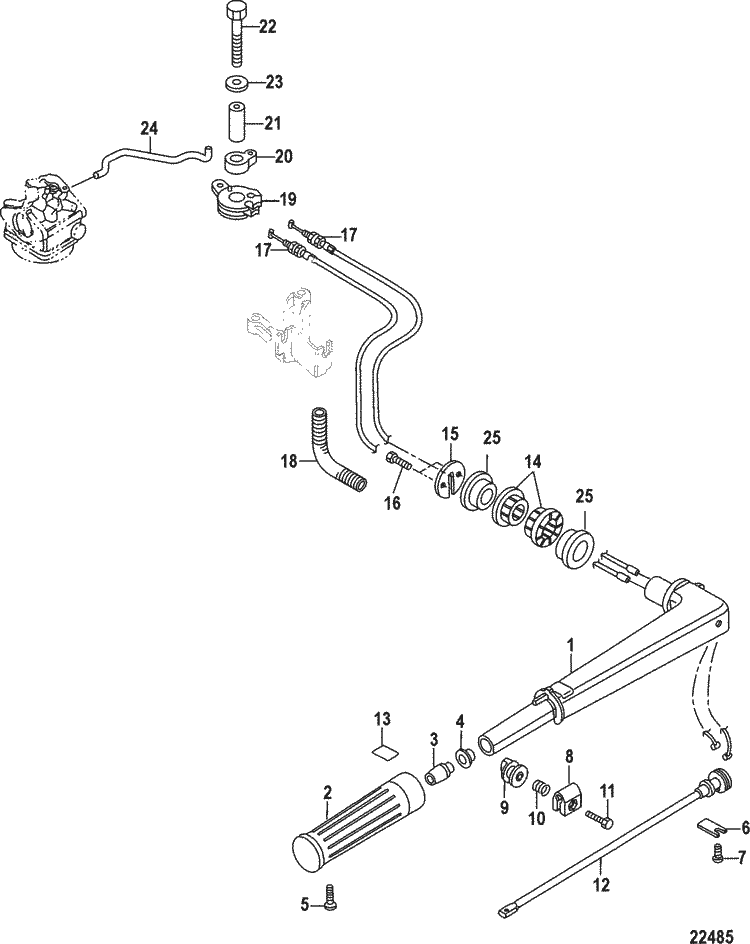

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	889246T69	TILLER HANDLE KIT (1 required per assembly)
		889246T69 - Tiller Handle Kit [ More info ] Unavailable
		803996T08 - Tiller Handle [ More info ] Unavailable
		8M0123135 - Tiller Handle [ More info ] $193.99 Available to Order: Shipping delay up to 10 days.
#1	889246T70	TILLER HANDLE (1 required per assembly)
		889246T70 - Tiller Handle [ More info ] Unavailable
		803996T07 - Tiller Handle A [ More info ] $112.49 Available to Order: Shipping delay up to 10 days.
#2	853775003	GRIP (1 required per assembly)
		853775003 - Grip [ More info ] $41.99 Available to Order: Shipping delay up to 10 days.
#3	803569	SHAFT, Rubber (1 required per assembly)
		803569 - Shaft, NLA [ More info ] $3.39 $2.72 10+ In Stock.
#4	23-898101309	BUSHING (1 required per assembly)
		23-898101309 - Bushing [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#5	10-898101310	SCREW (1 required per assembly)
		10-898101310 - Screw [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#6	16338	BRACKET (1 required per assembly)
		16338 - Throttle Shaft Bracket [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#7	10-895143002	SCREW (1 required per assembly)
		10-895143002 - SCREW [ More info ] Unavailable
		10-879194329 - Screw [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#8	898101311	FRICTION PIECE (1 required per assembly)
		898101311 - Friction Piece [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#9	11-892776	NUT (1 required per assembly)
		11-892776 - 8M0051383 [ More info ] Unavailable
		8M0051383 - Knob [ More info ] $13.69 $2.74 10+ In Stock.
#10	24-892777	SPRING, Stainless Steel (1 required per assembly)
		24-892777 - Spring, Stainless Steel [ More info ] Unavailable
		24-8M0051384 - Spring [ More info ] $7.29 $4.10 10+ In Stock.
#11	10-823042039	BOLT (1 required per assembly)
		10-823042039 - BOLT [ More info ] Unavailable
		10-879194250 - Bolt [ More info ] Unavailable
		10-16166 - BOLT-TH [ More info ] Unavailable
		10-40003 30 - Screw - Priced Individually [ More info ] $2.77 10+ In Stock.
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#12	898101313	SHAFT, Throttle (1 required per assembly)
		898101313 - Throttle Shaft [ More info ] $25.69 Available to Order: Shipping delay up to 10 days.
#13	37-824200005	DECAL, Throttle (1 required per assembly)
		37-824200005 - Decal - Throttle [ More info ] $0.70 Available to Order: Shipping delay up to 10 days.
#14	23-16083002	BUSHING (2 required per assembly)
		23-16083002 - Bushing [ More info ] $11.09 Available to Order: Shipping delay up to 10 days.
#15	898101308	COVER (1 required per assembly)
		898101308 - Cover [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#16	10-16832	BOLT, (M6 x 16) (2 required per assembly)
		10-16832 - Bolt [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#17	898101312	CABLE, Throttle (2 required per assembly)
		898101312 - Throttle Cable [ More info ] $36.99 Available to Order: Shipping delay up to 10 days.
#18	23-879705 1	SLEEVE (1 required per assembly)
		23-879705 1 - Sleeve [ More info ] $6.29 Available to Order: Shipping delay up to 10 days.
#19	803571	DRUM, Throttle (1 required per assembly)
		803571 - Throttle Drum [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#20	803572	OPENER, Throttle (1 required per assembly)
		803572 - Throttle Opener [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#21	23-803573	COLLAR (1 required per assembly)
		23-803573 - Collar [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#22	10-804367002	BOLT (1 required per assembly)
		10-804367002 - BOLT [ More info ] Unavailable
		10-879194304 - Bolt [ More info ] Unavailable
		10-16201 - Bolt [ More info ] $12.89 Available to Order: Shipping delay up to 10 days.
#23	12-895118002	WASHER (1 required per assembly)
		12-895118002 - WASHER [ More info ] Unavailable
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#24	898101315	ROD, Throttle (1 required per assembly)
		898101315 - Throttle Rod [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#25	23-16083003	BUSHING (2 required per assembly)
		23-16083003 - 23-16083003 - BUSHING [ More info ] Unavailable Replaced by 23-16083004
		23-16083004 - Bushing [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
