Parts for Mercury Marine 175 Pro XS (2.5L) Pcm Mounting

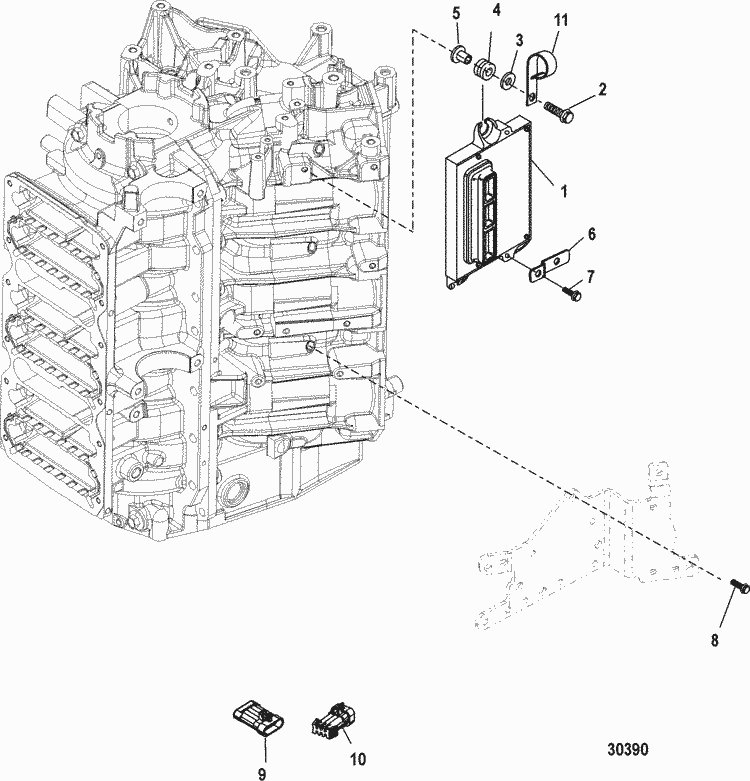

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 89790639T | PCM, Propulsion Control Module (1 required per assembly) |
  |
|
89790639T - PCM Propulsion Control [ More info ] Unavailable |
| #2 | 10-821300 25 | SCREW, (M6 x 25) (3 required per assembly) |
  |
|
10-821300 25 - Screw [ More info ]
|
| #3 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel (3 required per assembly) |
  |
|
12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ]
|
| #4 | 25-834985 | GROMMET (3 required per assembly) |
  |
|
25-834985 - Grommet [ More info ]
|
  |
|
25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ]
|
| #5 | 23-856954 | BUSHING (3 required per assembly) |
  |
|
23-856954 - Bushing [ More info ]
|
| #6 | 858953 | BRACKET (1 required per assembly) |
  |
|
858953 - Bracket [ More info ]
|
| #7 | 10-821291 14 | SCREW, (M6 x 14) (1 required per assembly) |
  |
|
10-821291 14 - Screw [ More info ]
|
| #8 | 10-821300 12 | SCREW, (M6 x 12) (3 required per assembly) |
  |
|
10-821300 12 - Screw - Priced Individually [ More info ]
|
| #9 | 830796A04 | CONNECTOR ASSEMBLY, Weather Cap - Male (1 required per assembly) |
  |
|
830796A04 - Connector Kit [ More info ]
|
| #10 | 877613A02 | CONNECTOR ASSEMBLY, Weather Cap 6 Pin (1 required per assembly) |
  |
|
877613A02 - Connector [ More info ]
|
| #11 | 54-65292 | J CLIP (1 required per assembly) |
  |
54-65292 - J Clip [ More info ] Unavailable |
|
  |
|
54-8M0024808 - J-CLIP [ More info ] Unavailable |
