Parts for Mercury Marine 15 SeaPro (4-Stroke) Clamp Bracket

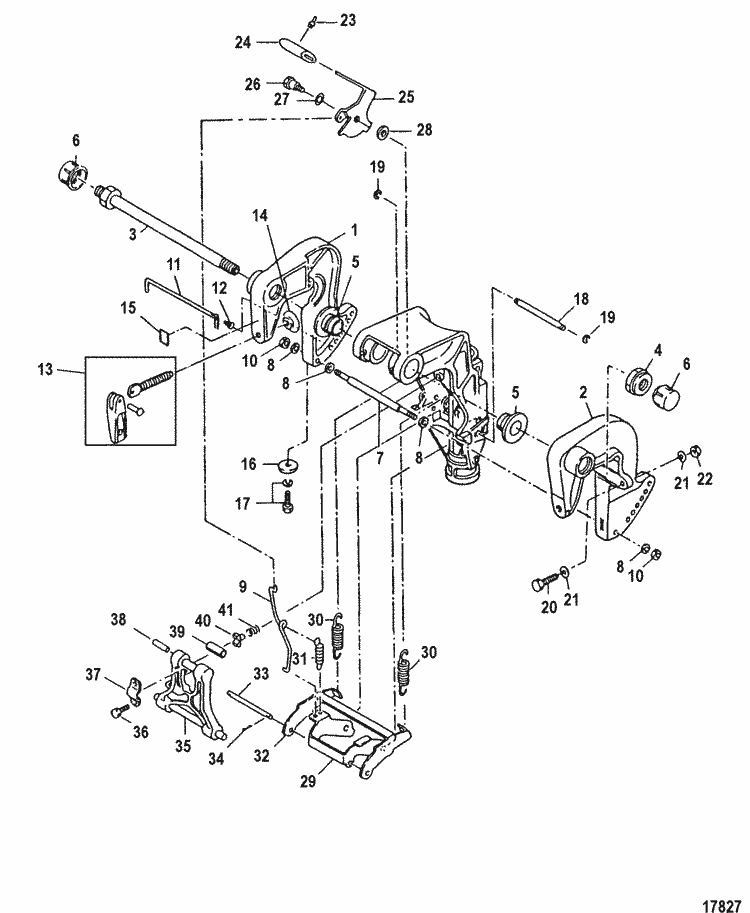

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 3406-803769 | CLAMP BRACKET, Starboard (1 required per assembly) |
  |
|
3406-803769 - 3406-803769 - CLAMP BRACKET Sta [ More info ] Unavailable Replaced by -8M0059728 |
  |
|
8M0059728 - ORD 8M0059748 NLA [ More info ] Unavailable |
  |
|
8M0059754 - Clamp Bracket-STB [ More info ]
|
| #2 | 3406-803770 | CLAMP BRACKET, Port (1 required per assembly) |
  |
|
3406-803770 - 3406-803770 - CLAMP BRACKET Por [ More info ] Unavailable Replaced by -8M0059734 |
  |
|
8M0059734 - ORD 8M0059752 NLA [ More info ] Unavailable |
  |
|
8M0059755 - Clamp Bracket - Port [ More info ]
|
| #3 | 853769 | TILT TUBE (1 required per assembly) |
  |
853769 - Tilt Tube [ More info ] Unavailable |
|
  |
|
898101191 - Tilt Tube [ More info ]
|
| #4 | 11-853722029 | NUT, Nylon (1 required per assembly) |
  |
|
11-853722029 - Nut, Nylon [ More info ]
|
| #5 | 23-853743 5 | BUSHING (2 required per assembly) |
  |
|
23-853743 5 - Bushing [ More info ]
|
| #6 | 11-853722 14 | CAP NUT (2 required per assembly) |
  |
|
11-853722 14 - Cap Nut [ More info ]
|
| #7 | 803771002 | DISTANCE PIECE (1 required per assembly) |
  |
|
803771002 - 803771002 - DISTANCE PIECE [ More info ] Unavailable Replaced by -898101938 |
  |
|
898101938 - Distance Piece [ More info ]
|
| #8 | 12-895106 | WASHER, Stainless Steel (4 required per assembly) |
  |
12-895106 - Washer, Stainless Steel [ More info ] Unavailable |
|
  |
12-879194338 - Washer - Priced Individually [ More info ] Unavailable |
|
  |
|
12-16826 - Washer, Stainless Steel [ More info ]
|
| #9 | 803787 | LINK, Reverse Lock (1 required per assembly) |
  |
|
803787 - 8M0073131 [ More info ] Unavailable |
| #10 | 11-853722022 | NUT (2 required per assembly) |
  |
11-853722022 - NUT [ More info ] Unavailable |
|
  |
|
11-40021 2 - Nut [ More info ]
|
| #11 | 16198 | THRUST ROD (1 required per assembly) |
  |
16198 - Thrust Rod [ More info ] Unavailable |
|
  |
|
16198004 - Thrust Rod [ More info ]
|
| #12 | 24-815093003 | SPRING (1 required per assembly) |
  |
|
24-815093003 - Spring [ More info ]
|
| #13 | 10-16200A 1 | THUMB SCREW ASSEMBLY (2 required per assembly) |
  |
|
10-16200A 1 - THUMB SCREW ASSEM NLA [ More info ] Unavailable |
| #14 | 12-95379 | PAD (2 required per assembly) |
  |
|
12-95379 - Washer,Pad, Clamp Screw [ More info ] Unavailable |
| #15 | 37-823701003 | DECAL, Co-Pilot (1 required per assembly) |
  |
|
37-823701003 - 37-823701003 - DECAL Co-Pilot [ More info ] Unavailable Replaced by -823701004 |
  |
|
37-823701004 - Decal Co-Pilot [ More info ]
|
| #16 | 823913Q | ANODE (1 required per assembly) |
  |
|
97-823913Q - Anode, Aluminum [ More info ]
|
| #17 | 10-16705 1 | BOLT, (M6 x 20) (1 required per assembly) |
  |
|
10-16705 1 - Bolt [ More info ]
|
| #18 | 17-803784002 | SHAFT, Reverse Lock (1 required per assembly) |
  |
|
17-803784002 - Shaft-Reverse LOC [ More info ]
|
| #19 | 53-16057 2 | E RING (2 required per assembly) |
  |
|
53-16057 2 - E Ring [ More info ]
|
| #20 | 10-823042056 | BOLT (2 required per assembly) |
  |
10-823042056 - BOLT [ More info ] Unavailable |
|
  |
|
10-879194310 - Bolt [ More info ]
|
| #21 | 12-895106001 | WASHER (4 required per assembly) |
  |
12-895106001 - WASHER [ More info ] Unavailable |
|
  |
|
12-879194339 - Washer [ More info ]
|
  |
|
12-16192 - Washer [ More info ]
|
| #22 | 11-853722023 | NUT (2 required per assembly) |
  |
11-853722023 - NUT [ More info ] Unavailable |
|
  |
|
11-879194337 - Nut [ More info ]
|
| #23 | 853776 | BUTTON (1 required per assembly) |
  |
853776 - BUTTON [ More info ] Unavailable |
|
  |
|
8M0051399 - Stopper [ More info ]
|
  |
|
17-8M0245322 - STOPPER [ More info ] Unavailable |
| #24 | 853775 | GRIP (1 required per assembly) |
  |
853775 - Grip [ More info ] Unavailable |
|
  |
|
8M0183798 - GRIP [ More info ] Unavailable |
| #25 | 803789 | LEVER, Reverse Lock (1 required per assembly) |
  |
|
803789 - LEVER Reverse Loc NLA [ More info ] Unavailable |
  |
|
8M0073129 - Lever [ More info ]
|
| #26 | 10-803790 | BOLT (1 required per assembly) |
  |
|
10-803790 - Bolt [ More info ]
|
| #27 | 13-17641 | WAVE WASHER (1 required per assembly) |
  |
|
13-17641 - Wave Washer [ More info ]
|
| #28 | 12-895118002 | WASHER (1 required per assembly) |
  |
12-895118002 - WASHER [ More info ] Unavailable |
|
  |
|
12-95392 1 - Washer [ More info ]
|
| #29 | 803783001 | ARM, Reverse Lock (1 required per assembly) |
  |
|
803783001 - Reverse Lock Arm [ More info ]
|
| #30 | 24-803788 | SPRING (2 required per assembly) |
  |
|
24-803788 - Spring [ More info ]
|
| #31 | 24-803746 1 | SPRING (1 required per assembly) |
  |
|
24-803746 1 - Spring [ More info ]
|
| #32 | 803782 | LOCK, Reverse (1 required per assembly) |
  |
|
803782 - Reverse Lock [ More info ]
|
| #33 | 17-803784 1 | ROD, Reverse Lock (1 required per assembly) |
  |
|
17-803784 1 - ROD-REV. LOCL [ More info ]
|
| #34 | 18-815026 1 | COTTER PIN (1 required per assembly) |
  |
|
18-815026 1 - Cotter Pin [ More info ]
|
| #35 | 803780 | STOP, Tilt (1 required per assembly) |
  |
|
803780 - 803780 - STOP Tilt [ More info ] Unavailable Replaced by -898103103 |
  |
898103103 - Tilt Stopper [ More info ] Unavailable |
|
  |
|
8M0239649 - TILT STOPPER [ More info ] Unavailable |
| #36 | 10-850879003 | BOLT (2 required per assembly) |
  |
|
10-850879003 - BOLT [ More info ] Unavailable |
| #37 | 803781001 | SET PLATE (1 required per assembly) |
  |
803781001 - Set Plate [ More info ] Unavailable |
|
  |
8M0140496 - Plate [ More info ] Unavailable |
|
  |
|
8M0157137 - SET PLATE [ More info ] Unavailable |
| #38 | 17-17033 1 | PIN, Spring (1 required per assembly) |
  |
|
17-17033 1 - Pin [ More info ]
|
| #39 | 23-16336 4 | BUSHING (1 required per assembly) |
  |
|
23-16336 4 - Bushing [ More info ]
|
| #40 | 853774 | STOP (1 required per assembly) |
  |
|
|
| #41 | 24-95383 2 | SPRING (1 required per assembly) |
  |
|
24-95383 2 - Spring [ More info ]
|
