Parts for Mercury Marine 15 Carburetor (2 Cylinder) (4-Stroke) Starter Motor Components

Revise Search: All Models > 15 Carburetor (2 Cylinder) (4-Stroke) > 0R235949 & Up > Starter Motor Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

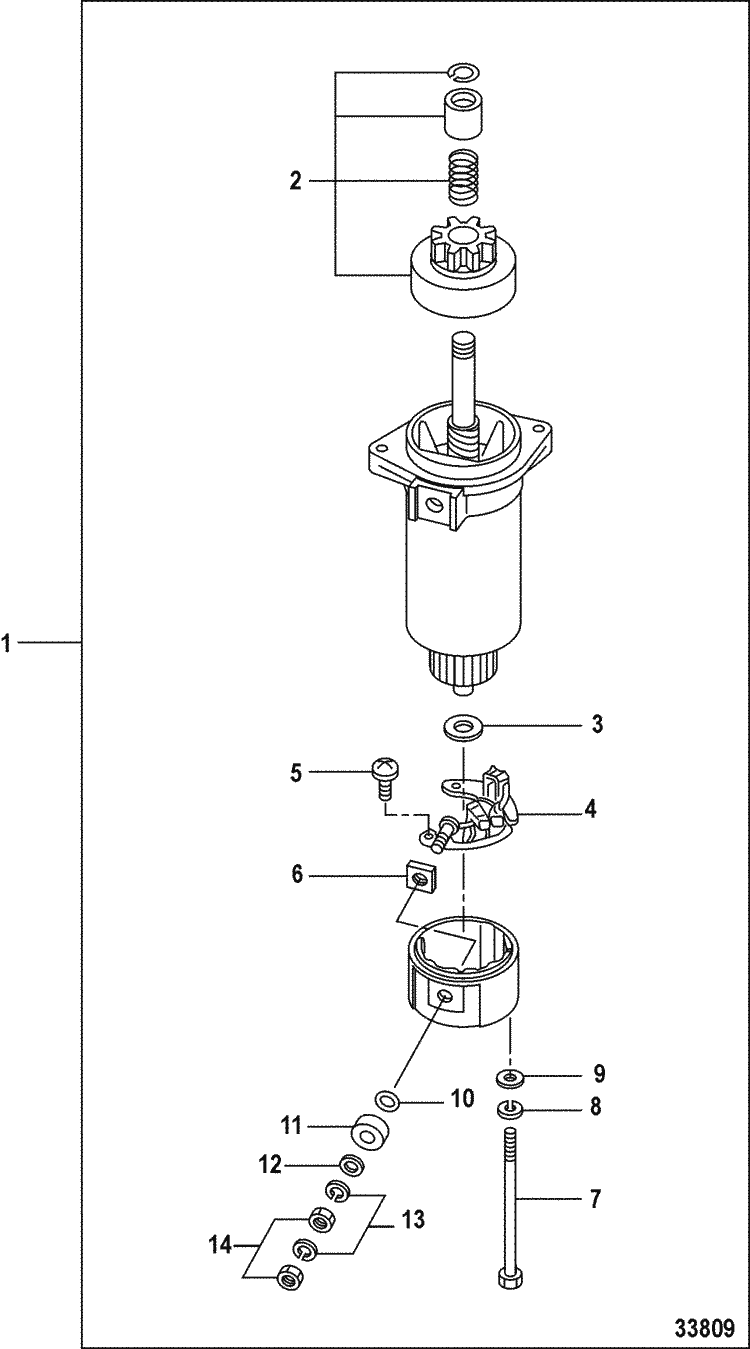

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	50-853805T03	STARTER MOTOR ASSEMBLY (1 required per assembly)

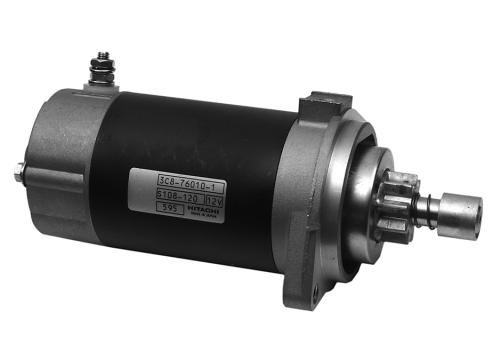

		50-853805T03 - Starter Motor [ More info ] Unavailable
		508M0147039 - Starter Motor [ More info ] Unavailable
		50-8M0188334 - STARTER MOTOR [ More info ] Unavailable
#2	853806 1	PINION (1 required per assembly)
		853806 1 - Pinion [ More info ] Unavailable
#3	12-95392 6	WASHER (1 required per assembly)
		12-95392 6 - Washer Set [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#4	853807T02	HOLDER, Brush (1 required per assembly)
		853807T02 - Brush Holder [ More info ] Unavailable
		8M0135544 - Brush Holder [ More info ] $69.99 Available to Order: Shipping delay up to 10 days.
#5	10-16821	SCREW (2 required per assembly)
		10-16821 - Screw [ More info ] $2.19 Available to Order: Shipping delay up to 10 days.
#6	23-95286 14	BUSHING (1 required per assembly)
		23-95286 14 - Bushing [ More info ] Unavailable
#7	10-16263 2	BOLT (2 required per assembly)
		10-16263 2 - Bolt [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#8	13-898101181	LOCKWASHER (2 required per assembly)
		13-898101181 - LockWasher [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#9	12-898101215	WASHER (2 required per assembly)
		12-898101215 - Washer [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#10	25-16178 4	O-RING (1 required per assembly)
		25-16178 4 - O-Ring [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#11	23-95286 19	BUSHING (1 required per assembly)
		23-95286 19 - Bushing [ More info ] Unavailable
#12	12-16826	WASHER, Stainless Steel (1 required per assembly)
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 1 In Stock.
#13	13-40025 6	LOCKWASHER, (M6) (2 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#14	11-853722026	NUT (2 required per assembly)
		11-853722026 - Nut [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
