Parts for Mercury Marine 140 HP Remote Control Assembly (Electric) (Use On Mariner 115)

Revise Search: All Models > 140 HP > 8055605 - 8062459 (Australia) > Remote Control Assembly (Electric) (Use On Mariner 115)

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

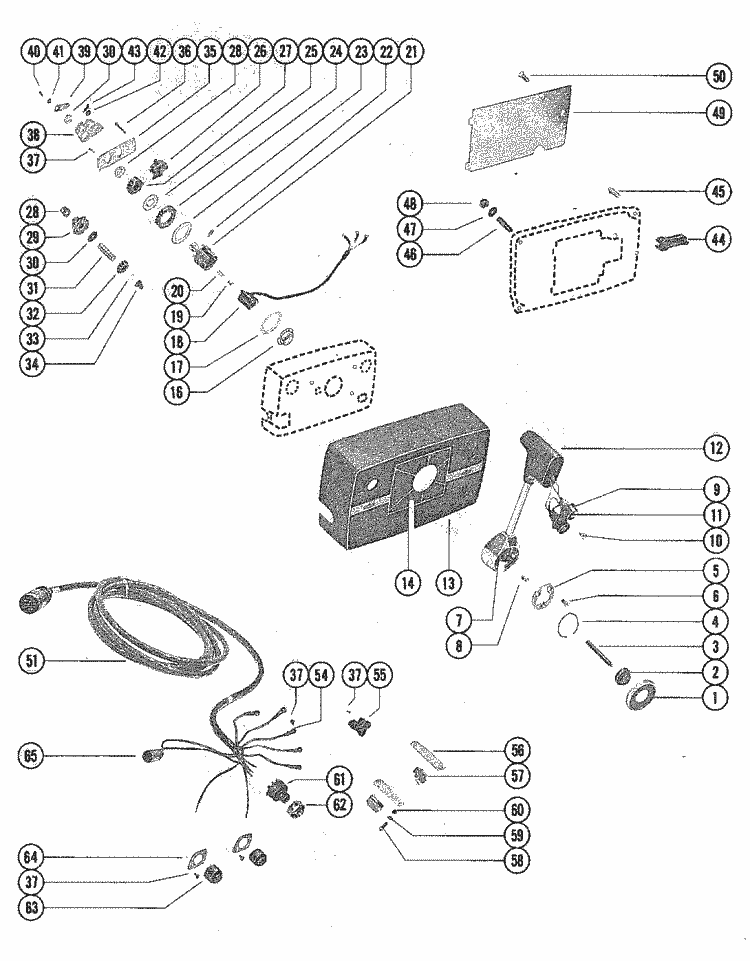

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	78025A	REMOTE CONTROL ASSEMBLY, COMPLETE (ELECTRIC) (1 required per assembly) A-78025A REMOTE CONTROL IS AVAILABLE IN LENGTHS OF 10', 15', 20' AND 40'.eFOR USE ON MARINER 115 WITH POWER TRIM.
#1	65953A 1	COVER, ASSEMBLY, HUB (1 required per assembly)
		65953A 1 - Cover [ More info ] Unavailable
		85006 - Cover, NLA [ More info ] Unavailable
#2	65676	BOOT, RUBBER - SHAFT (1 required per assembly)
		65676 - Boot, NLA [ More info ] Unavailable
#3	65673	SHAFT (1 required per assembly)
		65673 - Shaft, NLA [ More info ] $27.50 $23.30 2 In Stock.
#4	56773	RETAINER , HUB COVER (1 required per assembly)
		56773 - Retainer, NLA [ More info ] Unavailable
#5	65954	PLATE, CONTROL HANDLE (1 required per assembly)
		65954 - Retainer, NLA [ More info ] $7.78 $6.59 10+ In Stock.
#6	10-70903	SCREW, PLATE TO CONTROL HANDLE (1/2") (3 required per assembly)
		10-70903 - Screw, NLA [ More info ] $1.39 $1.17 5 In Stock.
#7	65955	CONNECTOR (1 required per assembly)
		65955 - Connector, NLA [ More info ] $5.00 $4.24 8 In Stock.

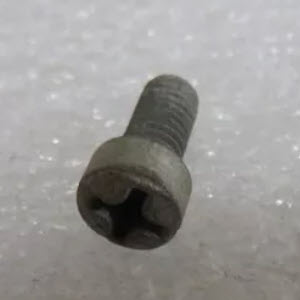

#8	10-20650	SCREW, CONNECTOR TO DISCONNECT (3/8") (3 required per assembly)
		10-20650 - Screw, NLA [ More info ] $1.80 10+ In Stock.
#9	74646	RETAINER, PUSH BUTTON SWITCHES (1 required per assembly)
		74646 - Retainer, NLA [ More info ] $1.36 $1.16 1 In Stock.
#10	10-77444	SCREW, RETAINER TO CONTROL HANDLE (5/16") (2 required per assembly)
		10-77444 - SCREW,NLA [ More info ] Unavailable

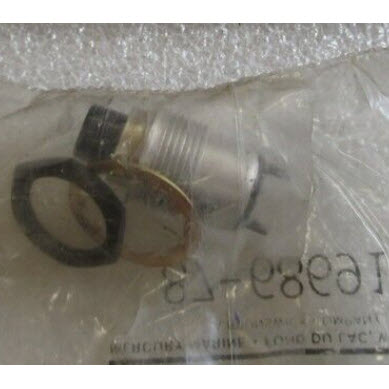

#11	87-68691	SWITCH, PUSH BUTTON (BLACK) (1 required per assembly)
		87-68691 - Switch [ More info ] $86.80 $83.33 10+ In Stock.
#11	87-68033	SWITCH, PUSH BUTTOM (RED) (1 required per assembly)
		87-68033 - Switch [ More info ] $43.47 $36.82 10+ In Stock.
#12	55719	HANDLE, CONTROL (1 required per assembly)
		55719 - Hand Grip, NLA [ More info ] $39.13 $33.14 5 In Stock.
#13	68034	COVER, REMOTE CONTROL (1 required per assembly)
		68034 - Cover, NLA [ More info ] Unavailable
#14	37-77992	DECAL, REMOTE CONTROL COVER (NOT AS SHOWN) (1 required per assembly)
		37-77992 - DECAL,NLA [ More info ] Unavailable
#16	23-55399	BUSHING, NYLON - PORT CONTROL HOUSING (1 required per assembly)
		23-55399 - Bushing, NLA [ More info ] $4.35 $3.68 10 In Stock.
#17	68026	PLATE, RETAINING - DISCONNECT PLUG (1 required per assembly)
		68026 - Plate [ More info ] $2.72 $2.31 1 In Stock.
#18	65672	PLUG, DISCONNECT (1 required per assembly)
		65672 - Plug, NLA [ More info ] $28.00 $23.72 5 In Stock.
#19	17-68672	PIN, CONTROL HUB (1 required per assembly)
		17-68672 - Pin, Control Hub, NLA [ More info ] Unavailable
#20	24-73190	SPRING, CONTROL HUB (1 required per assembly)
		24-73190 - Spring, Control Hub [ More info ] Unavailable
#21	65665	HUB, CONTROL (1 required per assembly)
		65665 - Hub [ More info ] Unavailable
#22	28-68024	KEY, CONTROL HUB (1 required per assembly)
		28-68024 - KEY,NLA [ More info ] $3.00 $2.54 4 In Stock.
#23	12-68025	WASHER, CONTROL HUB (1 required per assembly)
		12-68025 - Washer, Control Hub, NLA [ More info ] $8.00 $6.78 5 In Stock.
#24	43-65731	GEAR, THROTTLE (1 required per assembly)
		43-65731 - Throttle Gear [ More info ] Unavailable
#25	12-65986	WASHER, NYLON - CONTROL HUB (1 required per assembly)
		12-65986 - Washer, Nylon - Control Hub, NLA [ More info ] $1.25 $1.06 2 In Stock.

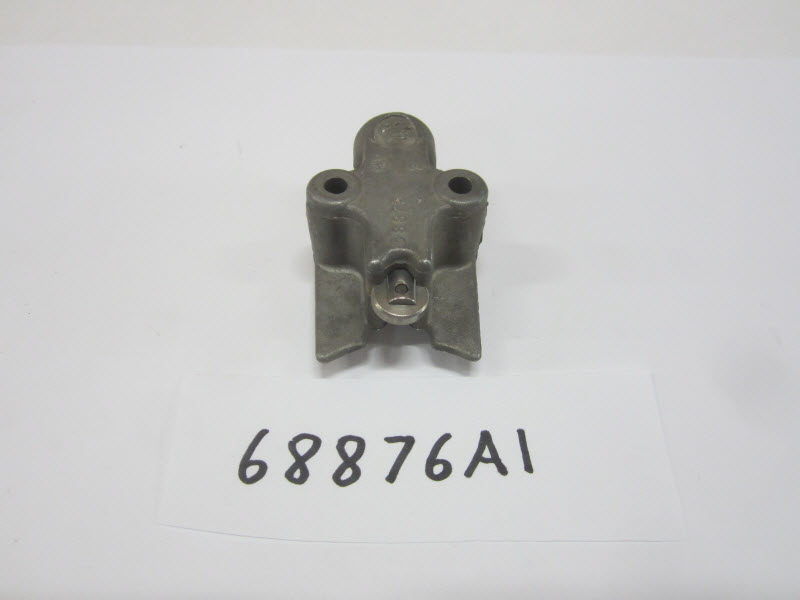

#26	68876A 1	DETENT ASSEMBLY (1 required per assembly)
		68876A 1 - Detent Assembly, NLA [ More info ] $40.00 $33.88 2 In Stock.
#27	43-65733	GEAR, SHIFT (1 required per assembly)
		43-65733 - Shift Gear [ More info ] $14.99 3 In Stock.
#28	23-74647	BUSHING, NYLON - SUPPORT PLATE (2 required per assembly)
		23-74647 - Bushing [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#29	43-65734	PINION GEAR, SHIFT (1 required per assembly)
		43-65734 - Pinion, NLA [ More info ] Unavailable
#30	12-68032	WASHER, THROTTLE SHAFT (1 required per assembly)
		12-68032 - Washer, Throttle Shaft, NLA [ More info ] $1.25 $1.06 3 In Stock.
#31	65730	SHAFT, THROTTLE (1 required per assembly)
		65730 - Shaft, NLA [ More info ] Unavailable
#32	43-65732	PINION GEAR, THROTTLE (1 required per assembly)
		43-65732 - Pinion Gear, Throttle, NLA [ More info ] Unavailable
#33	53-68030	RING, RETAINING - THROTTLE PINION (1 required per assembly)
		53-68030 - Retaining Ring, NLA [ More info ] Unavailable
		53-46250 - Retaining Ring, NLA [ More info ] $1.62 10+ In Stock.
#34	23-65830	BUSHING, NYLON - THROTTLE SHAFT (1 required per assembly)
		23-65830 - NyLiner [ More info ] $5.69 1 In Stock.
#35	65832	PLATE, SUPPORT SHAFT AND DETENT (1 required per assembly)
		65832 - Plate [ More info ] Unavailable
#36	10-47184	SCREW, PLATE TO CONTROL HOUSING (1 1/2") (2 required per assembly)
		10-47184 - Screw [ More info ] Unavailable
		10-73013 - Screw [ More info ] $3.79 $3.04 10+ In Stock.
#37	10-69079	SCREW (7/16") (13 required per assembly)
		10-69079 - Screw [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#38	65655A 1	LEVER ASSEMBLY, SHIFT (1 required per assembly)
		65655A 1 - Shift Lever [ More info ] Unavailable
#39	65657A 1	LEVER ASSEMBLY, THROTTLE (1 required per assembly)
		65657A 1 - Throttle Le, NLA [ More info ] Unavailable
#40	10-37571	SCREW, THROTTLE LEVER TO THROTTLE SCREW (1/2") (1 required per assembly)
		10-37571 - Screw - Priced Individually [ More info ] $2.33 $1.97 10+ In Stock.
#41	12-72761	WASHER, THROTTLE LEVER SCREW (1 required per assembly)
		12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ] $1.63 10+ In Stock.
#42	12-35950	WASHER, CABLE ATTACHING (2 required per assembly)
		12-35950 - Washer, (.273 X .437 X .031) Stainless Steel [ More info ] $1.80 5 In Stock.
#43	18-21071	COTTER PIN, CABLE ATTACHING (2 required per assembly)
		18-21071 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-21071 1 - Cotter Pin - Priced Individually [ More info ] $3.69 10+ In Stock.
#44	68023	HOUSING, CABLE (1 required per assembly)
		68023 - Housing, NLA [ More info ] $11.11 $9.41 2 In Stock.
#45	10-24234	SCREW, CONTROL HOUSING ATTACHING (1") (2 required per assembly)
		10-24234 - Screw - Priced Individually [ More info ] Unavailable
		10-35386 - Screw - Priced Individually [ More info ] $1.10 7 In Stock.

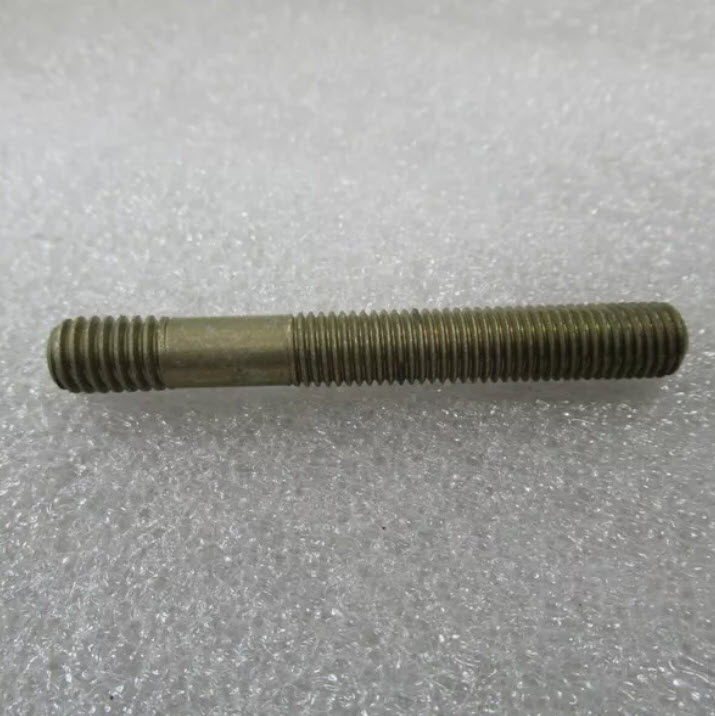

#46	16-29208	STUD, PORT CONTROL HOUSING (2 1/2") (2 required per assembly)
		16-29208 - Stud, NLA [ More info ] $2.70 10 In Stock.
#47	12-26168	WASHER, PORT CONTROL HOUSING STUD (2 required per assembly)
		12-26168 - Washer [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#48	11-46793	NUT, PORT CONTROL HOUSING STUD (2 required per assembly)
		11-46793 - Nut, (5/16-24) [ More info ] Unavailable
		11-29250 - Nut (5/16-24) [ More info ] $2.89 $1.63 10+ In Stock.
#49	65956	COVER, STARBOARD CONTROL HOUSING (1 required per assembly)
		65956 - Retainer, NLA [ More info ] $5.00 $4.24 1 In Stock.
#50	10-25504	SCREW, COVER ATTACHING (3/4") (2 required per assembly)
		10-25504 - SCREW,NLA [ More info ] Unavailable
#51	84-76407	WIRING HARNESS (1 required per assembly) AVAILABLE IN LENGTHS OF 10' ,15' ,20' , AND 40'
#54	86-60878	TERMINAL, WIRING HARNESS (4 required per assembly)
		86-60878 - Ord 86- 60878T, NLA [ More info ] Unavailable
#55	86-65738	TERMINAL BLOCK (1 required per assembly)
		86-65738 - TERMINAL BLOCK,NLA [ More info ] Unavailable
#56	74596	PLATE, MICRO SWTICH MOUNTING (1 required per assembly)
		74596 - Plate [ More info ] Unavailable
#57	87-74605	SWITCH, MICRO (1 required per assembly)
		87-74605 - Switch [ More info ] $19.99 $16.92 10 In Stock.
#58	10-63680	SCREW, MIRCO SWITCH TO PLATE (5/8") (2 required per assembly)
		10-63680 - Screw [ More info ] Unavailable
		10-90342 - Screw, NLA [ More info ] $1.88 $1.59 8 In Stock.
#59	13-24658	LOCKWASHER, MICRO SWITCH SCREW (2 required per assembly)
		13-24658 - LOCKWASHER,NLA [ More info ] Unavailable
#60	11-63683	NUT, MICRO SWITCH SCREW WHEN ORDERING REPLACEMENT KEYS ALS (2 required per assembly)
		11-63683 - Nut, (.112-40) NLA [ More info ] $1.50 $1.28 10 In Stock.
#61	54211	IGNITION SWITCH(WITH KEYS) KEY PART #C-30431 (1 required per assembly) WHEN ORDERING REPLACEMENT KEYS ALSO LIST NUMBER STAMPED ON KEY
		54211 - Switch Assembly [ More info ] Unavailable
		54211T - Switch Assembly [ More info ] Unavailable
#62	68863	BEZEL, IGNITION SWITCH (1 required per assembly)
		68863 - Ignition Switch Bezel [ More info ] $10.51 4 In Stock.
#63	55738A 1	SWITCH ASSEMBLY, PUSH BUTTON (2 required per assembly)
		55738A 1 - Switch Assembly [ More info ] $27.31 1 In Stock.
#64	55691	COVER, PUSH BUTTON SWITCH (2 required per assembly)
		55691 - Cover [ More info ] $5.43 $4.60 8 In Stock.
#65	84-76353	HARNESS, TRIM (1 required per assembly) AVAILALBE IN LENGTHS OF 10' , 15' ,25' , & 45'
