Parts for Mercury Marine 140 HP Jet Reed Block & Cylinder Head

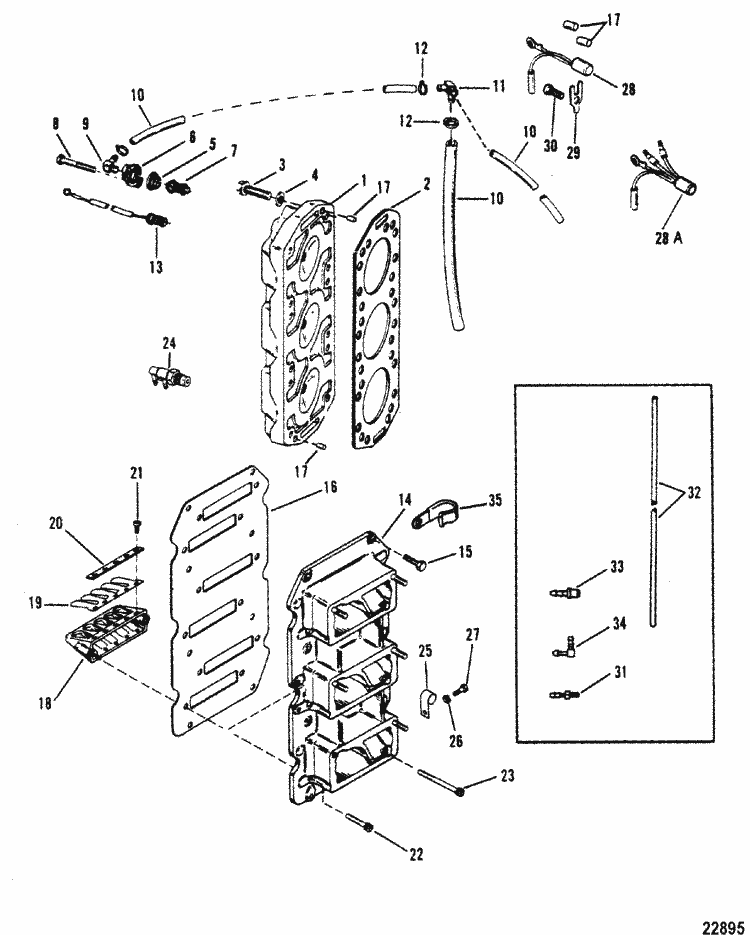

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 812815A92 | POWERHEAD (1 required per assembly) (135/150) |
  |
812815A92 - Powerhead [ More info ] Unavailable |
|
  |
812815A96 - Powerhead MARINE [ More info ] Unavailable |
|
  |
812815A97 - Powerhead [ More info ] Unavailable |
|
  |
812815T97 - Powerhead [ More info ] Unavailable |
|
  |
|
878365T00 - Ord 812815R97, NLA [ More info ] Unavailable |
| # | 813043A94 | POWERHEAD (1 required per assembly) (200) |
  |
813043A94 - Powerhead [ More info ] Unavailable |
|
  |
813043A96 - Powerhead MARINE [ More info ] Unavailable |
|
  |
813043A97 - PH 135/200 2.5 [ More info ] Unavailable |
|
  |
|
813043T97 - ORD 813043R97 [ More info ] Unavailable |
| # | 27-815791A92 | ENGINE GASKET SET (1 required per assembly) |
  |
|
27-815791A92 - Engine Gasket Set [ More info ]
|
  |
|
27-27673 - Gasket Set [ More info ]
|
| # | 812817A92 | POWERHEAD (1 required per assembly) (XR6/Magnum III) SN# 0D284787 & Below |
  |
812817A92 - Powerhead [ More info ] Unavailable |
|
  |
812817A96 - Powerhead MARINE [ More info ] Unavailable |
|
  |
812817A97 - Powerhead [ More info ] Unavailable |
|
  |
|
812817T97 - Ord 812817R97, NLA [ More info ] Unavailable |
| # | 823434A93 | POWERHEAD (1 required per assembly) (XR6/Magnum III) SN# 0D284788 & Up |
  |
823434A93 - Powerhead [ More info ] Unavailable |
|
  |
823434A96 - Powerhead MARINE [ More info ] Unavailable |
|
  |
823434A97 - Powerhead [ More info ] Unavailable |
|
  |
|
823434T97 - Ord 823434R97, NLA [ More info ] Unavailable |
| #1 | 18787F 1 | CYLINDER HEAD (2 required per assembly) 135/150 |
  |
18787F 1 - Cylinder Head [ More info ] Unavailable |
|
  |
|
18787A18 - Cylinder Head Kit [ More info ] Unavailable |
| #1 | 18488 8 | CYLINDER HEAD (2 required per assembly) XR6/MAGNUM III/TRACKER/175/200 SN# 0D262673 & Below |
  |
18488 8 - Cylinder Head [ More info ] Unavailable |
|
  |
|
18488F 1 - Cylinder Head [ More info ] Unavailable |
| #1 | 18488F 1 | HEAD, Cylinder (2 required per assembly) XR6/MAGNUM III/TRACKER/175 SN# 0D262674 & Up |
| #1 | 18488F 2 | HEAD, Cylinder (2 required per assembly) 200 SN# 0G052595 & Up |
  |
|
18488F 2 - Cylinder Head,NLA [ More info ] Unavailable |
| #2 | 27-18785 1 | GASKET (2 required per assembly) 135/150 |
  |
27-18785 1 - Gasket [ More info ] Unavailable |
|
  |
|
27-18785T - Gasket [ More info ]
|
  |
|
18-3861 - Head Gasket 27-18785-1 [ More info ]
|
| #2 | 27-822844 1 | GASKET (2 required per assembly) XR6/MAGNUM III/TRACKER/175/200 SN# 0D262673 & Below |
  |
27-822844 1 - Gasket [ More info ] Unavailable |
|
  |
27-822844T04 - Gasket [ More info ] Unavailable |
|
  |
|
27-822844T05 - Gasket [ More info ]
|
  |
|
18-3864 - Head Gasket 27-822844 [ More info ]
|
| #3 | 10-98534 | SCREW, (.375-16 x 2.30) (24 required per assembly) |
  |
|
10-98534 - Screw [ More info ] Unavailable |
| #4 | 12-25909 | WASHER, (.406 x .812 x .065) (USE WHERE APPLICABLE) (24 required per assembly) |
  |
|
12-25909 - Washer (.406 X .812 X .065) [ More info ]
|
| #5 | 27-62386 | GASKET (2 required per assembly) |
  |
27-62386 - Thermostat Gasket [ More info ] Unavailable |
|
  |
|
27-62386001 - Thermostat Gasket [ More info ]
|
  |
|
27-8M0204714 - Thermostat Gasket, Priced Individually [ More info ]
|
  |
|
18-0182-9 - Gasket 27-62386 2-Pack [ More info ]
|
| #6 | 90390A 1 | COVER KIT (2 required per assembly) |
  |
|
90390A 1 - Thermostat Cover Kit [ More info ]
|
| #7 | 75692 | THERMOSTAT (2 required per assembly) |
  |
|
75692 - Thermostat, 147 Degrees [ More info ]
|
  |
|
18-3553 - Thermostat, 143 Degrees, 75692 [ More info ]
|
  |
|
75-02658 - OMC Thermostat Kit, 5005440 (dual) [ More info ]
|
  |
|
75-00456-IR - Thermostat Kit, 75692Q03,T2,Q2 [ More info ]
|
  |
|
75-00403 - Thermostat, 5005440 [ More info ]
|
| #8 | 10-35386 | SCREW, (.312-18 x 1.00) (4 required per assembly) |
  |
|
10-35386 - Screw - Priced Individually [ More info ]
|
| #9 | 22-68727 | FITTING, (.250-18) Brass (1 required per assembly) |
  |
|
22-68727 - Fitting [ More info ]
|
  |
|
22-68727 1 - Fitting [ More info ]
|
| #10 | 32-77653 77 | HOSE, (24.500 Inches Bulk) (3 required per assembly) |
  |
32-77653 77 - Hose - 24.5 Inch [ More info ] Unavailable |
|
  |
32-77653 78 - Hose-25 INCH [ More info ] Unavailable |
|
  |
|
32-77653101 - Hose -48 Inch [ More info ]
|
| #11 | 22-68728 | FITTING (1 required per assembly) |
  |
|
22-68728 - Fitting [ More info ] Unavailable |
| #12 | 54-816311 | CABLE TIE, (8.00 Inches) (AR required per assembly) |
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #13 | 97465 | TEMPERATURE SENDER (STBD.) (1 required per assembly) |
  |
|
97465 - Temperature Sender [ More info ]
|
| #14 | 43517A 9 | PLATE ASSEMBLY (1 required per assembly) |
  |
|
43517A 9 - Adaptor Plate Assembly [ More info ]
|
| #15 | 10-28668 | SCREW, (.250-20 x .875) (8 required per assembly) |
  |
|
10-28668 - Screw - Priced Individually [ More info ]
|
| #16 | 27-14697 2 | GASKET (1 required per assembly) |
  |
|
27-14697 2 - Gasket [ More info ]
|
  |
|
18-0644 - Gasket, 27-14697 2 [ More info ]
|
| #17 | 17-63779 | PIN, Dowel (.250 x .625) (4 required per assembly) |
  |
|
17-63779 - Pin, Dowel (.250 X .625) [ More info ]
|
| #18 | 75953 | REED BLOCK (6 required per assembly) |
  |
|
75953 - Reed Block [ More info ]
|
| #19 | 34-75362A 1 | REED ASSEMBLY (6 required per assembly) |
  |
|
34-75362A 1 - Reed Kit [ More info ]
|
| #20 | 96183 2 | REED CLAMP (12 required per assembly) |
  |
|
96183 2 - Clamp - Reed [ More info ]
|
| #21 | 10-823588 | SCREW, (#8-32 x .250) (60 required per assembly) |
  |
|
10-823588 - Screw - Priced Individually [ More info ]
|
| #22 | 10-55715 | SCREW, (.250-20 x .880) (6 required per assembly) |
  |
|
10-55715 - Screw - Priced Individually [ More info ]
|
| #23 | 10-96529 | SCREW, (.250-20 x 2.00) (6 required per assembly) |
  |
|
10-96529 - Screw [ More info ] Unavailable |
| #24 | 814612 | THERMAL AIR VALVE (OLD DESIGN) (1 required per assembly) |
  |
|
814612 - Vacuum Valve [ More info ] Unavailable |
| #25 | 54-23567 | CLIP (1 required per assembly) |
  |
|
|
| #26 | 69205 | C WASHER (1 required per assembly) |
  |
69205 - C Washer [ More info ] Unavailable |
|
  |
|
8M0084613 - Washer [ More info ]
|
| #27 | 10-812832 | SCREW, (#10-16 x .500) (1 required per assembly) |
  |
10-812832 - SCREW [ More info ] Unavailable |
|
  |
|
10-878608 - Screw [ More info ]
|
| #28 | 13536A 7 | TEMPERATURE SENSOR (PORT) (2-WIRE) (1 required per assembly) |
  |
|
13536A 7 - Temperature Sensor Assembly [ More info ]
|
| #28A | 13536A 6 | TEMPERATURE SENSOR (PORT) (4-WIRE) (1 required per assembly) |
  |
|
13536A 6 - Temperature Sensor Assembly [ More info ]
|
| #29 | 13715 1 | RETAINER (2 required per assembly) |
  |
|
13715 1 - Retainer [ More info ]
|
| #30 | 10-98257 | SCREW, (.312-18 x .500) (2 required per assembly) |
  |
|
10-98257 - Screw [ More info ]
|
| #31 | 22-56759 | FITTING, Press-In (4 required per assembly) |
  |
|
22-56759 - Fitting [ More info ]
|
| #32 | 32-99130122 | TUBING, (20.00 Feet Bulk) (1 required per assembly) |
  |
32-99130122 - Tubing-20 FEET [ More info ] Unavailable |
|
  |
|
32-892024122 - Tubing - 20 Feet [ More info ]
|
| #33 | 21-42698 | CHECK VALVE (PRESS-IN 13/16") (7 required per assembly) |
  |
21-42698 - Check Valve [ More info ] Unavailable |
|
  |
21-42698 1 - Check Valve [ More info ] Unavailable |
|
  |
|
21-42698 2 - Check Valve [ More info ]
|
| #33 | 21-42623 | CHECK VALVE (PRESS-IN 11/16") (1 required per assembly) |
  |
|
21-42623 - Check Valve [ More info ]
|
  |
|
21-42623 1 - Check Valve [ More info ]
|
  |
|
21-42623 3 - Check Valve [ More info ]
|
| #34 | 22-822715 | FITTING, Elbow (PRESS-IN) (6 required per assembly) |
  |
|
22-822715 - Fitting [ More info ]
|
| #35 | 54-55098 | J CLIP (1 required per assembly) |
  |
|
54-55098 - J Clip - Priced Individually [ More info ]
|
  |
|
54-8M0024808 - J-CLIP [ More info ] Unavailable |
