Parts for Mercury Marine 140 HP Jet Instrumentation

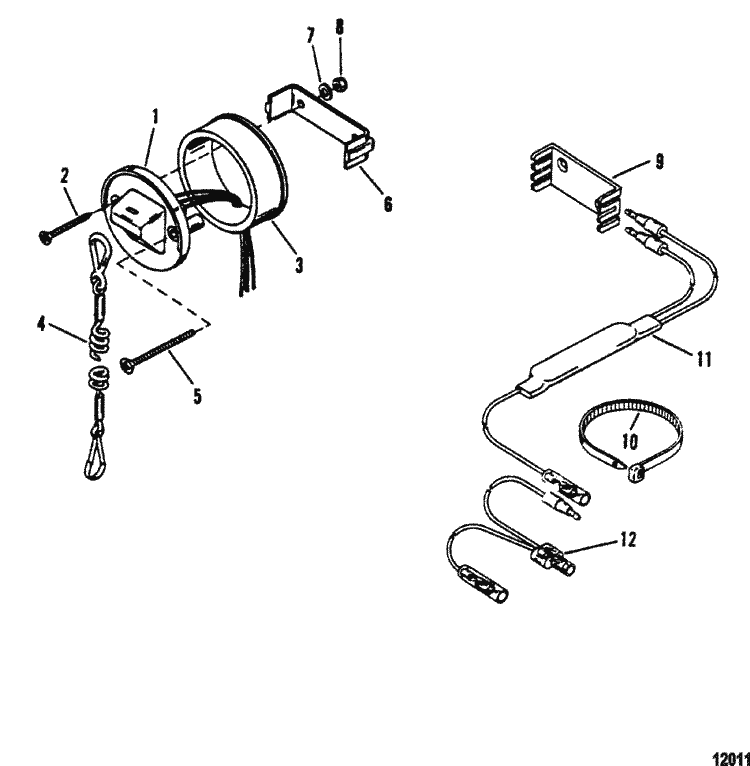

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 87-19674A 1 | SWITCH ASSEMBLY, Lanyard (1 required per assembly) |
  |
|
87-19674A 1 - Switch Assembly [ More info ] Unavailable |
| #2 | 10-18303 | SCREW, (.190-16 x 1.750) (2 required per assembly) |
  |
|
10-18303 - Screw [ More info ]
|
| #3 | 813679 | ADAPTER (1 required per assembly) |
  |
|
813679 - Adaptor [ More info ]
|
| #4 | 15920A54 | LANYARD ASSEMBLY (1 required per assembly) |
  |
15920A54 - Lanyard Assembly [ More info ] Unavailable |
|
  |
|
15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable |
| #5 | 10-32866 | SCREW, (#10-32 x 2.00) (2 required per assembly) |
  |
|
10-32866 - Screw - Priced Individually [ More info ]
|
| #6 | 18321 | CLAMP, Mounting (1 required per assembly) |
  |
|
|
| #7 | 12-24676 | WASHER, (.200 x .440 x .032) (2 required per assembly) |
  |
|
12-24676 - Washer, (.200 X .440 X .032) [ More info ]
|
| #8 | 11-68219 | NUT, (#10-32) (4 required per assembly) |
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #9 | 79146 | RETAINER (3 required per assembly) |
  |
|
79146 - Retainer [ More info ]
|
| #10 | 54-816311 | CABLE TIE, (8.00 Inches) (AR required per assembly) |
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #11 | 812497A 2 | DIODE ASSEMBLY (1 required per assembly) |
  |
|
812497A 2 - Lanyard Diode Kit * [ More info ]
|
  |
|
84-898289A72 - Lanyard Diode Kit [ More info ]
|
| #12 | 84-11149A 2 | CABLE ASSEMBLY, (6.00 Inches) (1 required per assembly) |
  |
|
84-11149A 2 - Cable Assembly [ More info ]
|
