Parts for Mercury Marine 140 HP Jet Bottom Cowl
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 2197-9744A16 | BOTTOM COWL ASSEMBLY (BLACK)(Without Decals) (1 required per assembly) PORT |
  |
|
2197-9744A16 - PORT BOTTOM COWL,NLA [ More info ] Unavailable |
| #1 | 2197-9744A17 | BOTTOM COWL ASSEMBLY , Gray (Without Decals) (1 required per assembly) PORT |
  |
2197-9744A17 - PORT BOTTOM COWL [ More info ] Unavailable |
|
| #1 | 2197-9744A18 | BOTTOM COWL (TRACKER)(Without Decals) (1 required per assembly) PORT |
  |
2197-9744A18 - TR-PORT BOT. COWL [ More info ] Unavailable |
|
| #2 | 2197-9745A 5 | BOTTOM COWL ASSEMBLY (BLACK)(Without Decals) (1 required per assembly) STARBOARD |
  |
|
2197-9745A 5 - Stbd Bottom Cowl, NLA [ More info ] Unavailable |
| #2 | 2197-9745A 6 | BOTTOM COWL ASSEMBLY (GRAY)(Without Decals) (1 required per assembly) STARBOARD |
  |
|
2197-9745A 6 - Stbd Bottom Cowl, NLA [ More info ] Unavailable |
| #2 | 2197-9745A 7 | BOTTOM COWL (TRACKER)(Without Decals) (1 required per assembly) STARBOARD |
  |
|
2197-9745A 7 - Tr- Stbd. Bot Cow, NLA [ More info ] Unavailable |
| #3 | 18701A 1 | SEAL KIT (1 required per assembly) |
  |
|
18701A 1 - Seal Kit, NLA [ More info ] Unavailable |
| #4 | 10-18699 | SCREW, (.250-20 x 1.320) (STARBOARD) (4 required per assembly) |
  |
|
10-18699 - Screw, NLA [ More info ]
|
| #5 | 21-817519A 1 | CHECK VALVE ASSEMBLY, Drain (2 required per assembly) |
  |
|
21-817519A 1 - Drain Valve Assembly [ More info ]
|
| #6 | 22-813613 | FITTING (1 required per assembly) |
  |
|
22-813613 - Fitting [ More info ]
|
| #7 | 32-830756109 | HOSE, (57.00 Inches Bulk) (1 required per assembly) |
  |
32-830756109 - Hose, 57 Inch [ More info ] Unavailable |
|
  |
32-8M0047428 - Hose -57 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #8 | 54-816311 | CABLE TIE, (8.00 Inches) (AR required per assembly) |
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #10 | 87-18286A40 | SWITCH ASSEMBLY (1 required per assembly) |
  |
87-18286A40 - Switch Assembly [ More info ] Unavailable |
|
  |
87-850691 - Trim Switch Assembly [ More info ] Unavailable |
|
  |
87-856990 - Trim Switch [ More info ] Unavailable |
|
  |
|
87-896620 - Trim Switch [ More info ]
|
  |
87-8M0042301 - Trim Switch [ More info ] In Stock |
|
  |
|
SWITCH TRIM [ More info ]
|
  |
|
87-09058 - Power Trim Switch [ More info ]
|
| #11 | 812443 1 | RETAINER (1 required per assembly) |
  |
|
812443 1 - Retainer [ More info ]
|
  |
|
8M0032848 - Retainer [ More info ]
|
| #12 | 22-815914 | T-FITTING (1 required per assembly) |
  |
|
22-815914 - Fitting [ More info ]
|
| #13 | 32-77653 77 | HOSE, (24.500 Inches Bulk) (1 required per assembly) |
  |
32-77653 77 - Hose - 24.5 Inch [ More info ] Unavailable |
|
  |
32-77653 78 - Hose-25 INCH [ More info ] Unavailable |
|
  |
|
32-77653101 - Hose -48 Inch [ More info ]
|
| #14 | 19648A 3 | HANDLE ASSEMBLY (BLACK) (1 required per assembly) PORT |
  |
|
19648A 3 - Handle [ More info ]
|
  |
|
19648A 2 - Handle Assembly, Port [ More info ] Unavailable |

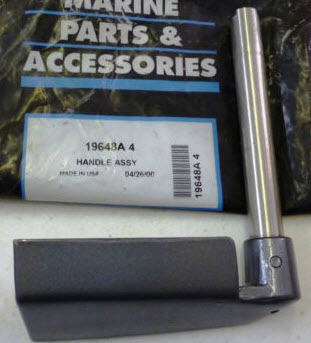

| #14 | 19648A 4 | HANDLE ASSEMBLY (GRAY) (1 required per assembly) PORT |
  |
|
19648A 4 - Handle Assembly [ More info ]
|
| #14 | 19648A 7 | HANDLE ASSEMBLY (TRACKER) (1 required per assembly) PORT |
  |
|
19648A 7 - Tr. Port Handle, NLA [ More info ] Unavailable |
| #15 | 19647A 3 | HANDLE ASSEMBLY (BLACK) (1 required per assembly) STARBOARD |
  |
|
19647A 3 - Handle Assembly Stbd, NLA [ More info ]
|
| #15 | 19647A 4 | HANDLE ASSEMBLY (GRAY) (1 required per assembly) STARBOARD |
  |
19647A 4 - Handle Assembly Stbd [ More info ] Unavailable |
|
| #15 | 19647A 7 | HANDLE ASSEMBLY (TRACKER) (1 required per assembly) STARBOARD |
  |
|
19647A 7 - TR. HANDLE ASSY [ More info ] Unavailable |
| #16 | 23-65830 | NYLINER (6 required per assembly) |
  |
|
23-65830 - NyLiner [ More info ]
|
| #17 | 13-99611 | WAVE WASHER (3 required per assembly) |
  |
|
13-99611 - Washer, NLA [ More info ]
|
| #18 | 19369 | PAWL (1 required per assembly) |
  |
|
19369 - Starboard Pawl, NLA [ More info ]
|
| #19 | 19370 | PAWL (1 required per assembly) |
  |
|
19370 - Pawl, NLA [ More info ]
|
| #20 | 12-69057 | WASHER, (.281 x .734 x .063) (3 required per assembly) |
  |
|
12-69057 - Washer, (.281 X .734 X .063) [ More info ]
|
| #21 | 13-26992 | LOCKWASHER, (.250) (2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #22 | 10-73286 | SCREW, (.250-20 x .500) (2 required per assembly) |
  |
|
10-73286 - Screw [ More info ]
|
| #23 | 54-19749 | CLAMP (1 required per assembly) |
  |
|
54-19749 - Clamp [ More info ]
|
| #24 | 54-19748 1 | CLAMP (1 required per assembly) |
  |
|
54-19748 1 - Clamp [ More info ] Unavailable |
| #25 | 10-92799 | SCREW, (#10-16 x 1.12) (2 required per assembly) |
  |
|
10-92799 - Screw [ More info ]
|
| #26 | 18872A 1 | COVER ASSEMBLY (BLACK) (1 required per assembly) |
  |
|
18872A 1 - Cover Assembly, NLA [ More info ] Unavailable |

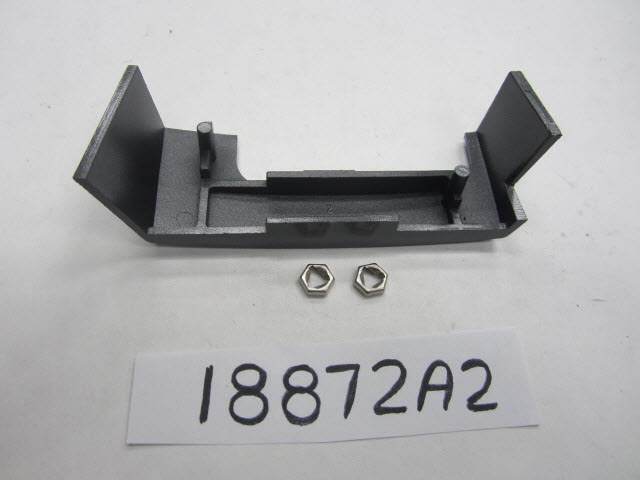

| #26 | 18872A 2 | COVER ASSEMBLY (GRAY) (1 required per assembly) |
  |
|
18872A 2 - Cover Assembly [ More info ] Unavailable |
| #26 | 18872A 4 | COVER ASSEMBLY (TRACKER) (1 required per assembly) |
  |
|
18872A 4 - Tr- Front Cover, NLA [ More info ] Unavailable |
| #27 | 11-813692 1 | LOCK NUT (2 required per assembly) |
  |
|
11-813692 1 - Nut, NLA [ More info ] Unavailable |
| #28 | 813076 4 | FRONT HANDLE (1 required per assembly) |
  |
|
813076 4 - Handle - Front A [ More info ]
|
| #29 | 10-18192 1 | SCREW, (.25-20 x .875) (1 required per assembly) |
  |
|
10-18192 1 - Screw, NLA [ More info ]
|
| #30 | 23-19666 | BUSHING (1 required per assembly) |
  |
|
23-19666 - Bushing, NLA [ More info ]
|
| #31 | 18727 | ROD (1 required per assembly) |
  |
|
18727 - Rod [ More info ]
|
