Parts for Mercury Marine 125 HP (4 Cylinder) Steering Handle Components

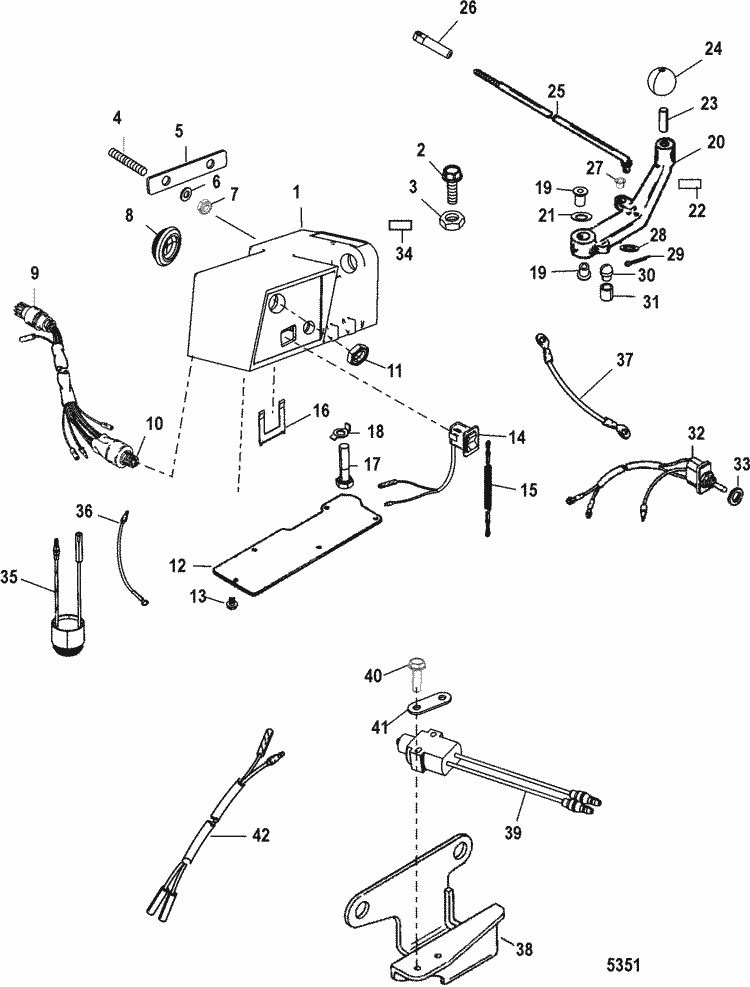

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 12022A34 | TILLER HANDLE KIT (1 required per assembly) |
  |
12022A34 - TILLER KT-100-BLK [ More info ] Unavailable |
|
  |
|
12022A41 - Tiller Handle Kit [ More info ] Unavailable |
| #1 | 12022A22 | BRACKET ASSEMBLY (1 required per assembly) |
  |
|
12022A22 - Bracket Kit - Black [ More info ]
|
| #2 | 10-849838 | SCREW, (.375-24 x 1.250) (1 required per assembly) |
  |
|
10-849838 - Screw [ More info ]
|
| #3 | 11-826709113 | NUT, (.375-24) Stainless Steel (1 required per assembly) |
  |
11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable |
|
  |
11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable |
|
  |
|
118M0204726 - NUT-BRASS Note: Priced Individually [ More info ]
|
| #4 | 16-822320 | STUD, (.3125 x 2.50) (2 required per assembly) |
  |
16-822320 - STUD [ More info ] Unavailable |
|
  |
|
16-8M0034421 - Stud [ More info ]
|
| #5 | 822263 | SPACER (1 required per assembly) |
  |
|
822263 - Spacer - Steering Arm [ More info ]
|
| #6 | 12-814806 | WASHER, (.344 x .688 x .065) Stainless Steel (2 required per assembly) |
  |
|
12-814806 - Washer, (.344 X .688 X .065) Stainless Steel [ More info ]
|
  |
|
12-8M0204690 - WASHER [ More info ] Unavailable |
| #7 | 11-826709 11 | NUT, (.312-24) Stainless Steel (2 required per assembly) |
  |
|
11-826709 11 - Nut (5/16-24) [ More info ]
|
| #8 | 12105 1 | GROMMET (1 required per assembly) |
  |
|
12105 1 - Grommet [ More info ]
|
| #9 | 84-12649A 5 | HARNESS ASSEMBLY (1 required per assembly) |
  |
|
84-12649A 5 - Harness Assembly [ More info ]
|
| #10 | 87-88107A 5 | SWITCH KIT, Key (1 required per assembly) (See Key Chart for Keys) |
  |
|
87-88107A 5 - Ignition Switch Kit [ More info ]
|
  |
|
MP52000 - Ignition Switch, 87-88107A5 [ More info ]
|
  |
|
MP41000 - Ignition Switch, 3 Position, Push to Choke, 87-88107 [ More info ]
|
| #11 | 11-879755 | NUT, Special - Black Nylon (1 required per assembly) (Black Nylon) |
  |
|
11-879755 - Nut, (black Nylon) [ More info ]
|
| #12 | 12015A 1 | COVER (1 required per assembly) |
  |
|
12015A 1 - Cover, NLA [ More info ] Unavailable |
  |
|
|
| #13 | 10-878608 | SCREW, (#10-16 x .500) (6 required per assembly) |
  |
|
10-878608 - Screw [ More info ]
|
| #14 | 87-11083A 4 | SWITCH ASSEMBLY, Stop (1 required per assembly) |
  |
|
87-11083A 4 - Switch Assembly [ More info ]
|
| #15 | 15920Q54 | LANYARD ASSEMBLY (1 required per assembly) |
  |
|
15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable |
| #16 | 12044 1 | RETAINER, Brass (1 required per assembly) |
  |
12044 1 - Retainer [ More info ] Unavailable |
|
  |
|
8M0032846 - Brass Retainer [ More info ]
|
| #17 | 10-40003 58 | SCREW, (M8 x 50) (1 required per assembly) |
  |
|
10-40003 58 - Screw [ More info ]
|
| #18 | 14-42981 | TAB WASHER (1 required per assembly) |
  |
|
14-42981 - Tab Washer [ More info ]
|
| #19 | 23-889732 | BUSHING (2 required per assembly) |
  |
|
23-889732 - Bushing [ More info ]
|
| #20 | 12021A 1 | LEVER ASSEMBLY, Shift (1 required per assembly) |
  |
|
12021A 1 - Shift Lever - Black [ More info ]
|
| #21 | 12-815351 | WASHER (1 required per assembly) |
  |
|
12-815351 - Washer [ More info ]
|
| #22 | NSS | NOT SOLD SEPARATE, Decal-Shift (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #23 | 16-58152 | STUD, (.375-24 x 1.125) (1 required per assembly) |
  |
16-58152 - Stud [ More info ] Unavailable |
|
  |
|
16-8M0034452 - Stud [ More info ]
|
| #24 | 98530 | KNOB (1 required per assembly) |
  |
|
98530 - Knob [ More info ] Unavailable |
| #25 | 49563 6 | SHIFT ROD (1 required per assembly) |
  |
|
49563 6 - Shift Rod [ More info ]
|
| #26 | 48419 | ROD END (1 required per assembly) |
  |
48419 - Rod End [ More info ] Unavailable |
|
  |
|
48419T - ROD END-2.16 IN [ More info ]
|
| #27 | 23-26856 | BUSHING (1 required per assembly) |
  |
|
23-26856 - Bushing [ More info ]
|
| #28 | 12-35950 | WASHER, (.273 x .437 x .031) Stainless Steel (1 required per assembly) |
  |
|
12-35950 - Washer, (.273 X .437 X .031) Stainless Steel [ More info ]
|
| #29 | 18-25191 | COTTER PIN (1 required per assembly) |
  |
|
18-25191 - Cotter Pin - Priced Individually [ More info ]
|
| #30 | 12016A 2 | DETENT/SPRING KIT (1 required per assembly) |
  |
|
12016A 2 - Detent/Spring Kit [ More info ] Unavailable |
| #32 | 87-14645A 4 | TRIM SWITCH (Power Trim) (1 required per assembly) |
  |
|
87-14645A 4 - Trim Switch Kit [ More info ]
|
| #33 | 49440 | NUT, (.468-32) (Power Trim) (1 required per assembly) |
  |
|
49440 - Lock Nut [ More info ]
|
| #35 | 816051A 2 | HORN ASSEMBLY (1 required per assembly) |
  |
|
816051A 2 - Horn Assembly [ More info ]
|
| #36 | 84-11149A 3 | CABLE ASSEMBLY (1 required per assembly) |
  |
|
84-11149A 3 - Cable Assembly [ More info ]
|
| #37 | 84-86324A 2 | CABLE ASSEMBLY (1 required per assembly) |
  |
|
84-86324A 2 - Cable Assembly [ More info ]
|
| #38 | 824930T 3 | BRACKET (1 required per assembly) (X-Long) |
  |
|
824930T 3 - Bracket [ More info ] Unavailable |
| #39 | 87-813960A 3 | SWITCH (1 required per assembly) (X-Long) |
  |
|
87-813960A 3 - Switch Assembly [ More info ]
|
  |
|
878M0052927 - Switch Assembly [ More info ]
|
| #40 | 10-880750 20 | SCREW, (M3 x 20) (2 required per assembly) (X-Long) |
  |
|
10-880750 20 - Screw [ More info ]
|
| #41 | 824923 | PLATE (1 required per assembly) (X-Long) |
  |
|
824923 - Switch Plate [ More info ]
|
| #42 | 84-824934A 3 | HARNESS ASSEMBLY (1 required per assembly) (X-Long) |
  |
|
84-824934A 3 - Harness Assembly [ More info ]
|
