Parts for Mercury Marine 1150 Clamp Bracket & Reverse Lock

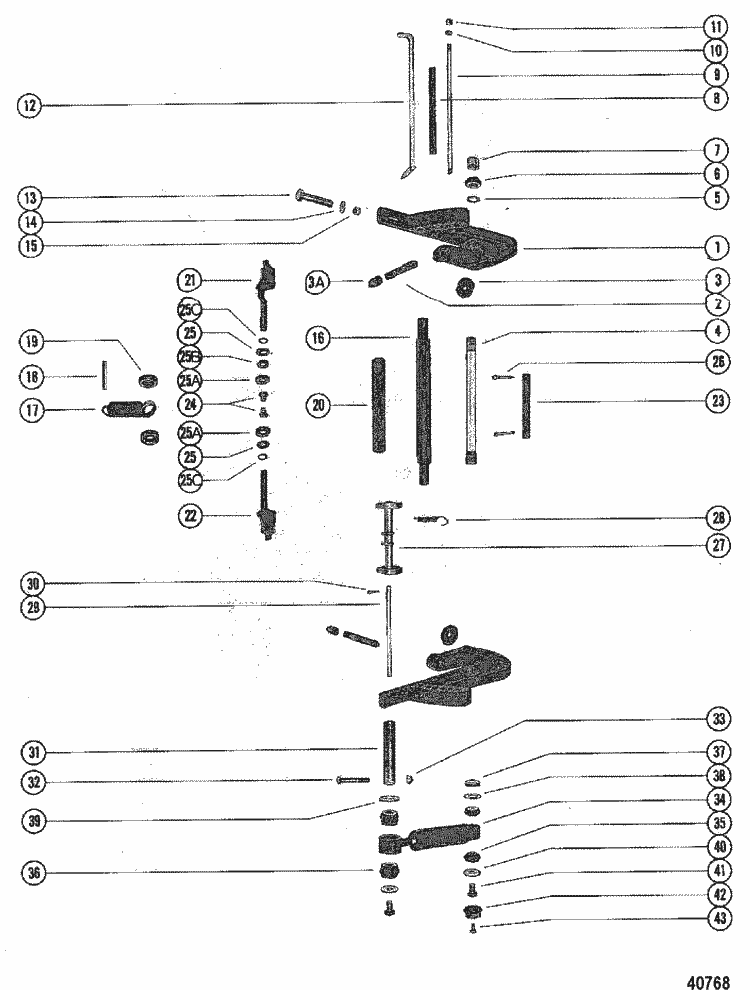

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-60476A75 | GASKET SET (1 required per assembly) |
  |
27-60476A75 - Engine Overhaul Gasket Set [ More info ] Unavailable |
|
  |
27-85653A79 - Gasket Set [ More info ] Unavailable |
|
  |
27-85653A32 - Engine Gasket Set [ More info ] Unavailable |
|
  |
|
27-85653A87 - Gasket Set [ More info ]
|
| #1 | 1440-5520A 1 | CLAMP BRACKET ASSEMBLY (2 required per assembly) SN# USA-4112634/Australia-8027114/Canada-7047257 & Below |
  |
1440-5520A 1 - Clamp Bracket Assembly [ More info ] Unavailable |
|
  |
|
1440-6044A 2 - 1440-6044A 2 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-6044A 6 |
  |
1440-6044A 6 - Clamp Bracket [ More info ] Unavailable |
|
  |
|
1440-6625A 3 - 1440-6625A 3 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-7374A 2 |
  |
1440-7374A 2 - Clamp Bracket Assembly [ More info ] Unavailable |
|
  |
|
1440-8394A 1 - Clamp Bracket Assembly [ More info ] Unavailable |
| #1 | 1440-5576A 1 | CLAMP BRACKET ASSEMBLY (2 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522 |
  |
1440-5576A 1 - Clamp Bracket Assembly [ More info ] Unavailable |
|
  |
1440-5576A 2 - Clamp Bracket [ More info ] Unavailable |
|
| #1 | 1440-6044A 2 | CLAMP BRACKET ASSEMBLY (2 required per assembly) SN# USA-4310785/Canada-7075523 & Up |
| #2 | 28403A 3 | THUMB SCREW ASSEMBLY (2 required per assembly) SN# USA-4112634/Australia-8027114/Canada-7047257 & Below |
  |
|
28403A 3 - Thumb Screw , NLA [ More info ] Unavailable |
| #2 | 69214A 1 | THUMB SCREW ASSEMBLY (2 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522 |
  |
69214A 1 - THUMB SCREW [ More info ] Unavailable |
|
  |
10-73649A 1 - Thumb Screw Assembly [ More info ] Unavailable |
|
  |
|
10-78492A 1 - Screw Assembly, NLA [ More info ] Unavailable |
| #2 | 10-73649A 1 | THUMB SCREW ASSEMBLY (2 required per assembly) SN# USA-4310785/Canada-7075523 & Up |
| #3 | 12-28404 | WASHER, THUMB SCREW (2 required per assembly) SN# USA-4112634/Australia-8027114/Canada-7047257 & Below |
  |
|
12-28404 - Wahser, Thumb Screw, NLA [ More info ]
|
| #3 | 12-70988 | WASHER, THUMB SCREW (2 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522 |
  |
|
12-70988 - Washer, Thumb Screw, NLA [ More info ]
|
| #3A | 75043 | CAP, THUMB SCREW (2 required per assembly) SN# USA-4310785/Canada-7075523 & Up |
  |
|
|
| #4 | 30664 | TUBE, TILT (1 required per assembly) |
  |
|
30664 - Tilt Tube [ More info ]
|
  |
30664 1 - Tilt Tube [ More info ] Unavailable |
|
  |
30664 2 - Tilt Tube [ More info ] Unavailable |
|
  |
883067 - Tilt Tube [ More info ] Unavailable |
|
  |
8M0035074 - Tilt Tube [ More info ] Unavailable |
|
  |
|
8M0041936 - Tilt Tube [ More info ]
|
| #5 | 12-52864 | WASHER (2 required per assembly) |
  |
|
12-52864 - Washer, Tilt Tube, NLA [ More info ]
|
| #6 | 11-56041 | NUT, (.875-14) (2 required per assembly) |
  |
11-56041 - Nut (7/8-14) [ More info ] Unavailable |
|
  |
11-30499 - Nut (7/8-14) [ More info ] Unavailable |
|
  |
|
11-858869 - Nut, (.875-14) [ More info ]
|
| #7 | 53078 | CAP, PLASTIC (2 required per assembly) |
  |
|
53078 - Plastic Cap, NLA [ More info ]
|
| #8 | 23-59624 | SPACER, CLAMP BRACKET STUD (1 required per assembly) |
  |
|
23-59624 - Spacer - Clamp Bracket Stud [ More info ]
|
| #9 | 16-59625 | STUD (NOT USED WITH FULL POWER TRIM) (1 required per assembly) |
  |
|
16-59625 - Stud, NLA [ More info ]
|
| #10 | 13-26993 | LOCKWASHER, (.312) (2 required per assembly) |
  |
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
  |
|
138M0204647 - LOCKWASHER, Priced Individually [ More info ]
|
| #11 | 11-28770 | NUT, (.312-24) Stainless Steel (2 required per assembly) |
  |
|
11-28770 - Nut (5/16-24) [ More info ]
|
| #12 | 17-49930A 1 | PIN ASSEMBLY, Tilt Lock (NOT USED WITH FULL POWER TRIM) (1 required per assembly) |
  |
17-49930A 1 - Tilt Pin Assembly [ More info ] Unavailable |
|
  |
|
17-8M0026068 - Pin Assembly - Tilt [ More info ]
|
| #13 | 10-68298 | BOLT, (.375-16 x 3.250), CLAMP BRACKET TO BOAT TRANSOM (LOWER) (2 required per assembly) |
  |
|
10-68298 - Screw, NLA [ More info ]
|
| #13 | 10-68299 | SCREW, (.375-16 x 3.00) Stainless Steel, CLAMP BRACKET TO BOAT TRANSOM (UPPER) (2 required per assembly) |
  |
|
10-68299 - Screw - Priced Individually [ More info ]
|
| #14 | 12-68410 | WASHER (LOWER) (2 required per assembly) |
  |
|
12-68410 - Washer, NLA [ More info ]
|
| #14 | 12-68300 | WASHER, (..88 x .39 x .06) (UPPER) (2 required per assembly) |
  |
|
12-68300 - Washer, (..88 X .39 X .06) [ More info ]
|
| #15 | 11-68411 | NUT, (.375-16) (4 required per assembly) |
  |
|
11-68411 - Nut (3/8-16) [ More info ]
|
  |
|
11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ]
|
| #16 | 55-28416 | PIN, UPPER SHOCK MOUNTING (1 required per assembly) |
  |
|
55-28416 - Upper Shock Pin, NLA [ More info ]
|
| #17 | 24-28659 | SPRING (NOT USED WITH FULL POWER TRIM) (1 required per assembly) |
  |
24-28659 - Spring, Coil - Swivel Bracket [ More info ] Unavailable |
|
  |
|
24-94891 - Spring, Coil - Swivel Bracket,NLA [ More info ]
|

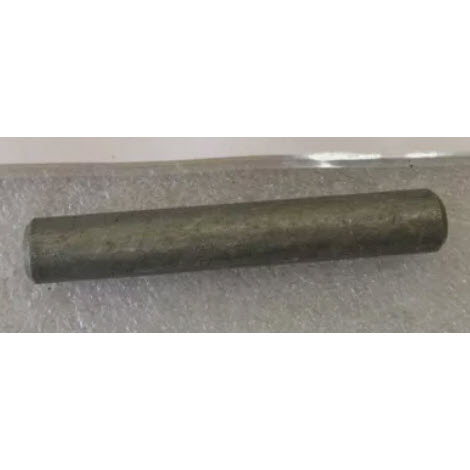

| #18 | 17-38311 | PIN (NOT USED WITH FULL POWER TRIM) (1 required per assembly) |
  |
|
17-38311 - Pin, Coil Spring Mounting, NLA [ More info ]
|
| #19 | 23-28688 | SPACER, RUBBER (NOT USED WITH FULL POWER TRIM) (2 required per assembly) |
  |
|
23-28688 - Spacer, NLA [ More info ] Unavailable |
| #20 | 63473 | TUBE (USED WITH FULL POWER TRIM)-LONG SH (1 required per assembly) (LONG SHAFT) |
  |
|
63473 - Tube, NLA [ More info ]
|
| #21 | 47799A 1 | TILT LOCK ASSEMBLY, STARBOARD (1 required per assembly) SN# USA-4567951/Australia-8027439/Canada-7087422 & Below |
  |
47799A 1 - Tilt Lock Assembly [ More info ] Unavailable |
|
  |
|
76386 - Tilt Lock, Starboard [ More info ]
|
| #21 | 76386 | TILT LOCK ASSEMBLY (STARBOARD) (1 required per assembly) SN# USA-4567952/Canada-7087423 & Up |
| #22 | 47800A 1 | TILT LOCK ASSEMBLY, PORT (1 required per assembly) SN# USA-4567951/Australia-8027439/Canada-7087422 & Below |
  |
47800A 1 - Tilt Lock Assembly [ More info ] Unavailable |
|
  |
|
|
  |
|
|
| #22 | 76385 | TILT LOCK ASSEMBLY (PORT) (1 required per assembly) SN# USA-4567952/Canada-7087423 & Up |
| #23 | 47802 | TUBE, TILT LOCK (1 required per assembly) SN# USA-4567951/Australia-8027439/Canada-7087422 & Below |
  |
|
47802 - Tube, NLA [ More info ]
|
| #23 | 76387 | TUBE, TILT LOCK (1 required per assembly) SN# USA-4567952/Canada-7087423 & Up |
  |
76387 - Coupling [ More info ] Unavailable |
|
  |
|
79659 - Tilt Lock Coupling, NLA [ More info ]
|
| #24 | 23-47803 | BUSHING (2 required per assembly) SN# USA-4567951/Australia-8027439/Canada-7087422 & Below |
  |
|
23-47803 - Bushing, NLA [ More info ]
|
| #25 | 13-69150 | WAVE WASHER (2 required per assembly) SN# USA-4567951/Australia-8027439/Canada-7087422 & Below |
  |
|
13-69150 - Wave Washer - Priced Individually [ More info ]
|
| #25A | 26-22734 | SEAL, Oil (2 required per assembly) SN# USA-4567952/Canada-7087423 & Up |
  |
|
26-22734 - Seal, NLA [ More info ] Unavailable |
| #25B | 12-76388 | WASHER (STARBOARD SIDE ONLY) (1 required per assembly) SN# USA-4567952/Canada-7087423 & Up |
  |
|
12-76388 - Washer, Tilt Lock (starboar Side Only), NLA [ More info ]
|
| #25C | 25-62702 | O-RING, (.301 x .070) (2 required per assembly) SN# USA-4567952/Canada-7087423 & Up |
  |
25-62702 - O-ring, (.301 X .070) [ More info ] Unavailable |
|
  |
|
25-62702 1 - O-Ring [ More info ]
|
| #26 | 18-47959 | COTTER PIN, TILT LOCK (2 required per assembly) |
  |
|
18-47959 - Cotter Pin - Priced Individually [ More info ]
|
| #27 | 70692 | LOCK ASSEMBLY, Reverse (NOT USED WITH FULL POWER TRIM) (1 required per assembly) |
  |
|
|
  |
|
87431 - Hook, NLA [ More info ]
|
| #28 | 24-29821 | SPRING (NOT USED WITH FULL POWER TRIM) (1 required per assembly) |
  |
|
24-29821 - Spring, Reverse Lock Tension,NLA [ More info ]
|
| #29 | 56349 | SHAFT (NOT USED WITH FULL POWER TRIM) (1 required per assembly) |
  |
|
56349 - Shaft, NLA [ More info ] Unavailable |
| #30 | 18-45882 | COTTER PIN (NOT USED WITH FULL POWER TRIM) (1 required per assembly) |
  |
|
18-45882 - Cotter Pin - Priced Individually [ More info ]
|
| #31 | 55-65447 | PIN, LOWER SHOCK MOUNTING (2 required per assembly) (SHORT SHAFT) |
  |
55-65447 - Pin, Lower Shock Mounting [ More info ] Unavailable |
|
  |
55-69653 - Pin, Lower Shock [ More info ] Unavailable |
|
  |
|
55-69653 1 - Pin, NLA [ More info ]
|
| #31 | 55-28414 | PIN, LOWER SHOCK MOUNTING (2 required per assembly) (LONG SHAFT) |
  |
|
55-28414 - Shock Pin, NLA [ More info ]
|
| #32 | 10-21937 | SCREW, LOWER SHOCK PIN (2 required per assembly) (LONG SHAFT) |
  |
|
10-21937 - Screw - Priced Individually [ More info ]
|
| #33 | 11-46887 | NUT, (1/4-28) (2 required per assembly) (LONG SHAFT) |
  |
11-46887 - Nut, (1/4-28) [ More info ] Unavailable |
|
  |
11-20184 - Nut, (1/4-28x7/32) [ More info ] Unavailable |
|
  |
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #34 | 55-58780A 2 | SHOCK ABSORBER (NOT USED WITH FULL POWER TRIM) (2 required per assembly) |
  |
|
55-58780A 2-Shock Absorber-See note [ More info ]
|
  |
55-58780A 3 - Shock Absorber [ More info ] Unavailable |
|
  |
|
55-58780A 7 - Shock Abs Assembly -bl, NLA [ More info ] Unavailable |
| #35 | 23-32171 | BUSHING, RUBBER (UPPER)(NOT USED WITH FULL POWER TRIM) (4 required per assembly) |
  |
|
23-32171 - Bushing, NLA [ More info ]
|
| #36 | 23-28198 | BUSHING, RUBBER (LOWER)(NOT USED WITH FULL POWER TRIM) (4 required per assembly) |
  |
|
23-28198 - Bushing, NLA [ More info ] Unavailable |
| #37 | 23-28199 | SPACER (2 required per assembly) SN# USA-4394236/Australia-8027439/Canada-7075522 & Below |
  |
|
23-28199 - Spacer - Upper Shock Bushing To Clamp Bracket - NLA [ More info ]
|
| #37 | 23-73203 | BUSHING (2 required per assembly) SN# USA-4394237/Canada-7075523 & Up |
  |
|
23-73203 - Bushing, NLA [ More info ]
|
| #38 | 12-28196 | WASHER, UPPER BUSHING RETAINER (INNER) (2 required per assembly) |
  |
|
12-28196 - Washer, Upper Bushing Reainer(inner), NLA [ More info ]
|
| #39 | 12-59378 | WASHER, LOWER BUSHING RETAINER (INNER) (2 required per assembly) |
  |
|
12-59378 - Washer, NLA [ More info ]
|
| #40 | 12-28421 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel (4 required per assembly) SN# USA-4567951/Australia-8027439/Canada-7087422 & Below |
  |
|
12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ]
|
  |
|
12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ]
|
| #40 | 12-69374 | WASHER (4 required per assembly) SN# USA-4567952/Canada-7087423 & Up |
  |
|
12-69374 - Washer [ More info ]
|
| #41 | 10-53077 | SCREW (4 required per assembly) SN# USA-4567951/Australia-8027439/Canada-7087422 & Below |
  |
10-53077 - Bolt [ More info ] Unavailable |
|
  |
|
10-69375A 1 - Screw & Washer, NLA [ More info ] Unavailable |
| #41 | 10-69375 | SCREW (4 required per assembly) SN# USA-4567952/Canada-7087423 & Up |
  |
|
10-69375 - Screw, NLA [ More info ]
|
| #42 | 70679 | COVER (2 or 4 required per assembly) SN# USA-4567951/Australia-8027439/Canada-7087422 & Below |
  |
|
70679 - Trim Cylinder Cover, NLA [ More info ]
|
| #43 | 10-37655 | SCREW, (#10-32 x .500) (2 or 4 required per assembly) SN# USA-4567951/Australia-8027439/Canada-7087422 & Below |
  |
|
10-37655 - Screw - Priced Individually [ More info ]
|
