Parts for Mercury Marine 110 Ignition Components

Revise Search: All Models > 110 > 7027323 - 7111347 (Canada) > Ignition Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	339-5209A 1	STATOR ASSEMBLY (1 required per assembly) UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107
		339-5209A 1 - Lamination Assembly [ More info ] Unavailable
		339-5209A 3 - Lamination [ More info ] $43.99 1 In Stock.
		339-5209A 9 - Lamination Assembly, NLA [ More info ] Unavailable

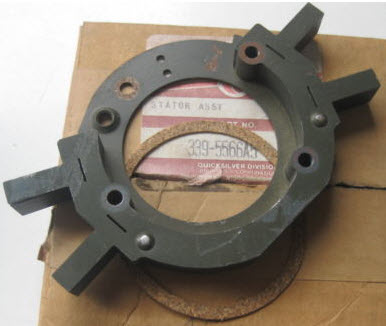

#1	339-5566A 1	STATOR ASSEMBLY (1 required per assembly) UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272
		339-5566A 1 - 339-5566A 1 - STATOR ASSY [ More info ] Unavailable Replaced by 339-5566A 5
		339-5566A 5 - Stator Lamination Assembly, NLA [ More info ] $37.73 3 In Stock.
#1	339-5209A 3	STATOR ASSEMBLY (1 required per assembly) UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP
#2	10-66707	SCREW, STATOR TO END CAP (7/8") (3 required per assembly)
		10-66707 - Screw, NLA [ More info ] Unavailable
#3	10-35400	SCREW, STATOR TO END CAP (3/8") - MANUAL (1 required per assembly)
		10-35400 - Screw - Priced Individually, NLA [ More info ] $2.25 10+ In Stock.
#4	339-5312A 1	COIL ASSEMBLY (3 1/2" AND 1 1/2" LEADS) (1 required per assembly) UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107
		339-5312A 1 - Coil, NLA [ More info ] $48.99 $41.49 10+ In Stock.
#4	339-5313A 1	COIL ASSEMBLY (4 5/8" AND 3 3/4" LEADS) (1 required per assembly) UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107
		339-5313A 1 - Coil, NLA [ More info ] $47.82 $40.50 10+ In Stock.
#5	54-59538	CLIP, COIL RETAINING (2 required per assembly) UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107
		54-59538 - Clip, NLA [ More info ] $4.54 10+ In Stock.
#6	54-65927	CLIP, COIL RETAINING (2 required per assembly) UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107
		54-65927 - Clip, NLA [ More info ] $5.00 $4.24 3 In Stock.
#7	86-66560	TERMINAL BLOCK, STATOR (1 required per assembly) UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107
		86-66560 - Terminal Block,NLA [ More info ] Unavailable
#8	10-20646	SCREW, TERMINAL BLOCK TO STATOR (5/8") (1 required per assembly) UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107
		10-20646 - Screw - Priced Individually [ More info ] Unavailable
		10-38055 - Screw - Priced Individually [ More info ] $12.92 10+ In Stock.
#9	11-46438	NUT, TERMINAL BLOCK SCREW (1 required per assembly) UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107
		11-46438 - Nut (#10-32) [ More info ] $5.79 10+ In Stock.
#10	10-62568	SCREW, LEADS TO TERMINAL BLOCK (3/8") (1 required per assembly) UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107
		10-62568 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#4	339-5589A 1	COIL ASSEMBLY (2 1/4" AND 4 1/4" LEADS) (1 required per assembly) UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272
		339-5589A 1 - Coil Assembly, NLA [ More info ] $21.56 10+ In Stock.

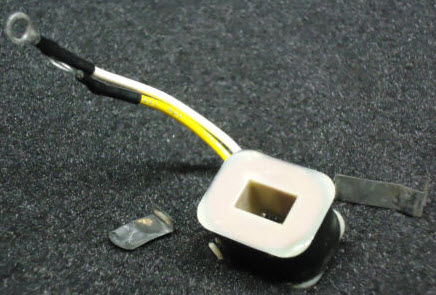

#4	339-5590A 1	COIL ASSEMBLY (3 3/8" AND 4 3/8" LEADS) (1 required per assembly) UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272
		339-5590A 1 - Coil Assembly, NLA [ More info ] $26.95 10+ In Stock.
#7	86-69348	TERMINAL BLOCK, STATOR (1 required per assembly) UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272
		86-69348 - TERMINAL BLOCK,NLA [ More info ] $5.00 $4.24 1 In Stock.
#8	10-69347	SCREW, TERMINAL BLOCK TO STATOR (5/8") (1 required per assembly) UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272
		10-69347 - SCREW,NLA [ More info ] Unavailable
#10	10-22654	SCREW, LEADS TO TERMINAL BLOCK (3/8") (1 required per assembly) UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272
		10-22654 - Screw, NLA [ More info ] Unavailable
#4	339-6119A 1	COIL ASSEMBLY (5 1/2" AND 6 3/8" LEADS) (1 required per assembly) UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP
		339-6119A 1 - Stator Coil Assembly, NLA [ More info ] Unavailable
#4	339-6120A 1	COIL ASSEMBLY (1 3/4" AND 3 1/2" LEADS) (1 required per assembly) UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP
		339-6120A 1 - Stator Coil Assembly, NLA [ More info ] Unavailable
#7	86-74474	TERMINAL BLOCK, STATOR (1 required per assembly) UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP
		86-74474 - Terminal Block,NLA [ More info ] Unavailable
		86-85365 - Terminal Block,NLA [ More info ] $6.52 $5.53 6 In Stock.
#11	338-5286A 1	TRIGGER HOUSING ASSEMBLY (1 required per assembly) UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272
		338-5286A 1 - Trigger Assemblynla [ More info ] Unavailable
#12	66392A 1	COIL ASSEMBLY, TRIGGER (1 required per assembly) UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272
		66392A 1 - Coil Assembly, NLA [ More info ] $44.00 $37.27 6 In Stock.
#11	338-5286A 6	TRIGGER HOUSING ASSEMBLY (1 required per assembly) UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP
		338-5286A 6 - TRIGGER ASSY [ More info ] Unavailable
		338-7283A 1 - TRIGGER PLATE [ More info ] Unavailable
		338-7283A 2 - Trigger [ More info ] Unavailable
		338-7283A 3 - Trigger Plate, NLA, $35 Refundable Core Charge will be Added [ More info ] $247.92 10+ In Stock.
#14	66371	LINK, TRIGGER HOUSING TO THROTTLE ELVER (1 required per assembly)
		66371 - LINK,NLA [ More info ] Unavailable
		42501 - LINK,NLA [ More info ] Unavailable
#15	22-65110	NUT, PUSH - LINK TO TRIGGER HOUSING (1 required per assembly)
		11-65110 - Nut [ More info ] $1.70 $1.36 10 In Stock.
#16	339-5287A 1	SWITCH BOX (1 required per assembly) UNITED STATES 3795658 THRU 3922994 AUSTRALIA 8015040 THRU 8018739 BELGIUM 9041439 THRU 9057623 CANADA 7027323 THRU 7035222
		339-5287A 1 - Switch Box [ More info ] Unavailable
		339-6222A10 - Switch Box [ More info ] Unavailable
		18-99218 - Switch Box, 339-5787, 6222A10 114-6222 [ More info ] $355.15 1 In Stock.
		114-6222 [ More info ] $327.55 In Stock
#16	339-5287A 2	SWITCH BOX (1 required per assembly) UNITED STATES 3922995 THRU 4387436 AUSTRALIA 8018740 THRU 8037874 BELGIUM 9057624 THRU 9113964 CANADA 7035223 THRU 7074272
		339-5287A 2 - Switch Box [ More info ] Unavailable
#16	339-5287A 3	SWITCH BOX (1 required per assembly) UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP
		339-5287A 3 - Switch Box [ More info ] Unavailable
		339-5287A 4 - Switch Box [ More info ] Unavailable
#17	10-20100	SCREW, SWITCH ATTACHING (1/2") (2 required per assembly)
		10-20100 - Screw - Priced Individually [ More info ] $0.32 10+ In Stock.
		10-69022 - Screw [ More info ] $1.10 $0.62 10+ In Stock.
#18	12-56681	WASHER, SWITCH BOX ATTACHING SCREW (2 required per assembly)
		12-56681 - Washer, (.203 X .500 X .032) [ More info ] $1.67 10+ In Stock.
		128M0204666 - WASHER Note: Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#19	61990	STA-STRAP (5 required per assembly)
		61990 - Tie Strap - Priced Individually [ More info ] $0.70 4 In Stock.
#20	86-67460	TERMINAL BLOCK (1 required per assembly) UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272
		86-67460 - Terminal Block, NLA [ More info ] $7.00 $5.93 10+ In Stock.
#21	10-48408	SCREW, TERMINAL BLOCK ATTACHING (5/8") (2 required per assembly) UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272
		10-48408 - Screw - Priced Individually [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#22	10-45218	SCREW, LEADS TO TERMINAL BLOCK (3/8") (2 required per assembly) UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272
		10-45218 - Screw, NLA [ More info ] Unavailable
#23	56319A 7	LEAD ASSEMBLY, STOP SWITCH (11") (1 required per assembly) UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107
		56319A 7 - Jumper Wire, NLA [ More info ] Unavailable
#24	59060	BOOT, LEAD ASSEMBLY (1 required per assembly) UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107
		59060 - Boot, NLA [ More info ] $1.63 $1.39 10+ In Stock.
