Parts for Mercury Marine 110 Throttle Control Linkage

Revise Search: All Models > 110 > 2798057 - 3263262 > Throttle Control Linkage

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	39038	SOCKET, THROTTLE CONTROL (1 required per assembly)
		39038 - Socket, NLA [ More info ] $2.50 $2.13 5 In Stock.
#2	23-31011	BUSHING, NYLONG - THROTTLE CONTROL SOCKET (1 required per assembly)
		23-31011 - Bushing, NLA [ More info ] Unavailable
#3	43-39030	GEAR, HORIZONTAL - THROTTLE CONTROL SOCKET (1 required per assembly)
		43-39030 - Pinion Gear [ More info ] Unavailable
#4	17-24800	PIN, ROLL - GEAR TO THROTTLE CONTROL SOCKET (1 required per assembly)
		17-24800 - Pin -roll - Priced Individually [ More info ] $0.70 10+ In Stock.
#5	39029	HOUSING, THROTTLE CONTROL (1 required per assembly)
		39029 - Housing, NLA [ More info ] Unavailable
#6	10-22421	SCREW, THROTTLE CONTROL HOUSING TO CRANKCASE (1 1/4") (2 required per assembly)
		10-22421 - Screw, NLA [ More info ] Unavailable
		10-56500 - Screw, NLA [ More info ] $2.89 $1.63 10+ In Stock.
#7	13-26992	LOCKERWASHER, THROTTLE CONTROL HOUSING SCREW (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#8	24-39042	SPRING, NEUTRAL SPEED LIMITER FOLLOWER (1 required per assembly)
		24-39042 - Spring, Neutral Speed Limiter Follower,NLA [ More info ] $11.10 $9.41 10+ In Stock.
#9	10-21807	SCREW, LIMITER TO CONTROL HOUSING (1 required per assembly)

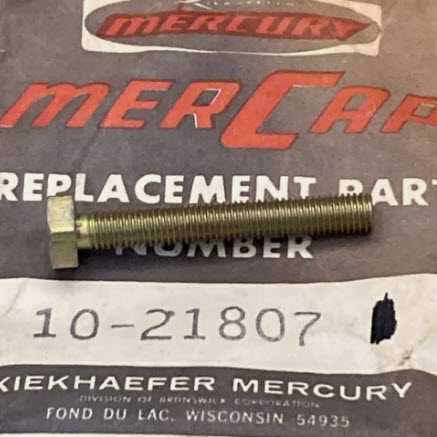

		10-21807 - Screw, NLA [ More info ] $3.02 $2.56 10+ In Stock.
#10	12-30971	WASHER, SPEED LIMITER FOLLOWER STUD (2 required per assembly)
		12-30971 - Washer [ More info ] $1.25 10+ In Stock.
		128M0174819 - WASHER [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
		12-8M0179961 - WASHER [ More info ] Unavailable
#11	23-30972	BUSHING, SPEED LIMITER FOLLOWER STUD (1 required per assembly)
		23-30972 - Bushing, NLA [ More info ] Unavailable
#12	32447	FOLLOWER, NUTRAL SPEED LIMITER (1 required per assembly)
		32447 - FOLLOWER [ More info ] Unavailable

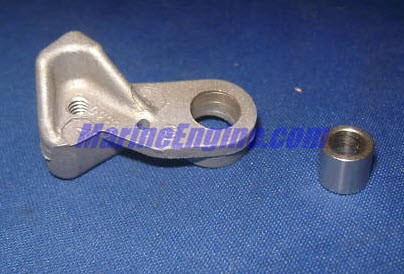

		63308A 1 - Follower, NLA [ More info ] $12.99 $11.00 5 In Stock.
#13	11-20088	NUT, JAM - SPEED LIMITER FOLLOWER STUD (1 required per assembly)
		11-20088 - Nut (.250X28) [ More info ] $3.01 $2.56 10+ In Stock.
#14	54-39788	CLAMP, STOP SWITCH LEAD - SPEED LIMITER FOLLOWER STUD (1 required per assembly)
		54-39788 - Clamp [ More info ] $1.36 $1.16 2 In Stock.
#15	12-29245	WASHER, SPEED LIMITER FOLLOWER STUD (1 required per assembly)
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#16	11-28941	NUT, SPEED LIMITER FOLLOWER STUD (1 required per assembly)
		11-28941 - Nut, NLA [ More info ] $3.90 10+ In Stock.
		11-826713 9 - Nut [ More info ] $2.59 4 In Stock.
#17	36107	STOP NUTRAL SPEED LIMITER (1 required per assembly)
		32-36107 - Hose - Water Inlet - 10.5 Inch [ More info ] Unavailable
		32-39315A 1 - Hose - Water Inlet [ More info ] Unavailable
		32-47642 - Hose -49 Inch [ More info ] $29.52 7 In Stock.
#18	10-28710	SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8") (1 required per assembly)
		10-28710 - Screw, NLA [ More info ] Unavailable
#19	12-24676	WASHER, NEUTRAL SPEED LIMITER STOP SCREW (1 required per assembly)
		12-24676 - Washer, (.200 X .440 X .032) [ More info ] $1.50 10+ In Stock.
#20	43-39031	GEAR AND SHAFT, THROTTLE CONTROL (1 required per assembly)
		43-39031 - Gear And Shaft, NLA [ More info ] Unavailable
#21	13-39041	WASHER, WAVE - GEAR AND SHAFT (LOWER) (1 required per assembly)
		13-39041 - WAVE WASHER,NLA [ More info ] Unavailable
#22	23-30868	BUSHING, NYLON - GEAR AND SHAFT TO THROTTLE CONTROL HOUSING (1 required per assembly)
		23-30868 - Bushing, NLA [ More info ] $4.00 $3.39 6 In Stock.
#23	39033A 1	LEVER ASSEMBLY, THROTTLE CONTROL (1 required per assembly)
		39033A 1 - Lever Assembly [ More info ] $7.55 2 In Stock.
#24	23-26841	BUSHING, NYLON - GEAR AND SHAFT (UPPER) (1 required per assembly)
		23-26841 - Bushing - Priced Individually [ More info ] $7.59 10+ In Stock.
#25	17-22896	PIN, ROLL - THROTTLE CONTROL ELVER TO GEAR AND SHAFT (1 required per assembly)
		17-22896 - Pin -roll, NLA [ More info ] $7.81 10+ In Stock.
#26	10-23015	SCREW, ADJUSTING - THROTTLE ADVANCE (1 required per assembly)
		10-23015 - Screw [ More info ] Unavailable
#27	11-20645	NUT, LOCK - THROTTLE ADVANCE ADJUSTING SCREW (1 required per assembly)
		11-20645 - Nut,(10X32) [ More info ] $0.21 6 In Stock.
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
