Parts for Mercury Marine 105 HP Jet Steering Attaching Kit

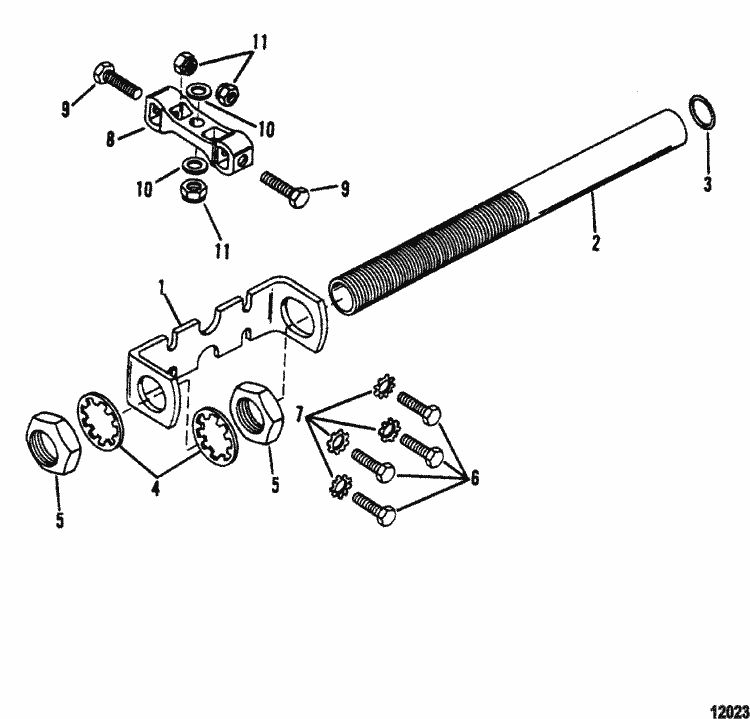

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 92876A 8 | STEERING ATTACHING KIT (SINGLE) (1 required per assembly) |
  |
|
92876A 8 - Attaching Kit - Single Eng [ More info ]
|
| #1 | 41055A 1 | MOUNT BRACKET (1 required per assembly) |
  |
|
41055A 1 - Mount Kit [ More info ]
|
| #2 | 71565A 2 | TUBE ASSEMBLY (1 required per assembly) |
  |
|
71565A 2 - Steering Tube Kit [ More info ]
|
| #3 | 25-48462 | O-RING, (.614 x .070) (1 required per assembly) |
  |
|
25-48462 - O-ring, (.614 X .070) [ More info ]
|
| #4 | 13-821203 | LOCKWASHER (2 required per assembly) |
  |
|
13-821203 - LockWasher [ More info ]
|
| #5 | 11-37984 | NUT, (.875-14) (2 required per assembly) |
  |
|
11-37984 - Nut, (.875-14) [ More info ]
|
  |
|
11-8M0041651 - Nut - Priced Individually [ More info ]
|
| #6 | 10-38601 | SCREW, (.250-28 x 1.250) (4 required per assembly) |
  |
|
10-38601 - Screw - Priced Individually [ More info ]
|
| #7 | 13-78968 | LOCKWASHER, (.250 Internal) (4 required per assembly) |
  |
|
13-78968 - LockWasher - Priced Individually [ More info ]
|
| #8 | 88319 | COUPLING (1 required per assembly) |
  |
88319 - Coupling [ More info ] Unavailable |
|
  |
850791 - COUPLING [ More info ] Unavailable |
|
  |
|
850791T - Coupling [ More info ]
|
| #9 | 10-73732 | SCREW, (.375-24 x 1.120) (2 required per assembly) |
  |
|
10-73732 - Screw [ More info ]
|
| #10 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel (2 required per assembly) |
  |
|
12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ]
|
| #11 | 11-34863 | NUT, (.375-24) (3 required per assembly) |
  |
11-34863 - Nut (3/8-24) [ More info ] Unavailable |
|
  |
11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable |
|
  |
11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable |
|
  |
|
118M0204726 - NUT-BRASS Note: Priced Individually [ More info ]
|
