Parts for Mercury Marine 105 HP Jet Oil Injection Components

Revise Search: All Models > 105 HP Jet > None (USA) > Oil Injection Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

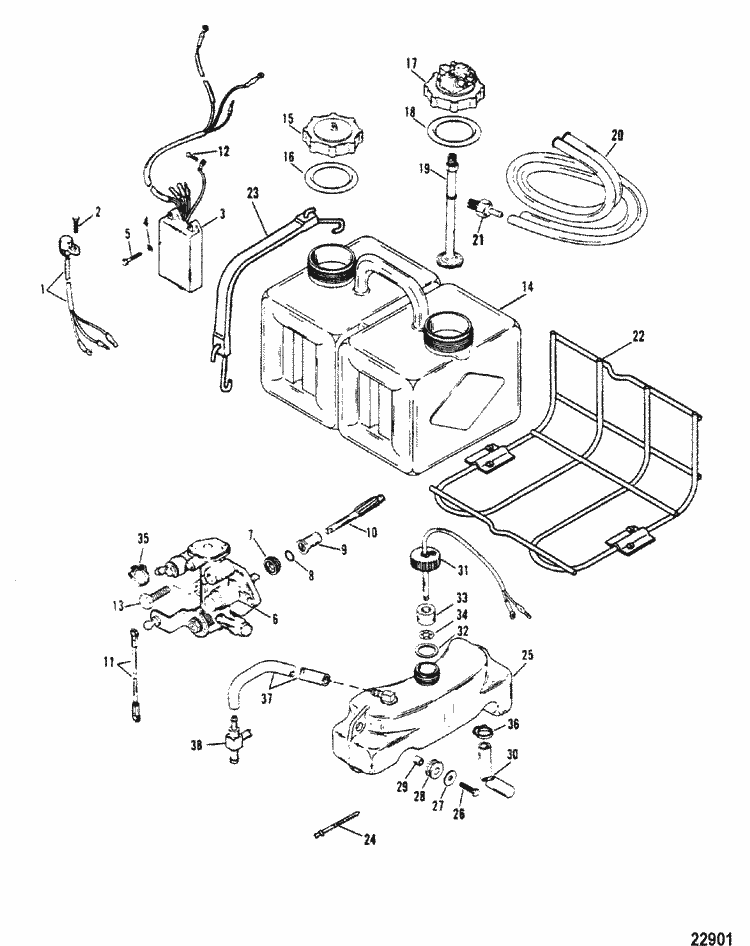

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	823434A93	POWERHEAD (1 required per assembly) (XR6/Magnum III) SN# 0D284788 & Up
		823434A93 - Powerhead [ More info ] Unavailable
		823434A96 - Powerhead MARINE [ More info ] Unavailable
		823434A97 - Powerhead [ More info ] Unavailable
		823434T97 - Ord 823434R97, NLA [ More info ] Unavailable
#	812815A92	POWERHEAD (1 required per assembly) (135/150)
		812815A92 - Powerhead [ More info ] Unavailable
		812815A96 - Powerhead MARINE [ More info ] Unavailable
		812815A97 - Powerhead [ More info ] Unavailable
		812815T97 - Powerhead [ More info ] Unavailable
		878365T00 - Ord 812815R97, NLA [ More info ] Unavailable
#	813043A94	POWERHEAD (1 required per assembly) (200)
		813043A94 - Powerhead [ More info ] Unavailable
		813043A96 - Powerhead MARINE [ More info ] Unavailable
		813043A97 - PH 135/200 2.5 [ More info ] Unavailable
		813043T97 - ORD 813043R97 [ More info ] Unavailable
#	812817A92	POWERHEAD (1 required per assembly) (XR6/Magnum III) SN# 0D284787 & Below
		812817A92 - Powerhead [ More info ] Unavailable
		812817A96 - Powerhead MARINE [ More info ] Unavailable
		812817A97 - Powerhead [ More info ] Unavailable
		812817T97 - Ord 812817R97, NLA [ More info ] Unavailable
#1	12430A 4	SENSOR ASSEMBLY (1 required per assembly)
		12430A 4 - Sensor Kit [ More info ] $145.49 Available to Order: Shipping delay up to 10 days.
#2	10-812832 1	SCREW, (#10-16 x .600) (1 required per assembly)
		10-812832 1 - SCREW [ More info ] Unavailable
		10-878609 - Screw [ More info ] $2.59 4 In Stock.
#3	41470A26	WARNING MODULE ASSEMBLY (1 required per assembly)
		41470A26 - Low Oil Module Assembly [ More info ] $426.49 Available to Order: Shipping delay up to 10 days.
#4	12-38833	WASHER (3 required per assembly)
		12-38833 - Washer [ More info ] $3.79 $3.04 10+ In Stock.
#5	10-69020	SCREW, (#10-32 x .875) (3 required per assembly)
		10-69020 - Screw - Priced Individually [ More info ] Unavailable
		10-69020 1 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#6	815698	OIL PUMP (135/150) (1 required per assembly)
		815698 - Oil Pump [ More info ] Unavailable
		815698T - Oil Pump Assembly [ More info ] $392.99 Available to Order: Shipping delay up to 10 days.
#6	815699	PUMP ASSEMBLY, Oil (XR6/MAGNUM III/175/200) (1 required per assembly)
		815699 - Oil Pump [ More info ] Unavailable
		815699T - Oil Pump Assembly [ More info ] Unavailable
#7	814103 2	BUSHING, Worm (1 required per assembly)
		814103 2 - Bushing [ More info ] $40.49 Available to Order: Shipping delay up to 10 days.
#8	25-11379	O-RING (1 required per assembly)
		25-11379 - O-ring, Oil Pump [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#9	23-41429A 2	BEARING ASSEMBLY (1 required per assembly)
		23-41429A 2 - Bearing - Drive Gear [ More info ] $35.16 1 In Stock.
#10	43-14563	GEAR, Driven (1 required per assembly)
		43-14563 - Driven Gear [ More info ] $77.49 Available to Order: Shipping delay up to 10 days.
#11	19385 16	LINK (1 required per assembly)
		19385 16 - Link, NLA [ More info ] $49.57 9 In Stock.
#12	10-42813	SCREW (1 required per assembly)
		10-42813 - Screw [ More info ] $0.20 $0.16 7 In Stock.
#13	10-32228	SCREW, (#10-32 x .625) (1 required per assembly)
		10-32228 - Screw - Priced Individually [ More info ] $1.80 $0.37 10+ In Stock.
#13	10-41507	SCREW, (#10-32 x 1.120) (1 required per assembly)
		10-41507 - Screw [ More info ] $0.50 $0.10 10 In Stock.
#14	1257-8742 1	TANK (1 required per assembly)
		1257-8742 1 - Oil Reservoir [ More info ] $90.99 Available to Order: Shipping delay up to 10 days.
#15	36-43298A 2	CAP ASSEMBLY (1 required per assembly)
		36-43298A 2 - Cap Assembly [ More info ] $31.99 Available to Order: Shipping delay up to 10 days.
#16	25-11332	O-RING, (2.225 x .210) (1 required per assembly)
		25-11332 - O-ring, (2.225 X .210) [ More info ] $4.85 1 In Stock.
#17	816190A 3	HOUSING ASSEMBLY, Adapter (1 required per assembly)
		816190A 3 - Housing Assembly Adaptor [ More info ] Unavailable
		816190A 4 - Oil Sender Assembly [ More info ] $201.99 Available to Order: Shipping delay up to 10 days.
#19	32-99802	TUBE (1 required per assembly)
		32-99802 - Tube Assembly [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
#20	32-99439	HOSE, (114.00 Inches) (1 required per assembly)
		32-99439 - Hose - Oil - 114 Inch [ More info ] $89.49 In Stock
#21	21-43278	FITTING (CRANKCASE) (1 required per assembly)
		21-43278 - Check Valve [ More info ] Unavailable
		21-43278 1 - Check Valve [ More info ] Unavailable
		21-43278 3 - Check Valve [ More info ] Unavailable
		21-878105 - Check Valve [ More info ] Unavailable
		21-878105 1 - Check Valve [ More info ] $45.99 3 In Stock.
#22	12335A 1	BRACKET KIT (1 required per assembly)
		12335A 1 - Bracket Kit [ More info ] $110.99 Available to Order: Shipping delay up to 10 days.
#23	12323A 1	CORD/HOOK KIT (1 required per assembly)
		12323A 1 - Cord/Hook Kit [ More info ] $23.49 Available to Order: Shipping delay up to 10 days.
#24	54-816311	CABLE TIE, (8.00 Inches) (AR required per assembly)
		54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 8 In Stock.
#25	99443 3	OIL RESERVOIR (1 required per assembly)
		99443 3 - Reservoir-OIL [ More info ] Unavailable
		99443 4 - Oil Reservoir [ More info ] Unavailable
		99443 5 - Oil Reservoir [ More info ] Unavailable
		99443 6 - Oil Reservoir [ More info ] $233.49 Available to Order: Shipping delay up to 10 days.
#27	12-42118	WASHER (6 required per assembly)
		12-42118 - Washer, Oil Reservoir Screw [ More info ] $3.89 $3.12 8 In Stock.
#28	25-42117	GROMMET (3 required per assembly)
		25-42117 - Grommet, Oil Reservoir Screw [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#29	23-42116	BUSHING (3 required per assembly)
		23-42116 - Bushing [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#30	32-823814 36	TUBING, (15.500 Inch Bulk) (Cut to 4.75 Inches) (1 required per assembly)
		32-823814 36 - Tubing-15.5 INCH [ More info ] Unavailable
		32-823814 51 - TUBING-23 INCH [ More info ] Unavailable
		32-823814 55 - Tubing - 25 In - Priced Individually [ More info ] $23.69 4 In Stock.
#31	36-43300A 9	CAP ASSEMBLY (1 required per assembly)
		36-43300A 9 - Oil Tank Cap Assembly [ More info ] $84.99 2 In Stock.
#32	27-43307	GASKET (1 required per assembly)
		27-43307 - Reservoir Cap Gasket [ More info ] Unavailable
		27-43307T - Gasket [ More info ] $6.09 3 In Stock.
#33	99022A 1	FLOAT ASSEMBLY (1 required per assembly)
		99022A 1 - Float Assembly [ More info ] $23.17 1 In Stock.
#34	11-99265	PUSHNUT (1 required per assembly)
		11-99265 - Push Nut [ More info ] $1.80 4 In Stock.
#35	54-41582 4	CLAMP (2 required per assembly) USE WHERE APPLICABLE
		54-41582 4 - Clamp, NLA [ More info ] $0.88 $0.74 10+ In Stock.
#36	54-41582 3	CLAMP (2 required per assembly) USE WHERE APPLICABLE
		54-41582 3 - Clamp, NLA [ More info ] $6.51 $5.51 10+ In Stock.
#37	32-830756109	HOSE, (57.00 Inches Bulk) (Cut to 5.25 Inches) (1 required per assembly)
		32-830756109 - Hose, 57 Inch [ More info ] Unavailable
		32-8M0047428 - Hose -57 Inch [ More info ] Unavailable
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 2 In Stock.
#38	22-42425	TEE (1 required per assembly)
		22-42425 - Fitting 5/16 Inch [ More info ] Unavailable
