Parts for Mercury Marine 105 HP Jet Fuel Pump

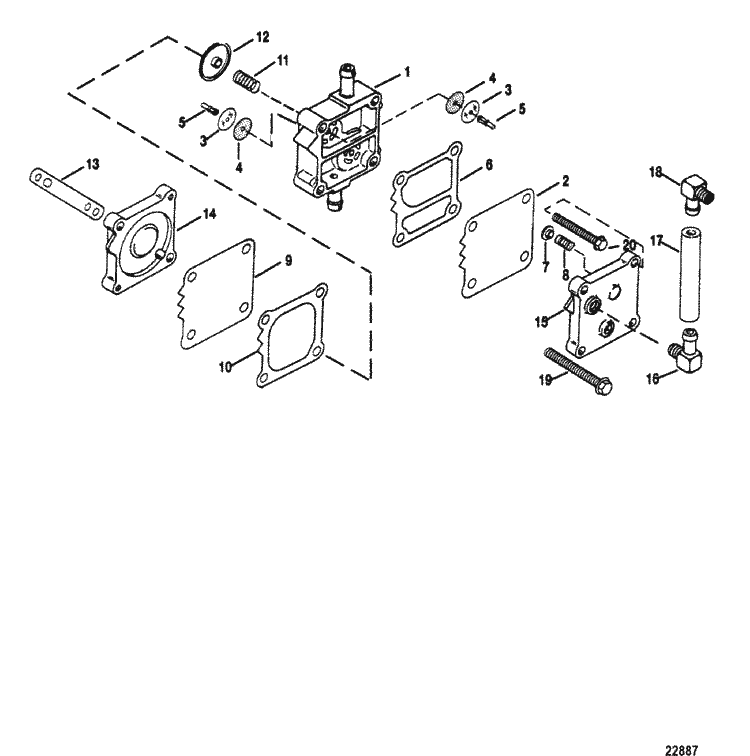

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 823434A93 | POWERHEAD (1 required per assembly) (XR6/Magnum III) SN# 0D284788 & Up |
  |
823434A93 - Powerhead [ More info ] Unavailable |
|
  |
823434A96 - Powerhead MARINE [ More info ] Unavailable |
|
  |
823434A97 - Powerhead [ More info ] Unavailable |
|
  |
|
823434T97 - Ord 823434R97, NLA [ More info ] Unavailable |
| # | 812815A92 | POWERHEAD (1 required per assembly) (135/150) |
  |
812815A92 - Powerhead [ More info ] Unavailable |
|
  |
812815A96 - Powerhead MARINE [ More info ] Unavailable |
|
  |
812815A97 - Powerhead [ More info ] Unavailable |
|
  |
812815T97 - Powerhead [ More info ] Unavailable |
|
  |
|
878365T00 - Ord 812815R97, NLA [ More info ] Unavailable |
| # | 813043A94 | POWERHEAD (1 required per assembly) (200) |
  |
813043A94 - Powerhead [ More info ] Unavailable |
|
  |
813043A96 - Powerhead MARINE [ More info ] Unavailable |
|
  |
813043A97 - PH 135/200 2.5 [ More info ] Unavailable |
|
  |
|
813043T97 - ORD 813043R97 [ More info ] Unavailable |
| # | 812817A92 | POWERHEAD (1 required per assembly) (XR6/Magnum III) SN# 0D284787 & Below |
  |
812817A92 - Powerhead [ More info ] Unavailable |
|
  |
812817A96 - Powerhead MARINE [ More info ] Unavailable |
|
  |
812817A97 - Powerhead [ More info ] Unavailable |
|
  |
|
812817T97 - Ord 812817R97, NLA [ More info ] Unavailable |
| # | 27-815791A92 | ENGINE GASKET SET (1 required per assembly) |
  |
|
27-815791A92 - Engine Gasket Set [ More info ]
|
  |
|
27-27673 - Gasket Set [ More info ]
|
| #1 | 14360A43 | FUEL PUMP ASSEMBLY (1 required per assembly) |
  |
14360A43 - Fuel Pump Kit [ More info ] Unavailable |
|
  |
14360A71 - Fuel Pump Kit [ More info ] Unavailable |
|
  |
|
14360A78 - Fuel Pump Kit [ More info ]
|
| #2 | 21-42990A10 | DIAPHAGM KIT (1 required per assembly) |
  |
|
21-42990A10 - Diaphragm Kit [ More info ]
|
  |
|
21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ]
|
  |
|
18-7817 - Fuel Pump Kit [ More info ]
|
  |
|
1399-39020 - Fuel Pump REPAIR KIT [ More info ]
|
| #3 | NSS | NOT SOLD SEPARATE, Check Valve-Rubber (2 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #13 | 27-98769 1 | GASKET (1 required per assembly) |
  |
|
27-98769 1 - Gasket [ More info ] Unavailable |
| #14 | 14430 3 | BASE (1 required per assembly) |
  |
|
14430 3 - Base [ More info ] Unavailable |
| #15 | 98775 2 | PLATE (1 required per assembly) |
  |
|
98775 2 - Plate -Chamber [ More info ]
|
| #16 | 22-99664 | ELBOW (1 required per assembly) |
  |
|
22-99664 - Elbow [ More info ]
|
  |
22-99664 1 - Elbow [ More info ] Unavailable |
|
  |
|
22-99664 2 - Elbow [ More info ]
|
| #17 | 32-830756109 | HOSE, (57.00 Inches Bulk) (1 required per assembly) |
  |
32-830756109 - Hose, 57 Inch [ More info ] Unavailable |
|
  |
32-8M0047428 - Hose -57 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #19 | 10-821300 50 | SCREW, (M6 x 50) (2 required per assembly) |
  |
|
10-821300 50 - Screw [ More info ]
|
| #20 | 10-821045 40 | SCREW, (M5 x 40) (2 required per assembly) |
  |
|
10-821045 40 - Screw [ More info ]
|
