Parts for Mercury Marine 105 HP Jet Dual Engine Extension Kit

Revise Search: All Models > 105 HP Jet > None (USA) > Dual Engine Extension Kit

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

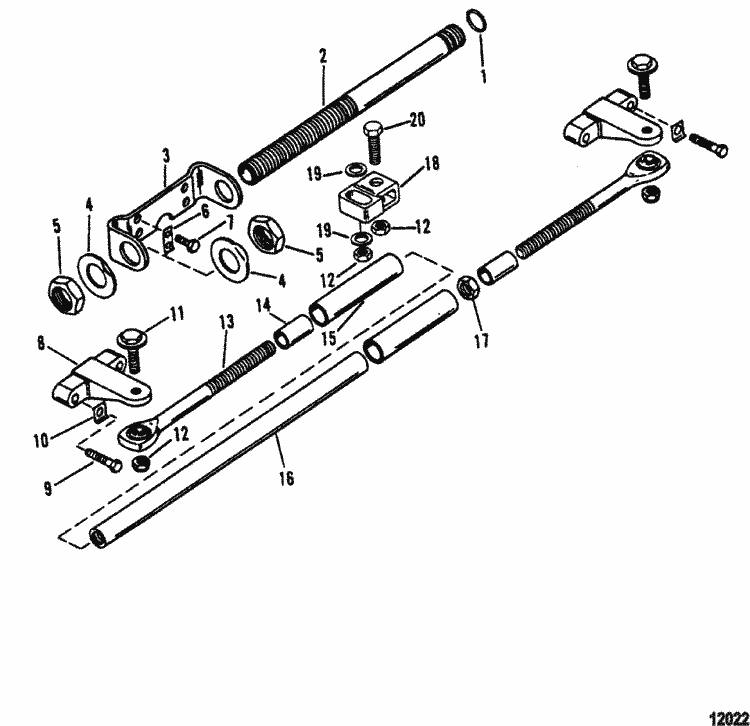

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	92876A 9	EXTENSION KIT, Dual Engine (1 required per assembly)
		92876A 9 - Extension Kit - Dual Eng [ More info ] $578.73 $388.93 5 In Stock.
#1	25-48462	O-RING, (.614 x .070) (1 required per assembly)
		25-48462 - O-ring, (.614 X .070) [ More info ] $1.80 3 In Stock.
#2	71565A 2	TUBE ASSEMBLY (1 required per assembly)
		71565A 2 - Steering Tube Kit [ More info ] $61.49 Available to Order: Shipping delay up to 10 days.
#3	41055	MOUNT (1 required per assembly)
		41055 - Steering Mount [ More info ] $62.77 Available to Order: Shipping delay up to 10 days.
#4	14-42100	TAB WASHER (2 required per assembly)
		14-42100 - Tab Washer [ More info ] $5.44 10 In Stock.
#5	11-37984	NUT, (.875-14) (2 required per assembly)
		11-37984 - Nut, (.875-14) [ More info ] $7.77 10+ In Stock.
		11-8M0041651 - Nut - Priced Individually [ More info ] $15.89 2 In Stock.
#6	88404	TAB WASHER (2 required per assembly)
		88404 - Lock Tab [ More info ] $2.29 $2.22 10+ In Stock.
#7	10-38601	SCREW, (.250-28 x 1.250) (4 required per assembly)
		10-38601 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#8	17729A 1	BRACKET (2 required per assembly)
		17729A 1 - Bracket Kit [ More info ] $80.10 $79.12 5 In Stock.
#9	10-62055	SCREW, (.3125-24 x 1.25) (4 required per assembly)
		10-62055 - Screw [ More info ] $2.29 $0.56 10+ In Stock.
#10	17728	TAB WASHER (4 required per assembly)
		17728 - Lock Tab [ More info ] $5.43 $5.22 5 In Stock.
#11	10-14000	SCREW, (.375-24 x 1.25) (4 required per assembly)
		10-14000 - Screw [ More info ] $3.32 10+ In Stock.
		10-849838 - Screw [ More info ] $22.61 6 In Stock.
#12	11-34863	NUT, (.375-24) (6 required per assembly)
		11-34863 - Nut (3/8-24) [ More info ] Unavailable
		11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable
		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#13	97933 1	STEERING EYE (2 required per assembly)
		97933 1 - Steering Eye [ More info ] $78.14 1 In Stock.
		8M0005848 - STEERING EYE [ More info ] Unavailable
		8M0026167 - Steering Eye [ More info ] $169.13 Available to Order: Shipping delay up to 10 days.
#14	23-23651	SLEEVE, (1.625) (2 required per assembly)
		23-23651 - Sleeve [ More info ] $4.74 Available to Order: Shipping delay up to 10 days.
#15	97931	TUBING, (4.00 Inches) (2 required per assembly)
		97931 - Tubing [ More info ] $9.55 $9.15 10 In Stock.
#16	814951 3	COUPLER, (15.00 Inches) (1 required per assembly)
		814951 3 - Coupler [ More info ] Unavailable
		8M0026098 - Coupler [ More info ] $188.30 Available to Order: Shipping delay up to 10 days.
#17	11-42099	NUT, (.562-18) (1 required per assembly)
		11-42099 - Nut (.562-18) [ More info ] $11.52 Available to Order: Shipping delay up to 10 days.
#18	22-821169	COUPLING (1 required per assembly)
		22-821169 - Coupling [ More info ] $36.19 Available to Order: Shipping delay up to 10 days.
#19	12-34931	WASHER, (.406 x .734 x .063) Stainless Steel (2 required per assembly)
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#20	10-94319	SCREW, (.375-24 x 1.5) (1 required per assembly)
		10-94319 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
