Parts for Mercury Marine 1000BP Starter Motor Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 50-55304A 1 | STARTER MOTOR ASSEMBLY, COMPLETE (PRESTOLITE) (1 required per assembly) |
  |
|
50-55304A 1 - Starter Motor,NLA [ More info ] Unavailable |
| # | 392-2516 | BUSHING, COMMUTATOR END CAP (1 required per assembly) |
  |
|
392-2516 - Bushing, NLA [ More info ] Unavailable |
| #1 | 11-35053 | NUT, PINION STOP COLLAR (1 required per assembly) |
  |
11-35053 - Nut (7/16-20) [ More info ] Unavailable |
|
  |
|
11-8M0143423 - NUT, Priced Individually [ More info ]
|
| #2 | 32406 | MOTOR DRIVE (1 required per assembly) |
  |
|
32406 - Starter Drive, NLA [ More info ] Unavailable |
| #3 | 24-32407 | SPRING, TENSION - MOTOR DRIVE (1 required per assembly) |
  |
|
24-32407 - Spring, Tension - Motor Drive,NLA [ More info ]
|
| #4 | 392-3693 | PLATE ASSEMBLY, DRIVE END (1 required per assembly) |
  |
|
392-3693 - Drive End Plate Assembly [ More info ] Unavailable |
| #5 | 392-2518 | BUSHING, DRIVE END PLATE (1 required per assembly) |
  |
|
392-2518 - Bushing, NLA [ More info ]
|
| #6 | 392-3906 | ARMATURE (1 required per assembly) |
  |
|
392-3906 - Armature [ More info ] Unavailable |
| #7 | 392-2523 | PACKAGE, ARMATURE THRUST WASHER (1 required per assembly) |
  |
|
392-2523 - Washer Package, NLA [ More info ]
|
| #8 | 392-3407 | FRAME AND FIELD ASSEMBLY (1 required per assembly) |
  |
|
392-3407 - Frame And Field Assembly, Starter [ More info ] Unavailable |
| #9 | 392-2521 | BRUSH AND TERMINAL SET (1 required per assembly) |
  |
|
392-2521 - Brush, NLA [ More info ]
|
| #10 | 392-2514 | SPRING SET, BRUSH (2 SPRINGS PER SET) (2 required per assembly) |
  |
|
392-2514 - Spring Set (2 Springs Per Set)NLA [ More info ]
|
| #11 | 392-2519 | BRUSH PLATE AND HOLDER ASSEMBLY (1 required per assembly) |
  |
|
392-2519 - Plate And Holder, NLA [ More info ]
|
| #12 | 392-3692 | END CAP ASSEMBLY, COMMUTATOR (1 required per assembly) |
  |
|
392-3692 - End Cap Assembly [ More info ] Unavailable |
| #13 | 16-35099 | STUD, STARTER MOTOR MOUNTING (1 3/16") (2 required per assembly) |
  |
16-35099 - STUD Note: Priced Individually [ More info ] Unavailable |
|
  |
16-64280 - STUD [ More info ] Unavailable |
|
  |
16-68164 - Stud, NLA [ More info ] Unavailable |
|
  |
|
16-64936 - Stud, NLA [ More info ]
|
| #14 | 392-3694 | BOLT, THRU - END CAP TO END PLATE (5/16 -13) (3 required per assembly) |
| #15 | 13-26993 | LOCKWASHER, THRU BOLT (3 required per assembly) |
  |
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
  |
|
138M0204647 - LOCKWASHER, Priced Individually [ More info ]
|

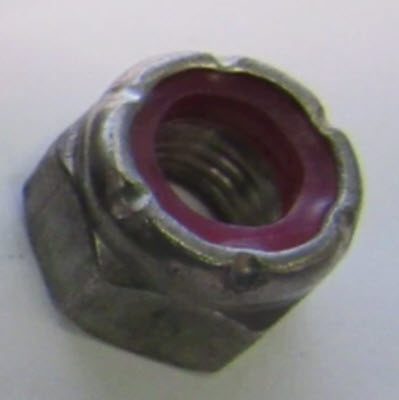

| #16 | 11-35814 | NUT, THRU BOLT (3 required per assembly) |
  |
11-35814 - Nut (5/16-24) [ More info ] Unavailable |
|
  |
|
11-826709 11 - Nut (5/16-24) [ More info ]
|
