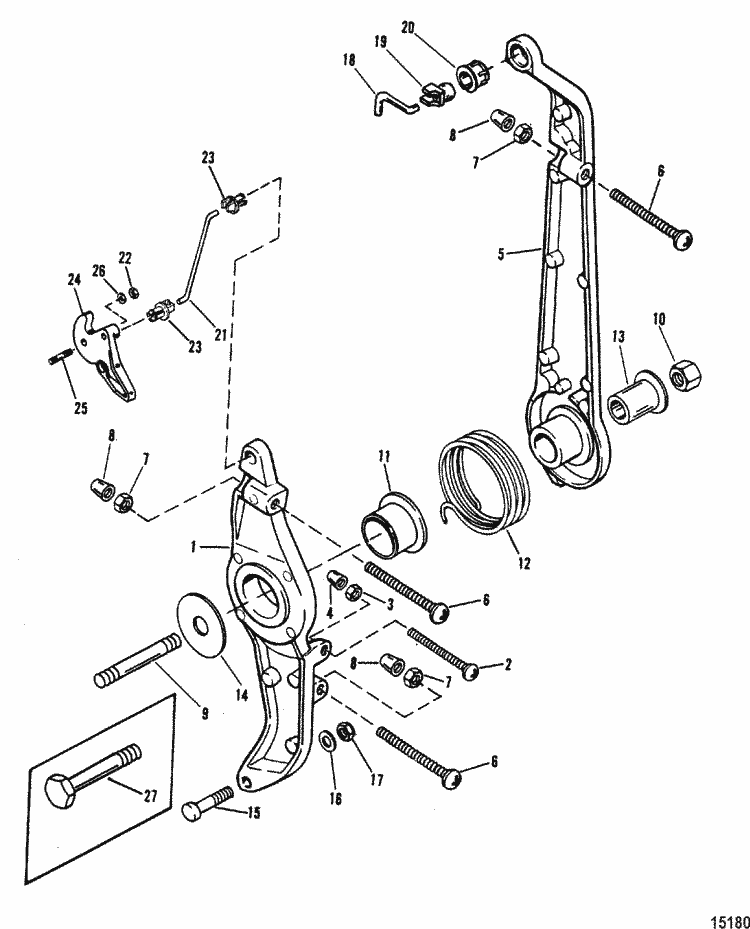

Parts for Mercury Marine 100 HP (4 Cylinder) Throttle & Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 44333 | LEVER, Throttle (1 required per assembly) |
  |
44333 - 884309T [ More info ] Unavailable |
|
  |
884309 - LEVER [ More info ] Unavailable |
|
  |
|
884309T - Lever [ More info ] Unavailable |
| #2 | 10-814775 | SCREW, Adjusting (5 mm) (1 required per assembly) |
  |
10-814775 - SCREW [ More info ] Unavailable |
|
  |
|
10-817582 - Screw [ More info ]
|
| #3 | 11-40021 1 | NUT, (M5) Stainless Steel (1 required per assembly) |
  |
|
11-40021 1 - Nut [ More info ]
|
| #4 | 48039 | CAP (1 required per assembly) |
  |
|
48039 - Nylon Cap [ More info ]
|
| #5 | 44335 | LEVER, Spark Advance (1 required per assembly) |
  |
44335 - LEVER [ More info ] Unavailable |
|
  |
884307 - LEVER [ More info ] Unavailable |
|
  |
|
884307T - LEVER,NLA [ More info ] Unavailable |
| #6 | 10-814776 | SCREW, Adjusting (M6 x 55) (3 required per assembly) |
  |
|
10-814776 - Screw [ More info ]
|
| #7 | 11-40021 2 | NUT, (M6) Stainless Steel (3 required per assembly) |
  |
|
11-40021 2 - Nut [ More info ]
|
| #8 | 42942 | CAP (3 required per assembly) |
  |
|
42942 - Nylon Cap [ More info ]
|
| #9 | 16-42986 | STUD (1 required per assembly) |
  |
|
16-42986 - Stud, NLA [ More info ]
|
| #10 | 11-90517 | NUT, (M10) (1 required per assembly) |
  |
|
11-90517 - Nut, (M10) [ More info ]
|
| #11 | 23-55171 | BUSHING (1 required per assembly) |
  |
|
23-55171 - Bushing [ More info ] Unavailable |
| #12 | 24-86310 | SPRING (1 required per assembly) |
  |
|
24-86310 - Spring, Return - Lever And Arm Screw [ More info ]
|
  |
|
24-73375 - Spring, Return - Lever And Arm Screw [ More info ] Unavailable |
| #13 | 23-812930A 1 | BUSHING (1 required per assembly) |
  |
|
23-812930A 1 - Bushing Kit [ More info ]
|
| #14 | 12-42980 | WASHER (1 required per assembly) |
  |
|
12-42980 - Washer [ More info ]
|
| #15 | 42927 | INSERT (1 required per assembly) |
  |
|
|
| #16 | 12-35459 | WASHER (1 required per assembly) |
  |
|
12-35459 - Washer (.265 X .620 X .06) [ More info ]
|
| #17 | 11-40063 4 | NUT, (M6) (1 required per assembly) |
  |
11-40063 4 - Nut [ More info ] Unavailable |
|
  |
11-826833 6 - Nut , Priced Individually [ More info ] Unavailable |
|
  |
11-40144 - NUT Note: Priced Individually [ More info ] Unavailable |
|
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #18 | 44338 | SPARK ADVANCE ROD (1 required per assembly) |
  |
44338 - Link Spark Advance [ More info ] Unavailable |
|
  |
|
878170 - Link Spark Advance [ More info ]
|
| #19 | 93421 | SWIVEL BALL (2 required per assembly) |
  |
|
93421 - Swivel Ball [ More info ]
|
| #20 | 93254 | SWIVEL BASE (2 required per assembly) |
  |
|
93254 - Swivel Base [ More info ]
|
| #21 | 44337 | LINK (1 required per assembly) |
  |
44337 - Link [ More info ] Unavailable |
|
  |
|
878173 - Throttle Link Control [ More info ] Unavailable |
| #23 | 23-93248 1 | BUSHING (2 required per assembly) |
  |
|
23-93248 1 - Bushing, New Number 238M0215006 [ More info ] Unavailable |
| #24 | 14518T 1 | CAM, Throttle (1 required per assembly) |
  |
14518T 1 - Cam [ More info ] Unavailable |
|
  |
|
14518A 2 - Cam Kit [ More info ]
|
| #25 | 16-42984 | STUD (1 required per assembly) |
  |
16-42984 - Stud [ More info ] Unavailable |
|
  |
16-42984 5 - STUD Note: Priced Individually [ More info ] Unavailable |
|
  |
|
16-816194 9 - Stud [ More info ]
|
| #26 | 12-69056 | WASHER, (.255 x .620 x .030) Stainless Steel (1 required per assembly) |
  |
|
12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ]
|
| #27 | 10-40071 80 | SCREW, (M10 x 45), Design II (1 required per assembly) |
  |
|
10-40071 80 - Screw [ More info ]
|
