Parts for Mercury Mark & Kiekhaefer Mark 6, 6A Magneto Assembly (Scintilla)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 10-20880 | SCREW AND LOCKWASHER, CABLE CLIP (2 required per assembly) |
  |
|
10-20880 - SCREW,NLA [ More info ] Unavailable |
| # | 28-22818 | KEY, FLYWHEEL (1 required per assembly) |
  |
|
28-22818 - Key, NLA [ More info ] Unavailable |
| # | 10-23095 | SCREW, LIMIT PLATE AND FLANGE PLATE FASTENING (4 required per assembly) |
  |
|
10-23095 - SCREW,NLA [ More info ] Unavailable |
| # | 308-440 | MAGNETO ASSEMBLY, COMPLETE (SCINTILLA) (1 required per assembly) |
  |
|
308-440 - NLA NLA [ More info ] Unavailable |
| # | 12-20878 | WASHER, HIGH TENSION LEAD CLAMP SCREW (2 required per assembly) |
  |
|
12-20878 - Washer (10 X 3/8 O D X 1/32) Metal [ More info ]
|
| # | 399-1151 | CLIP, CABLE (2 required per assembly) |
  |
|
399-1151 - Cable Clip [ More info ] Unavailable |
| # | 204-455 | FLYWHEEL (1 required per assembly) |
  |
|
204-455 - Flywheel, NLA [ More info ] Unavailable |
| # | 399-459A 1 | LIMIT PLATE AND LINK ASSEMBLY (1 required per assembly) |
  |
|
399-459A 1 - LINK ASSY,NLA [ More info ] Unavailable |
| #1 | 399-119 | PLATE, STATOR (1 required per assembly) |
  |
|
399-119 - Stator Plate [ More info ] Unavailable |
| #2 | 399-131 | COVER, MAGNETO (1 required per assembly) |
  |
|
399-131 - MAG Cover, NLA [ More info ] Unavailable |
| #3 | 12-20885 | WASHER, FELT - MAGNETO COVER (1 required per assembly) |
  |
|
12-20885 - Washer, Felt - Magneto Cover, NLA [ More info ]
|
| #4 | 399-132 | RING, LOCK - MAGNETO COVER (1 required per assembly) |
  |
|
399-132 - Lock Ring [ More info ] Unavailable |

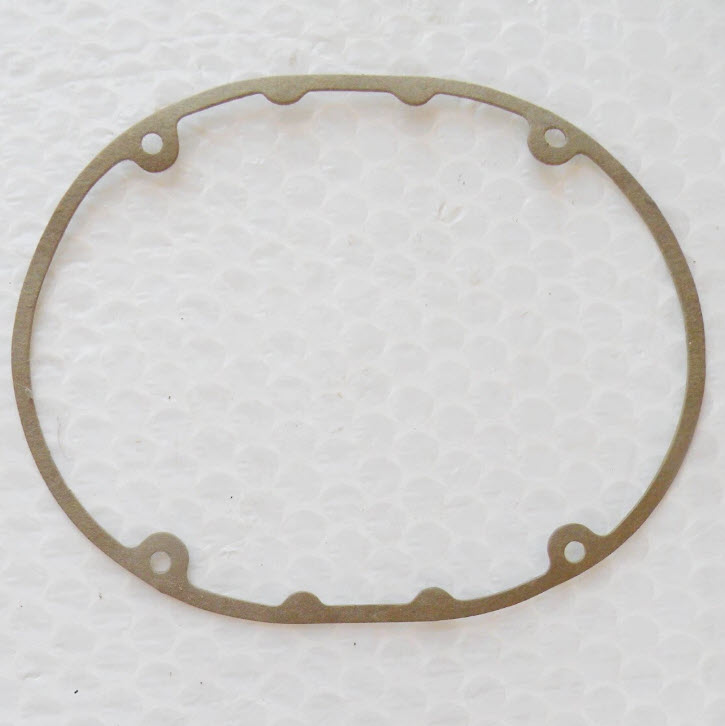

| #5 | 27-20600 | GASKET, MAGNETO COVER (1 required per assembly) |
  |
|
27-20600 - Magneto Cover Gasket [ More info ] Unavailable |
| #6 | 10-20879 | SCREW AND LOCKWASHER, BREAKER ASSEMBLY MOUNTING (2 required per assembly) |
  |
|
10-20879 - SCREW,NLA [ More info ] Unavailable |
| #7 | 399-121A 1 | BREAKER ASSEMBLY (2 required per assembly) |
  |
|
399-121A 1 - Breaker [ More info ] Unavailable |
| #8 | 13-20378 | LOCKWASHER, TERMINAL NUT (2 required per assembly) |
  |
13-20378 - LockWasher, NLA [ More info ] Unavailable |
|
  |
|
13-26994 - LockWasher, NLA [ More info ]
|
| #9 | 11-20881 | NUT, TERMINAL (2 required per assembly) |
  |
|
11-20881 - NUT,NLA [ More info ] Unavailable |
| #10 | 10-20883 | SCREW, CONDENSER MOUNTING (2 required per assembly) |
  |
|
10-20883 - SCREW,NLA [ More info ] Unavailable |
| #11 | 13-20882 | LOCKWASHER, CONDENSER MOUNTING SCREW (2 required per assembly) |
  |
|
13-20882 - Lockwasher [ More info ] Unavailable |
| #12 | 399-123 | CONDENSER (2 required per assembly) |
  |
|
33-123 - SP #RN5C [ More info ] Unavailable |
  |
|
BR6ES - NGK Spark Plug, 4922 [ More info ]
|
  |
|
RN5C - Champion Spark Plug ( #123) [ More info ]
|

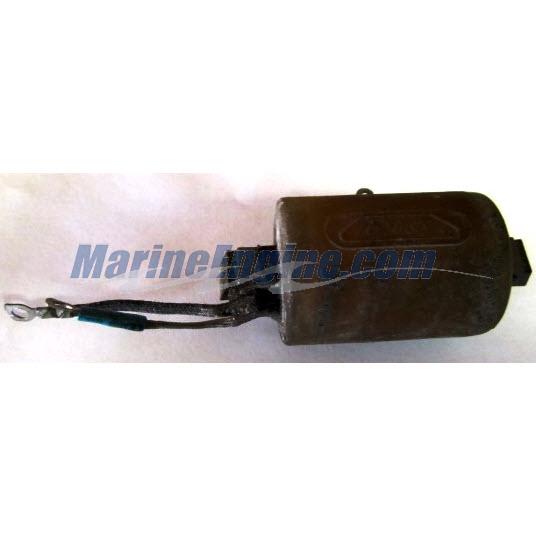

| #13 | 399-125 | COIL, IGNITION (2 required per assembly) |
  |
|
399-125 - Ignition Coil, NLA [ More info ] Unavailable |
| #14 | 399-126 | CLIP, COIL (4 required per assembly) |
  |
|
399-126 - Clamp, Coil Core Fastening [ More info ] Unavailable |
| #15 | 399-129 | INSULATOR, HIGH TENSION LEAD (2 required per assembly) |
  |
|
33129 - Hull Vent Fitting [ More info ]
|
  |
|
AR6FS - NGK Spark Plug, 3323 [ More info ]
|
  |
|
RF10C - Champion Spark Plug ( #129) [ More info ]
|
| #16 | 399-1152 | CLAMP,HIGH TENSION LEAD (2 required per assembly) |
  |
|
399-1152 - Clamp [ More info ] Unavailable |
| #17 | 10-20884 | SCREW AND LOCKWASHER, HIGH TENSION LEAD CLAMP (2 required per assembly) |
  |
|
10-20884 - SCREW,NLA [ More info ] Unavailable |
| #18 | 399-1248 | LEAD, HIGH TENSION - SHORT (1 required per assembly) |
  |
399-1248 - LEAD WIRE [ More info ] Unavailable |
|
  |
23564A10 - LEAD ASSY [ More info ] Unavailable |
|
  |
52615A 1 - Lead Assembly [ More info ] Unavailable |
|
  |
84-813706A46 - Cable Assembly [ More info ] Unavailable |
|
  |
|
84-821945A46 - Cable Assembly [ More info ]
|
| #19 | 399-1154 | LEAD, HIGH TENSION - LONG (1 required per assembly) |
  |
399-1154 - LEAD WIRE [ More info ] Unavailable |
|
| #20 | 399-1155 | MAGNET, ROTATING (1 required per assembly) |
  |
|
399-1155 - Magnet [ More info ] Unavailable |
| #21 | 10-20602 | SCREW AND LOCKWASHER, COVER FASTENING (4 required per assembly) |
  |
|
10-20602 - Screw, NLA [ More info ]
|
| #22 | 12-20603 | WASHER, COVER FASTENING SCREW (4 required per assembly) |
  |
12-20603 - Washer, Cover Screw [ More info ] Unavailable |
|
  |
|
12-26014 - Washer, NLA [ More info ]
|
| #23 | 15-22371 | SHIM, MAGNETO PILOT (.015) (1 required per assembly) |
  |
|
15-22371 - Shim, NLA [ More info ] Unavailable |
| #24 | 24-24347 | SPRING, MAGNETO HOLD DOWN (2 required per assembly) |
  |
|
24-24347 - SPRING,NLA [ More info ] Unavailable |
| #25 | 399-787 | PLATE, MAGNETO FLANGE (1 required per assembly) |
  |
|
399-787 - Magneto Flange Plate [ More info ] Unavailable |
