Parts for Mercury Mark & Kiekhaefer Mark 35A Top Cowl & Starter Assembly

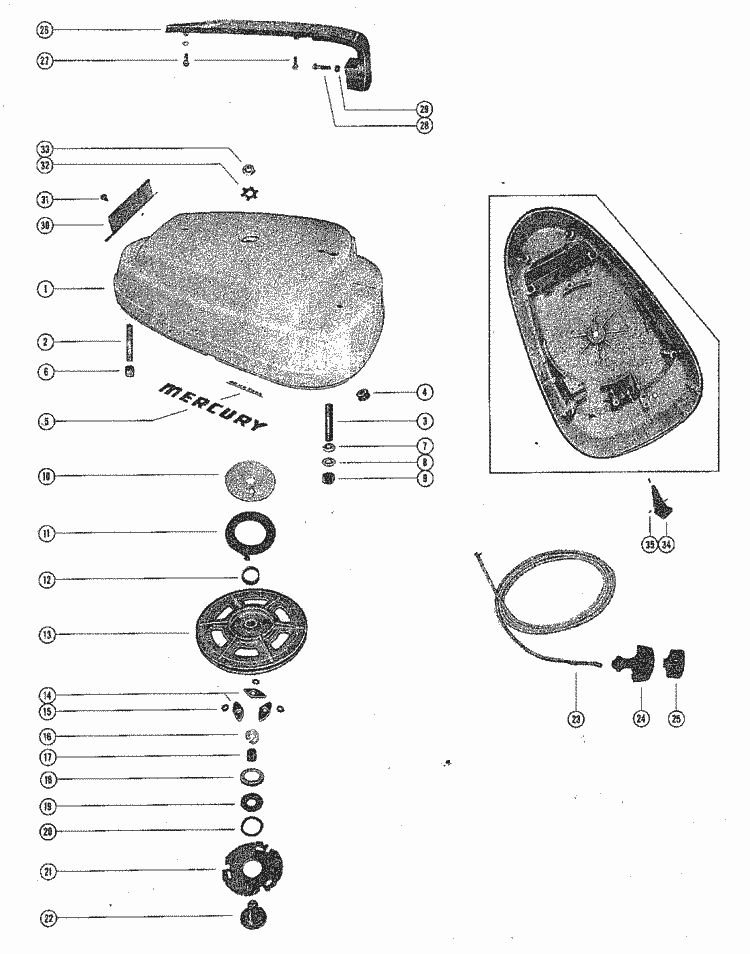

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 13-26992 | LOCKWASHER, HANDLE FASTENING SCREW (2,2,,,,, required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| # | 11-28968 | NUT, SPEED-VENT SCREEN TO TOP COWL - SEE NOTE #1 BELOW (4,4,,,,, required per assembly) |
  |
|
11-28968 - Nut, Speed ,NLA [ More info ]
|
| #1 | 177-1600A 2 | TOP COWL ASSEMBLY (1,1,1,1,1, required per assembly) |
  |
|
177-1600A 2 - Top Cowl,NLA [ More info ] Unavailable |
| #2 | 16-20500 | STUD, REAR - TOP COWL TO COVER (2,2,2,2,2, required per assembly) |
  |
|
16-20500 - Stud, NLA [ More info ]
|
| #3 | 16-20353 | STUD, FRONT-TOP COWL TO CRANKCASE (2,2,2,2,2, required per assembly) |
  |
|
16-20353 - Stud - Priced Individually [ More info ]
|
| #4 | 25-20116 | GROMMET, CHOKE KNOB (1,1,1,1,1, required per assembly) |
  |
|
25-20116 - Grommet - Priced Individually [ More info ]
|
| #5 | 37-28988A 1 | DECAL SET, TOP COWL (COLORED ENGINES) - NOT AS SHOWN (1,1,,,,, required per assembly) |
  |
|
37-28988A 1 - Decal Set,NLA [ More info ] Unavailable |
| #5 | 37-28989A 1 | DECAL SET, TOP COWL (WHITE ENGINES) - NOT AS SHOWN (1,1,,,,, required per assembly) |
  |
37-28989A 1 - Decal Set [ More info ] Unavailable |
|
  |
37-29834A 1 - Decal Set [ More info ] Unavailable |
|
  |
|
37-46023A 1 - Decal Set,NLA [ More info ] Unavailable |
| #5 | 37-29834A 1 | DECAL SET, TOP COWL (NOT AS SHOWN) (,,1,1,,, required per assembly) |
| #5 | 37-31121A 1 | DECAL SET, TOP COWL (,,,,1,1,1 required per assembly) |
  |
37-31121A 1 - Decal Set [ More info ] Unavailable |
|

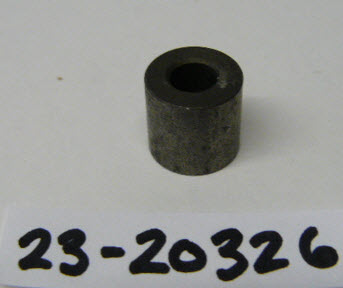

| #6 | 23-20326 | SPACER, TOP COWL STUD (2,2,2,2,2, required per assembly) |
  |
|
23-20326 - Spacer, NLA [ More info ]
|
| #7 | 12-20346 | WASHER, TOP COWL STUD (3/4" O.D.) (4,4,4,4,4, required per assembly) |
  |
12-20346 - Washer, 3/4 O.D. [ More info ] Unavailable |
|
  |
|
12-69057 - Washer, (.281 X .734 X .063) [ More info ]
|
| #8 | 12-20028 | WASHER, TOP COWL STUD (1/16" THICK) (4,4,4,4,4, required per assembly) |
  |
|
12-20028 - Washer, (.265 X .437 X .060) [ More info ]
|
| #8 | 12-20583 | WASHER, TOP COWL STUD (1/32" THICK) (4,4,4,4,4, required per assembly) |
  |
|
12-20583 - Washer - Priced Individually [ More info ]
|
| #9 | 11-20361 | NUT, TOP COWL FASTENING (4,4,4,4,4, required per assembly) |
  |
|
|
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|
| #10 | 20155 | RETAINER, STARTER SPRING (1,1,1,1,1, required per assembly) |
  |
|
20155 - Retainer, Starter Spring [ More info ]
|
| #11 | 24-29340A 1 | SPRING, STARTER REWIND (1,1,1,1,1, required per assembly) |
  |
24-29340A 1 - Spring, Starter Rewind [ More info ] Unavailable |
|
  |
24-29340T 1 - Recoil Spring [ More info ] Unavailable |
|
  |
|
24-29340T02 - Recoil Spring, NLA [ More info ] Unavailable |
  |
|
18-6506 - Rewind Spring 24-29340A1 [ More info ]
|
| #12 | 23-28912 | BUSHING, SPRING GUIDE (1,1,1,1,1, required per assembly) |
  |
|
23-28912 - Bushing, NLA [ More info ]
|
| #13 | 50-28908 | SHEAVE ASSEMBLY (1,1,1,1,1, required per assembly) |
  |
|
50-28908 - Sheave, NLA [ More info ]
|
| #13 | 50-30994 | SHEAVE ASSEMBLY (,,,,,,1 required per assembly) |
  |
|
5030994 - SHEAVE,NLA [ More info ] Unavailable |
| #14 | 20162 | PAWL, STARTER (3,3,3,3,3, required per assembly) |
  |
|
20162 - Starter Pawl - Priced Individually [ More info ]
|
| #14 | 30596 | PAWL, STARTER (,,,,,,3 required per assembly) |
  |
|
30596 - Starter Pawl, NLA [ More info ]
|
| #15 | 13-29402 | WASHER, WAVE-STARTER PAWL (3,3,3,3,3, required per assembly) |
  |
|
13-29402 - Wave Washer - Priced Individually [ More info ]
|
| #15 | 13-30597 | WASHER, WAVE-STARTER PAWL (,,,,,,3 required per assembly) |
  |
13-30597 - Wave Washer - Priced Individually [ More info ] Unavailable |
|
  |
|
13-36206 - Wave Washer - Priced Individually [ More info ] Unavailable |
| #16 | 23-28919 | BUSHING, NYLON-SHEAVE SHAFT SPACER (1,1,1,1,1, required per assembly) |
  |
|
23-28919 - Bushing , NLA [ More info ]
|
| #17 | 23-28911 | SPACER, SHEAVE SHAFT (1,1,1,1,1, required per assembly) |
  |
23-28911 - Spacer - Sheave Shaft [ More info ] Unavailable |
|
  |
|
45477A 1 - Shaft Assembly, NLA [ More info ] Unavailable |
| #18 | 26179 | RETAINER, WAVE WASHER (1,1,1,1,1, required per assembly) |
  |
|
26179 - Retainer, NLA [ More info ]
|

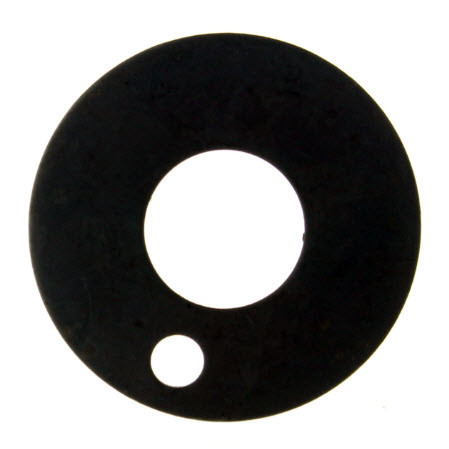

| #19 | 12-26180 | WASHER, WAVE WASHER RETAINER (1,1,1,1,1, required per assembly) |
  |
|
12-26180 - Washer, Wave, NLA [ More info ]
|
| #20 | 13-20160 | WASHER, WAVE-RETAINER TENSION (1,1,1,1,1, required per assembly) |
  |
|
13-20160 - Wave Washer - Priced Individually [ More info ]
|
| #21 | 20164 | PLATE, RETAINER STARTER PAWL (1,1,1,1,1, required per assembly) |
  |
|
20164 - Plate Retainer, Starter Pawl [ More info ]
|
| #21 | 30595 | PLATE, RETAINER STARTER PAWL (,,,,,,1 required per assembly) |
  |
|
30595 - Retainer Starter Pawl Plate [ More info ]
|
| #22 | 28913 | SHAFT, SHEAVE (1,1,1,1,1, required per assembly) |
  |
28913 - Shaft [ More info ] Unavailable |
|
| #23 | 50-28985A 1 | STARTER CABLE ASSEMBLY (1,1,1,1,1, required per assembly) |
  |
50-28985A 1 - ROPE Note: Priced Individually [ More info ] Unavailable |
|
  |
50-28985A 2 - Starter Rope Assembly [ More info ] Unavailable |
|
  |
50-12066A 9 - Starter Rope , Priced Individually [ More info ] Unavailable |
|
  |
50-12066Q 9 - Starter Rope , Priced Individually [ More info ] Unavailable |
|
  |
|
50-12066Q10 - Starter Rope - Priced Individually [ More info ]
|
  |
|
18-4915 - Pull Rope, 50-12066Q9 [ More info ]
|
  |
|
50-12066K10 - Starter Rope - Priced Individually [ More info ]
|
| #24 | 28747 | HANDLE, STARTER CABLE (1,1,1,1,1, required per assembly) |
  |
|
28747 - Starter Cable Handle, NLA [ More info ]
|
| #25 | 28748 | RETAINER, STARTER CABLE AND HANDLE (1,1,1,1,1, required per assembly) |
  |
|
28748 - Starter Cable Handle Retainer - Priced Individually [ More info ]
|
  |
77997A 1 - Retainer - Priced Individually [ More info ] Unavailable |
|
  |
|
79470A 1 - Rope Start Handle and Retainer [ More info ]
|
  |
|
30782 - Starter Cable Handle [ More info ]
|
| #26 | 28944 | HANDLE, TOP COWL (1,1,1,1,1, required per assembly) |
  |
|
28944 - HANDLE,NLA [ More info ] Unavailable |
| #27 | 10-29199 | SCREW, HANDLE TO TOP COWL (,,2,2,2,2, required per assembly) |
  |
|
10-29199 - SCREW,NLA [ More info ] Unavailable |
| #27 | 10-28667 | SCREW, HANDLE TO TOP COWL (2,2,,,,, required per assembly) |
  |
|
10-28667 - Screw - Priced Individually [ More info ]
|
| #28 | 10-22421 | SCREW, HANDLE TO TOP COWL (1,1,1,1,1, required per assembly) |
  |
10-22421 - Screw, NLA [ More info ] Unavailable |
|
  |
|
10-56500 - Screw, NLA [ More info ]
|
| #30 | 28967 | SCREEN, VENT-TOP COWL (1,1,1,1,1, required per assembly) |
  |
|
28967 - Vent Screen, Top Cowl, NLA [ More info ] Unavailable |
| #31 | 10-29221 | SCREW, VENT SCREEN TO TOP COWL - SEE NOTE #1 BELOW (4,4,4,4,4, required per assembly) |
  |
10-29221 - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-26668 - Screw, NLA [ More info ]
|
| #32 | 14-20165 | TAB WASHER, SHEAVE SHAFT NUT (1,1,1,1,1, required per assembly) |
  |
|
14-20165 - Tab Washer - Priced Individually [ More info ]
|
| #33 | 11-20166 | NUT, SHEAVE SHAFT (LEFT HAND THREAD) (1,1,1,1,1, required per assembly) |
  |
|
11-20166 - Nut, Sheave Shaft ( Left Hand Thread) [ More info ]
|

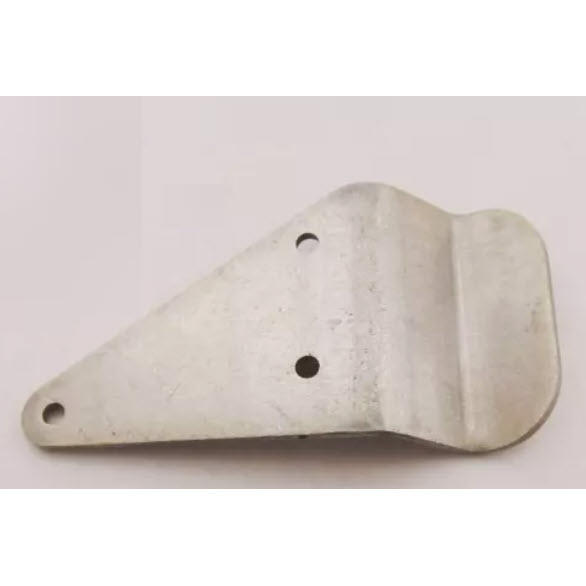

| #34 | 30045 | PLATE, ROPE GUIDE (SEE NOTE #2 BELOW) (,,1,1,1,1, required per assembly) |
  |
|
30045 - Plate [ More info ] Unavailable |
| #35 | 10-28642 | SCREW, DRIVE-ROPE GUIDE PLATE TO TOP COWL (,,3,3,3,3, required per assembly) |
  |
|
10-28642 - Screw - Priced Individually [ More info ]
|
