Parts for Mercury Mark & Kiekhaefer Mark 35A Magneto Adaptor & Pilot Assembly

Revise Search: All Models > Mark 35A > All Serial Numbers > Magneto Adaptor & Pilot Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	13-26996	LOCKWASHER, PULLEY CLAMPING SCREW (1,1,1,1,,, required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#	12-20533	WASHER, MAGNETO STOP FASTENING SCREW (2,2,,,,, required per assembly) SERIAL 00000000-01231089
		12-20533 - Washer, 9/16 Inch O.D. [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#	27942A 1	MAGNETO STOP ASSEMBLY (1,1,,,,, required per assembly) SERIAL 00000000-01231089
		27942A 1 - Stop Assembly, NLA [ More info ] Unavailable
#	29321A 5	MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE (1,1,,,,, required per assembly) SERIAL 01231090-09999999
		29321A 5 - PILOT ASSY,NLA [ More info ] Unavailable
#	13-26992	LOCKWASHER, ADAPTOR AND PILOT FASTENING SCREW (4,4,4,4,,, required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#	10-28635	SCREW, THROTTLE STOP PLATE TO ADAPTOR (2,2,,,,, required per assembly)
		10-28635 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#	26597	BUMPER, RUBBER-MAGNETO STOP (1,1,,,,, required per assembly) SERIAL 00000000-01231089
		26597 - Rubber Bumper, NLA [ More info ] Unavailable
#	29321A 3	MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE (,,1,1,1,1, required per assembly)
		29321A 3 - PILOT ASSY [ More info ] Unavailable
		29321A 7 - PILOT ASSY,NLA [ More info ] Unavailable
#	27953A 3	MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE (1,1,,,,, required per assembly) SERIAL 00000000-01231089
		27953A 3 - PILOT ASSY [ More info ] Unavailable
#1	394-2271A 2	MAGNETO ASSEMBLY, COMPLETE (1,1,1,1,1, required per assembly)
		394-2271A 2 - MAGNETO,NLA [ More info ] Unavailable
#2	45-27951	SHAFT, MAGNETO DRIVE (1,1,1,1,1, required per assembly)
		45-27951 - Drive Shaft, NLA [ More info ] Unavailable
#3	27953A 1	MAGNETO PILOT ASSEMBLY (1,1,,,,, required per assembly) SERIAL 00000000-01231089
		27953A 1 - PILOT ASSY [ More info ] Unavailable
		29321A 1 - PILOT ASSY [ More info ] Unavailable
		39560A 1 - Pilot Assembly, NLA [ More info ] Unavailable
#3	29321A 1	MAGNETO PILOT ASSEMBLY (1,1,1,1,1, required per assembly) SERIAL 01231090-09999999
#4	30-20066	BEARING, BALL-MAGNETO PILOT (1,1,1,1,1, required per assembly)
		30-20066 - Ball Bearing [ More info ] Unavailable
#5	24-27944	SPRING, HORSESHOE-MAGNETO PILOT (1,1,1,1,1, required per assembly)
		24-27944 - Spring, Horseshoe - Disributor Housing,NLA [ More info ] $5.43 $4.60 6 In Stock.
#6	17-27962	PIN, ANCHOR-AHORSESHOE SPRING TO PILOT (1,1,1,1,1, required per assembly)
		17-27962 - Anchor Pin, NLA [ More info ] $4.35 $3.68 10 In Stock.
#7	12-29245	WASHER, HORSESHOE SPRING TO ANCHOR PIN (1,1,1,1,1, required per assembly)
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#8	27946A 1	ECONOMIZER COLLAR AND PIN ASSEMBLY (1,1,1,1,1, required per assembly)
		27946A 1 - Collar Assembly, NLA [ More info ] Unavailable
#9	17-27961	PIN, ECONOMIZER COLLAR-SPRING RETAINER (1,1,1,1,1, required per assembly)
		17-27961 - Roll Pin, NLA [ More info ] $1.50 $1.28 6 In Stock.
#10	22-25094	FITTING, GREASE-ECONOMIZER COLLAR (1,1,1,1,1, required per assembly)
		22-25094 - Fitting, NLA [ More info ] $1.88 $1.59 10 In Stock.
#11	27945A 1	THROTTLE ACTUATOR ASSEMBLY (1,1,,,,, required per assembly) SERIAL 00000000-01231089
		27945A 1 - Actuator Assembly [ More info ] Unavailable
		29557A 1 - Actuator [ More info ] Unavailable
		38230A 1 - Actuator Assembly, NLA [ More info ] $7.61 $6.45 4 In Stock.
#11	29252A 1	THROTTLE ACTUATOR ASSEMBLY (1,1,,,,, required per assembly) SERIAL 01231090-09999999
		29252A 1 - Actuator [ More info ] Unavailable
#11	29557A 1	THROTTLE ACTUATOR ASSEMBLY (,,1,1,1,1, required per assembly)
#12	23-26602	BUSHING, NYLON-THROTTLE ACTUATOR (2,2,,,,, required per assembly)
		23-26602 - Bushing, NLA [ More info ] $2.45 $2.08 10+ In Stock.
#13	10-20665	SCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR (2,2,2,2,2, required per assembly)
		10-20665 - Screw, NLA [ More info ] $2.49 $2.11 10+ In Stock.
#14	12-20128	WASHER, THROTTLE ACTUATOR SCREW (2,2,2,2,2, required per assembly)
		12-20128 - Washer - Priced Individually [ More info ] $0.61 6 In Stock.
		12-847883 - Washer, (.192 X .375 X .033) [ More info ] $4.30 $3.44 7 In Stock.
#15	27947	SWIVEL, LINKAGE-ECONOMIZER COLLAR (1,1,1,1,1, required per assembly)
		27947 - Swivel [ More info ] $6.67 $5.65 10+ In Stock.
#16	25996A 1	SWIVEL AND LINK ROD ASSEMBLY (1,1,1,1,1, required per assembly)
		25996A 1 - Link Rod Assembly [ More info ] $11.11 $9.41 10+ In Stock.
#17	30043	ADAPTOR, MAGNETO (1,1,1,1,1, required per assembly)
		30043 - Adaptor [ More info ] Unavailable
		30043A 1 - Adaptor Assembly [ More info ] Unavailable
		66856A 1 - Adaptor Assembly, NLA [ More info ] $20.00 $16.94 8 In Stock.
#19	12-27939	WASHER, MAGNETO PILOT (1,1,1,1,1, required per assembly)
		12-27939 - Washer, Distributor Adaptor, NLA [ More info ] $5.54 $4.70 10+ In Stock.
#21	14-27959	WASHER, WAVE-MAGNETO BALL BEARING TENSION (1,1,1,1,1, required per assembly)
		13-27959 - Wave Washer, NLA [ More info ] $7.24 $6.13 10 In Stock.
#22	27955	CAP, MAGNETO ADAPTOR AND PILOT FASTENING (1,1,1,1,1, required per assembly)
		27955 - Cap, NLA [ More info ] $4.00 $3.39 10+ In Stock.
#23	10-28063	SCREW, ADAPTOR AND PILOT TO MANGETO (4,4,4,4,,, required per assembly)
		10-28063 - Screw, NLA [ More info ] Unavailable
		10-69054 - Screw, NLA [ More info ] $1.36 $1.16 10+ In Stock.
#23	10-30110	SCREW, ADAPTOR AND PILOT TO MANGETO (,,,,4,4,4 required per assembly)
		10-30110 - Screw, NLA [ More info ] $1.36 $1.16 10 In Stock.
#24	10-22040	SCREW, ADAPTOR AND PILOT TO CRANKCASE (3,3,3,3,3, required per assembly)
		10-22040 - Screw - Priced Individually [ More info ] Unavailable
		10-69097 - Screw [ More info ] Unavailable
		10-78841 - Bolt, NLA [ More info ] $1.96 6 In Stock.
#25	12-20084	WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW (3,3,3,3,3, required per assembly)
		12-20084 - Washer, (.328 X .562 X .062) [ More info ] $3.05 10+ In Stock.
#26	11-20083	NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW (3,3,3,3,3, required per assembly)
		11-20083 - Nut, Starter Solenoid Terminal (5/16X24) [ More info ] $1.22 10+ In Stock.
		11-22053 - Nut (5/16x24) [ More info ] $0.20 10+ In Stock.
#27	27943	PLATE, THROTTLE STOP (1,1,,,,, required per assembly) SERIAL 00000000-01231089
		27943 - Plate [ More info ] $2.00 $1.69 2 In Stock.
#27	29277	PLATE, THROTTLE STOP (1,1,1,1,1, required per assembly) SERIAL 01231090-09999999
		29277 - PLATE [ More info ] Unavailable
		53458 - Plate [ More info ] $8.00 $6.78 8 In Stock.
#28	37-29315	DECAL, THROTTLE STOP PLATE (1,1,1,1,1, required per assembly) SERIAL 01231090-09999999
		37-29315 - DECAL,NLA [ More info ] Unavailable
#29	10-24933	SCREW, THROTTLE STOP ADJUSTING (3,3,3,3,3, required per assembly) 2 EACH REQUIRED WITH A-27943 PLATE
		10-24933 - Screw, NLA [ More info ] Unavailable
#30	11-20088	NUT, THROTTLE STOP ADJUSTING SCREW (3,3,3,3,3, required per assembly) 2 EACH REQUIRED WITH A-27943 PLATE
		11-20088 - Nut (.250X28) [ More info ] $3.01 $2.56 10+ In Stock.
#31	26852	CAP, NYLON-ADJUSTING SCREW (3,3,3,3,3, required per assembly) 2 EACH REQUIRED WITH A-27943 PLATE
		26852 - Nylon Cap [ More info ] $3.99 4 In Stock.
#32	10-29197	SCREW, THROTTLE STOP PLATE TO ADAPTOR (,,2,2,2,2, required per assembly)
		10-29197 - Screw/LockWasher [ More info ] Unavailable
		10-69035 - Screw/LockWasher [ More info ] $1.90 $1.52 10+ In Stock.
#33	28-28657	KEY, MAGNETO DRIVING (1,1,1,1,1, required per assembly)
		28-28657 - Key, NLA [ More info ] $5.19 10+ In Stock.
#34	23-27957	SPACER, PULLEY TO MAGNETO ADAPTOR CAP - OLD STYLE (1,1,1,1,1, required per assembly)
		23-27957 - Spacer, NLA [ More info ] Unavailable
#35	24807	PULLEY, DRIVEN - OLD STYLE (1,1,1,1,1, required per assembly)
		24807 - Driven Pulley [ More info ] $0.95 1 In Stock.
		29783A 2 - Pulley Assembly, NLA [ More info ] Unavailable
#36	20136	FLANGE, DRIVEN PULLEY - OLD STYLE (1,1,1,1,1, required per assembly)
		20136 - Flange, NLA [ More info ] $15.54 $13.17 10+ In Stock.
#37	29784	HUB, DRIVEN PULLEY - NEW STYLE-SEE NOTE BELOW (,,1,1,1,1, required per assembly)
		29784 - Hub, NLA [ More info ] $7.82 10+ In Stock.
#38	29783A 1	DRIVEN PULLEY ASSEMBLY - NEW STYLE-SEE NOTE BELOW (,,1,1,1,1, required per assembly)
		29783A 1 - Pulley Assembly, NLA [ More info ] $9.66 $8.18 10+ In Stock.
#39	17-24873	ROLL PIN, FLANGE LOCATING - NEW STYLE-SEE NOTE BELOW (,,2,2,2,2, required per assembly)
		17-24873 - Pin, Roll - Flange [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#40	29785	FLANGE, DRIVEN PULLEY - NEW STYLE-SEE NOTE BELOW (,,1,1,1,1, required per assembly)
		29785 - Flange, NLA [ More info ] $2.41 $2.05 10+ In Stock.
#41	12-20138	WASHER, PULLEY CLAMPING SCREW (1,1,1,1,1, required per assembly)
		12-20138 - Washer, Pulley Screw, NLA [ More info ] $7.18 10 In Stock.
#42	10-29240	SCREW, PULLEY CLAMPING (1,1,1,1,1, required per assembly)
		10-29240 - Screw - Priced Individually [ More info ] Unavailable
		10-32228 - Screw - Priced Individually [ More info ] $1.80 $0.37 10+ In Stock.
#43	20140	BELT, TIMING (1,1,1,1,1, required per assembly)
		20140 - Timing Belt [ More info ] Unavailable
#44	27949	ROD, LIN-UPPER (1,1,1,1,1, required per assembly)
		27949 - Link Rod, NLA [ More info ] Unavailable
#45	11-25168	NUT, UPPER LINK ROD ADJUSTING (1,1,1,1,1, required per assembly)
		11-25168 - Nut (1/4-28) NLA [ More info ] $1.77 $1.49 10+ In Stock.
#46	27948	SWIVEL, UPPER AND LOWER LIND RODS (3,3,3,3,3, required per assembly)
		27948 - Swivel [ More info ] $8.44 $7.15 10+ In Stock.
#47	28061	LEVER, LINKAGE-UPPER (1,1,1,1,1, required per assembly)
		28061 - Lever [ More info ] Unavailable
#48	27941	LEVER, LINKAGE-LOWER (1,1,1,1,1, required per assembly)
		27941 - Lever [ More info ] Unavailable
#49	27950	ROD, LIN-LOWER (1,1,1,1,1, required per assembly)
		27950 - Link Rod, NLA [ More info ] $40.00 $33.88 10+ In Stock.
#50	27940	SHAFT, VERTICAL (1,1,1,1,1, required per assembly)
		27940 - SHAFT,NLA [ More info ] Unavailable
#51	23-22981	BUSHING, NYLON-VERTICAL SHAFT (2,2,2,2,2, required per assembly)
		23-22981 - Bushing, NLA [ More info ] $4.13 10 In Stock.
#52	17-25870	ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS (3,3,3,3,3, required per assembly)
		17-25870 - Pin -roll - Priced Individually [ More info ] $0.20 $0.11 10+ In Stock.
#54	11-20361	NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET (3,3,3,3,3, required per assembly)
		118267089 [ More info ] $1.00 10+ In Stock.
		11-826708 9 - Nut - Priced Individually [ More info ] $1.50 10 In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#55	10-25781	SCREW, SET-LINKAGE LEVER (2,2,2,2,2, required per assembly)
		10-25781 - SCREW,NLA [ More info ] $1.50 $1.28 10+ In Stock.
#56	12-25866	WASHER, VERTICAL SHAFT-CENTER (1,1,1,1,1, required per assembly)
		12-25866 - WASHER,NLA [ More info ] $1.25 $1.06 6 In Stock.
#57	33-20127	SPARK PLUG (4,4,4,4,4, required per assembly)
		33-20127 - SPARK PLUG Note: Priced Individually [ More info ] Unavailable
		33-813469 - NGK B6S - Priced Individually [ More info ] Unavailable
		33-813416 - PLUG BR6S @10 [ More info ] Unavailable
		B6S - NGK Spark Plug, 3510 [ More info ] $4.32 10+ In Stock.
		J8C - Champion Spark Plug ( #841) [ More info ] $3.99 $3.88 10+ In Stock.
#58	20119	PROTECTOR, SPARK PLUG (4,4,4,4,4, required per assembly)
		20119 - Protector , Priced Individually [ More info ] Unavailable
		20119A 1 - Protect Assembly - Priced Individually [ More info ] Unavailable
		47604A 1 - Protector Assembly , Priced Individually [ More info ] Unavailable
		85-71006A 1 - Protector - Priced Individually [ More info ] Unavailable
		85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ] $8.19 8 In Stock.
#59	23564	CABLE, HIGH TENSION LEAD-SPARK PLUG (4,4,4,4,4, required per assembly)
		23564 - 23564A10 [ More info ] Unavailable
		23564A10 - LEAD ASSY [ More info ] Unavailable
		52615A 1 - Lead Assembly [ More info ] Unavailable
		84-813706A46 - Cable Assembly [ More info ] Unavailable
		84-821945A46 - Cable Assembly [ More info ] $68.52 2 In Stock.
#60	25-25429	"O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER (4,4,4,4,4, required per assembly)
		25-25429 - O-Ring, High Tension Lead Cable,NLA [ More info ] Unavailable
#61	54-29425	CLIP, HIGH TENSION LEAD CABLE FASTENING (2,2,,,2,2, required per assembly)
		54-29425 - Clamp [ More info ] $2.50 $2.13 3 In Stock.
#61	54-20534	CLIP, HIGH TENSION LEAD CABLE FASTENING (,,2,2,,, required per assembly)
		54-20534 - CLIP,NLA [ More info ] Unavailable
#62	54-25231	CLIP, MERCURY SWITCH AND HARNESS LEADS (2,2,2,2,2, required per assembly)
		54-25231 - Clip, NLA [ More info ] Unavailable
#63	10-20401	SCREW, LEAD CLIP TO MAGNETO (1,1,1,1,1, required per assembly)
		10-20401 - Screw [ More info ] $1.67 $1.42 7 In Stock.
#64	22789	"D" WASHER, CLIP FASTENING SCREW (1,1,1,1,1, required per assembly)
		22789 - C Washer - Priced Individually [ More info ] $0.25 1 In Stock.
		69205 - C Washer [ More info ] Unavailable
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.

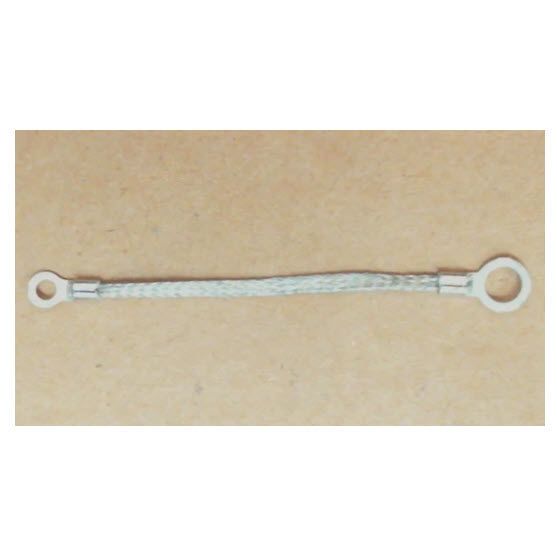

#65	394-1134A 1	GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE (1,1,1,1,1, required per assembly)
		394-1134A 1 - Ground Strap, NLA [ More info ] $8.09 7 In Stock.
